Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Model Number: | RL |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 40,000~160,000/unit |
| Packaging Details: | PE film wrapping adding with wooden case packaging |
| Delivery Time: | 45~60 working days |
| Supply Ability: | 10units/month |
| Capacity: | 5,000~30,000BPH | Bottle: | Round & Square |
|---|---|---|---|
| Label Material: | OPP, ROPP | Guarantee: | 2 Years |
| Service: | Engineers Come To Client Factory For Machine Installation | ||
| Highlight: | bottle label machine,bottle labelling machine |
||

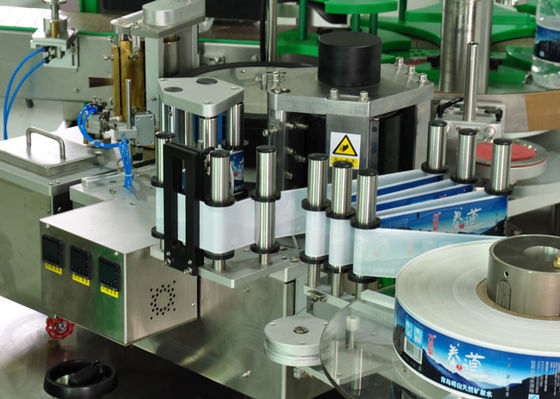

Machine function:
Position on the round bottle and square bottle to paste OPP, BOPP and paper labels which are rolling without glue. This machine will deliver labels automatically, select and cut labels, glue at both ends of each label, add labels and smooth out labels.
The machine suits for the application of mineral water, beverage, food, washing and other industries to realize labels-cutting, glues-coating and labelling for round bottles and square bottle.
Label smoothing mechanism
The label smoothing mechanism is applicable for leveling the label, which can paste the label firmer and prevent it from corrugating and loosing.
Adjusting the label smoothing panel: when bottles with their brackets are in front of the label smoothing panel, please pause the machine, release <labeling smoothing adjusting handle> and adjust forward the labeling smoothing panel until the sponge of labeling smoothing panel is pressed by bottles down to 3-5mm, and then lock <label smoothing adjusting handle>. For bottles with different diameters, please change the label smoothing panel.
| Model | SSW-0806R(PO201607007) |
| Maximum label output speed | 60m/min |
| Maximum speed | 30,000 (determined by bottle size and label length) |
| Specifications for labeling bottle | Round bottle and square bottle |
| Labeling precision | ±1mm |
| Total power | 8Kw |
| Power supply | Three phase 380V 50/60Hz |
| Air pressure | 5 Kg f/cm2 |
| Air consumption | 20L/min |
| Outside measurement (LxWxH) | About 3000mm(L)×2000mm(W)×2000 mm(H) |
| Total weight | About 2500Kg |
