Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | CGX |
| Minimum Order Quantity: | 1 set |
| Price: | $500,000-2,000,000/set |
| Packaging Details: | Wooden case |
| Delivery Time: | 90 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/year |
| Type: | Filling Machine | Application: | Beverage |
|---|---|---|---|
| Condition: | New | Driven Type: | Electric |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Packaging Material: | Wood | Packaging Type: | Bottles |
| Warranty: | 1 Year | Material: | Stainless Steel 304/316 |
| Filling Material: | Drinking Water | Function: | Blowing Filling Capping,Washing Filling Capping |
| Bottle Type: | PET Plastic Bottle | Processing Types: | Automatic Bottle Filling Line,Water,Fruit Beverage,Carbonated |
| Highlight: | filling line machine,filling and capping machine |
||
Automatic Blowing Filling Capping Combiblock for Pure/Mineral Water Production Line
Application: still water, sparkling water, carbonated drinks, juice, tea, vitamin drinks, etc.
Suitable for: PET bottles
Blowing system: rotary
Filling system: gravity filling
Production capacity: 12,000BPH-36,000BPH (500ml)
Equipment structure of blowing-filling-capping combiblock:
1. Stand
2. Rotary blow molder
3. Rotary gravity, hotfill, isobaric filler
4. Rotary capper

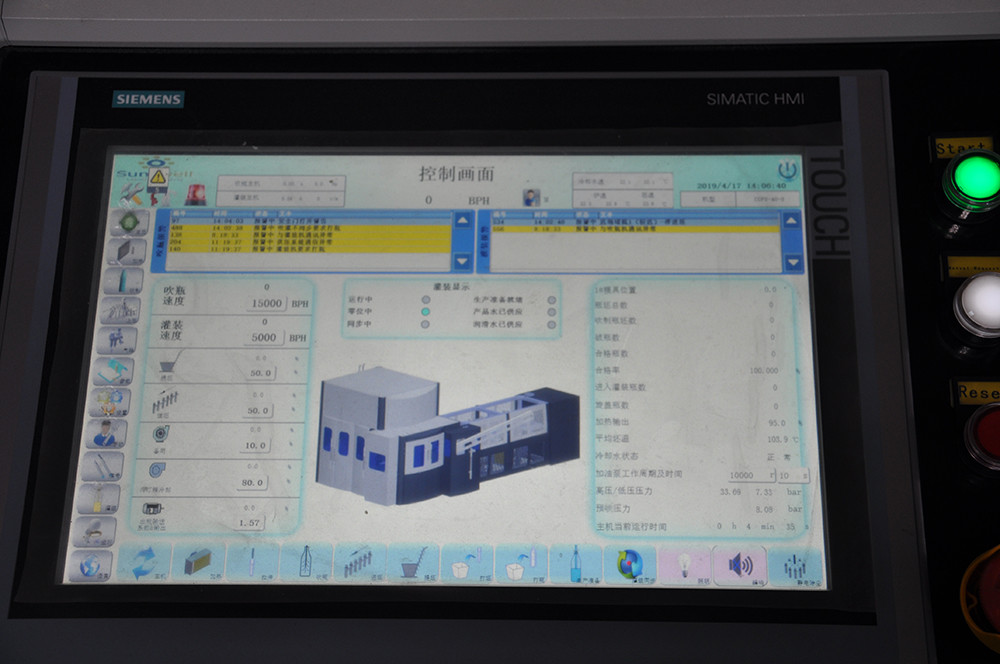

5. Control
Technical features of blowing-filling-capping combiblock:
1. High efficiency: 1,800BPH/cavity (500ml water bottle).
2. Double blowing system. Monitoring pressure change curve of each cavity during bottlle forming and providing accurate timely parameters, easier for operator to regulate technical parameters and ensure quality stability.
3. Air recyling system may save compressed air by 30-50%.
4. Adopt cam organism and accurate mechanical arm transferring technology with high speed preform and bottle feeding, avoid contamination.
5. Cam organism controls mold opening and clamping precisely with special mold clamping boost system and film mold shelf structure; independent control of blowing parameters of each cavity; malfunction diagnosing function; enhanced neck sealing stability; regulating blowing pressure; stretching bar controls accurate preform axial stretching and 1st/2nd blowing controls vertical stretching; regulating of 1st/2nd precisely ensures ideal distribution of bottle wall thickness.
6. Technical parameters like heating temperature and blowing time can be set according to different preform and bottle design.
7. Fast mold changing (within 2 hours) reduces stop time and increases production efficiency.
8. Integrated with different gravity filler or isobaric filler, suitable for production of still water or carbonated drinks.
