Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | TB |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Product Name: | Hot Melt Glue Labeller | Voltage: | 220V/380V/Customized |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Condition: | New |
| Driven Type: | Electric | Type: | Labeling Machine |
| Packaging Type: | Plastic | Application: | Food,Beverage |
| After-sales Service Provided: | Online Support,Engineers Available To Service Machinery Overseas | Packaging Material: | Wooden Case |
| Certification: | CE, SGS | Warranty: | 1 Year |
| Function: | Labeling | Material: | SUS304 |
| Highlight: | bottle label machine,bottle labelling machine |
||

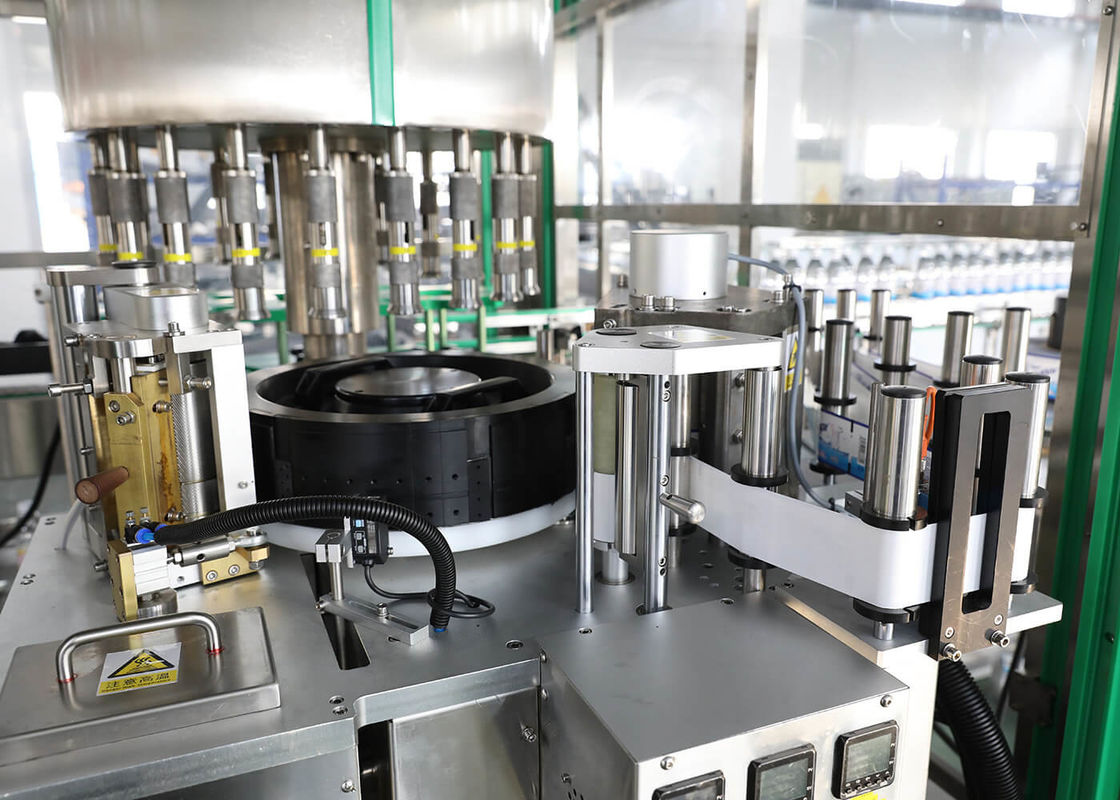

Fully Automatic Rotary Round Bottle Square Bottle Roll-Feed OPP/BOPP Film Hot Melt Glue Labeling Machine
Composition
- Main rotary wheel
- Touch-screen
- Electronic-controlled cabinet
- Label station support regulation device
- Rack- Infeed screw
- Infeed starwheel
- Label reels
- Label station
- Discharge starwheel
- Comfort label institution
- Glue supply system
1. Equipment constitutes
A: Mainframe
- SANYO servo system
- SANYO servo drive system
- SANYO motion controller
- Siemens PLC
- Siemens Color Touch-screen HMI
- Japan SUNX Digital Color Mark Sensor
- Japan SUNX Detection Sensor for coating adhesive
- Japan SUNX Photoelectric Sensor
- Japan SUNX Pressure Sensor
B: Mechanical parks
- Transportation institution: TRANSTECNO AC motor 750W (with deceleration by TRANSTECNO), inverter speed control
- Conveyor: Industrial nylon chain plate conveyor
- Mainframe transportation institution: TRANSTECNO AC motor 1.5Kw (with deceleration by TRANSTECNO)
- Sub bottle institution: Industrial worm sub bottle institution
- Into bottle institution: With worm sub bottle institution and starwheel position feeding institution to ensure the accuracy and stability of loading
- Position institution: Mechanical pre-location, using the camwheel institution to planish the bottle for label positioning
- Labeling institution: Containers are picked up by rotary wheel, labeling during the rotation.
- Supply label institution: SUNSWELL high speed servo OPP label supply system (drive by servo-motor)
- Pressing label institution: Arc brush unit
- Guided bottle institution: Adjust by double coordinate section guide rail
- Glue supply system: SUNSWELL hotmelt glue supply system (German Siemens control system) ensures the accuracy and uniformity of gluing
2. Safety part of the machine
- Safety protection: In order to keep the operator safety, when the machine is running please close the protective doors
- Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out
- Lack of bottle alarm: When lack of the bottle the machine will stop and make an alarm. The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production
- Leak of labeling alarm: To control the quality of labeling
- Pressure testing: When the pressure cannot meet the equipment requirement, the machine will stop to against bad products produce
- Vacuum testing: When the vacuum cannot meet the equipment requirement, the machine will stop to against bad products produce
- Temperature testing: When the temperature cannot meet the equipment requirement, the machine will stop to against bad products produce
Technical parameters:
| Power supply | Three-phase 380V 50 Hz 8000W |
| The total length of equipment | 3000mm(conveyor length 3000mm or can be regulate base on your product lines) |
| Equipment width | 2000mm |
| Conveyor speed | 35m/min (the speed of the transmission lines can be adjusted according to actual production) |
| The method of speed adjustment | uninterrupted - adjust rate |
| The largest Speed of labels feed | maximum speed of 100 meters labels / min |
| The largest speed of labeling | 10000 pcs/H |
| Labeling accuracy | ± 1mm |
| Integrated Labeling accuracy | ± 1mm |
| Product Size: base on client supply container | 2L Φ 100mm |
| Maximum label width | 160mm |
| The maximum length of label | 500mm |
| The maximum diameter of label | 500mm |
| Paper core diameter | 152 mm |
| Labeling glue | leading and trailing edge gluing with hot melt |
| Gluing temperature | 120~160C |
| Type of label | opp label, paper-plastic composite film label, paper label |
| Labeling workstation | 12 per cycle |
| The quantity of labeling mold | 1 set |
| Machine weight | 2000 Kg |
