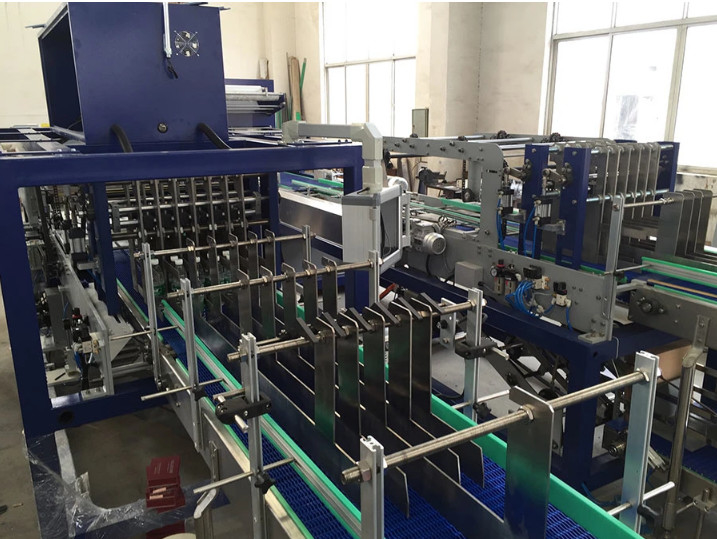

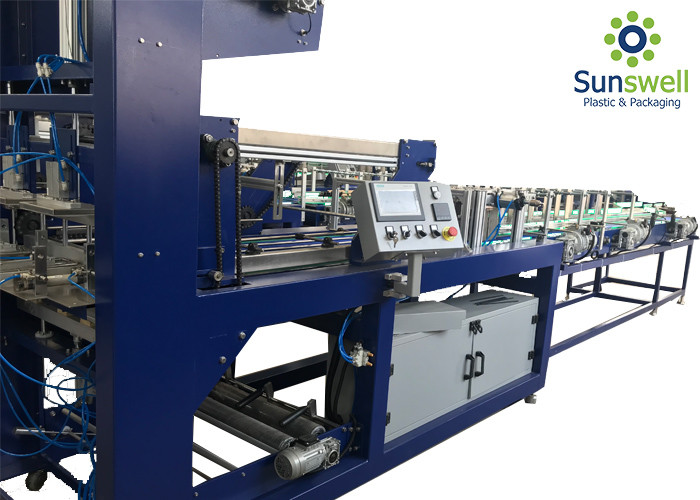

Industrial Automatic Plastic Wrapping Machine For Food Beverage Water
Applications:

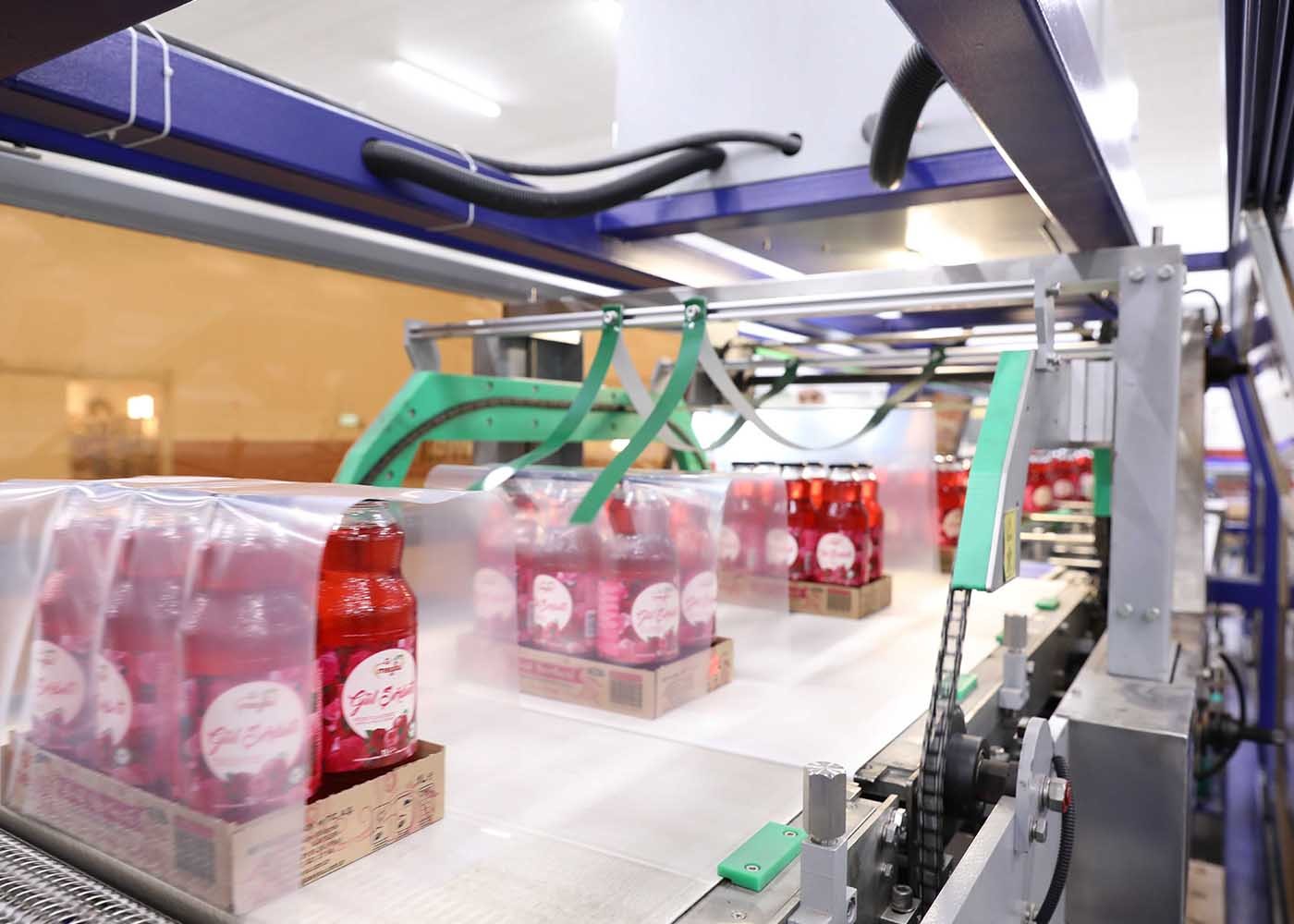

The machine if developed especially for mineral water, beverage, wine, beer, product and so on infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderliness. It can be handled as a single pushing machine when high speed demanded.
Features:
Applying imported PLC procedure automatic control, stable performance, and accurate control.
Enjoying full-automatic function of feeding, tube management, shrinkage, and cooling shape-fixing flow.
Film transportation is adopted with sensor switch control, adjustable deliver film lentgh, and can reduce wastage.
Elector motor is adopted with imported transducer to control, realizing unlimited speed regulating.
Advanced spiral wind circulating structure, three-layer insulation treatment, and enrgy conservation.
Reinforced cooling shage-fixing channel to ensure packaging products shape quickly and convenient storage and transportation.
Main technical parameters:
|
External Dimension
|
L5050*W3300*H2200 | |
| The overall size of packaging machinery |
Main Machine
|
L1180*W1080*H2370 |
|
thermo-wind Stove
|
L3890*W1050*H2040 | |
|
Cabinet
|
L1250*W780*H1100 | |
|
Total Weight
|
1.2t | |
|

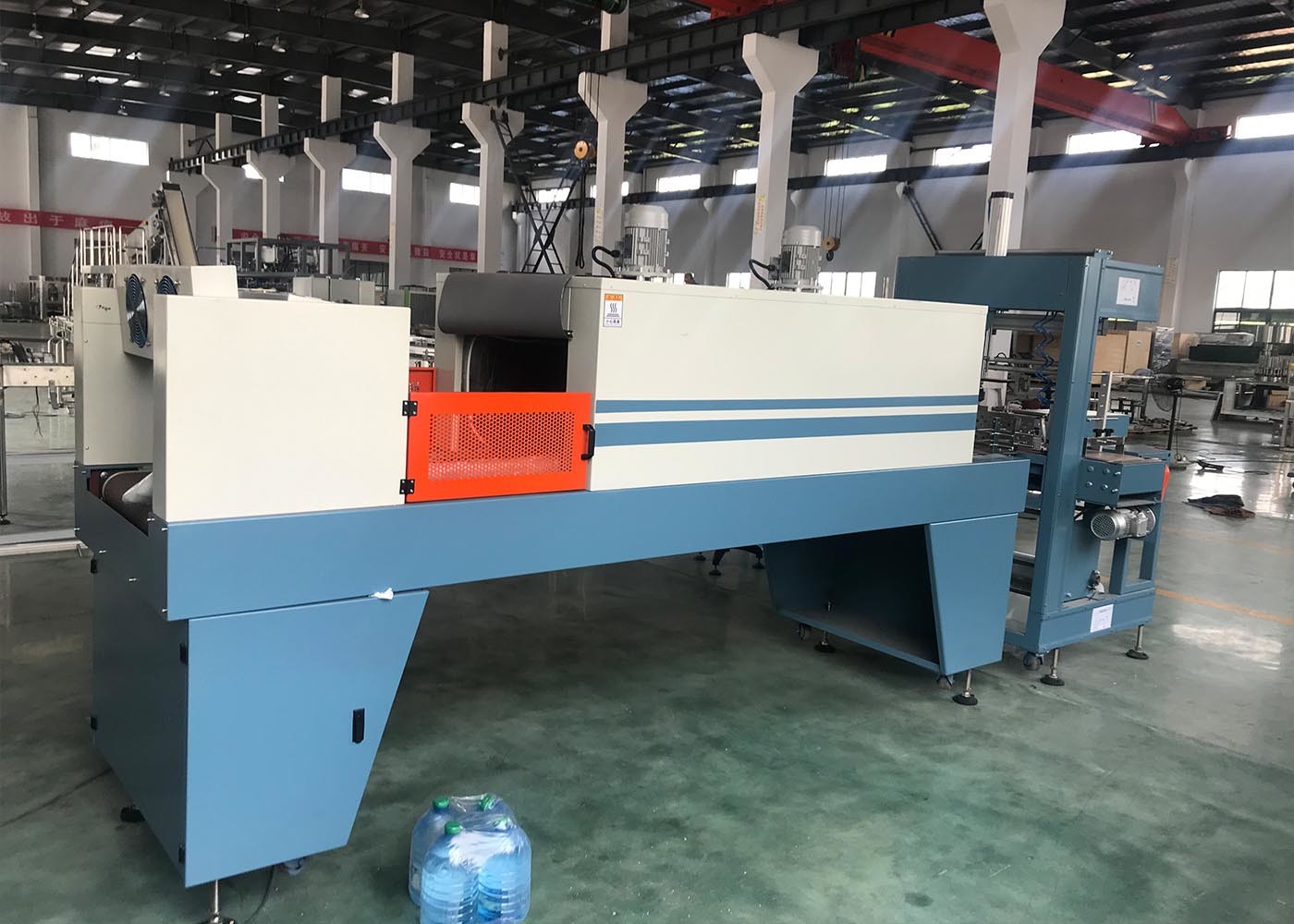

The dimension of hot thermo-wind stove
|
L3700*W920*H1800 | |
|
Max.Packing Size
|
L600*W400*H350 | |
|
Packing Speed
|
8-15 Packet | |
|
The speed of Conveyor
|
920Adjustable 200 | |
|
Working Power
|
380V 20KW | |
|
Working Pressure
|
0.6-0.8Mpa | |
|
Total Power
|
20kw | |
Main parts
|
No. |
Name |
Brand |
Region |
Remarks |
|
1 |
Pneumatic Cylinder |
Chanto |
Taiwan |
|
|
2 |
Pneumatic Components |
Airtac |
Taiwan |
|
|
3 |
PLC |
Omron |
Japan |
|
|
4 |
Button |
Tayee |
China |
|
|
5 |
Inverter |
Schneider |
France |
|
|
6 |
Relay |
Schneider |
France |
|
|
7 |
Contactor |
Schneider |
France |
|
|
8 |
Solid Relay |
Crydom |
France |
|
|
9 |
Teflon Belt |
Kaiyao |
China |
Imported material |
|
10 |
Reducer |
Halei |
China |
|
|
11 |
Photoelectric Switch |
Autonics |
Korea |
|
|
12 |
Proximity Switch |
Autonics |
Korea |
|
|
13 |
Steel Sheet |
Baosteel |
China |
Cold-rolled (1.5-2.5mm) |
|
14 |
Chain Plate |
Tuoxin |
China |
POM |
