Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | GB-20 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Name: | Wrap Around Carton Packer | Packaging Material: | Wood |
|---|---|---|---|
| Application: | Food,Beverage | Driven Type: | Electric |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Usage: | Bottles Cans Carton Box,Packing |
| Highlight: | case packing machine,film packing machine |
||

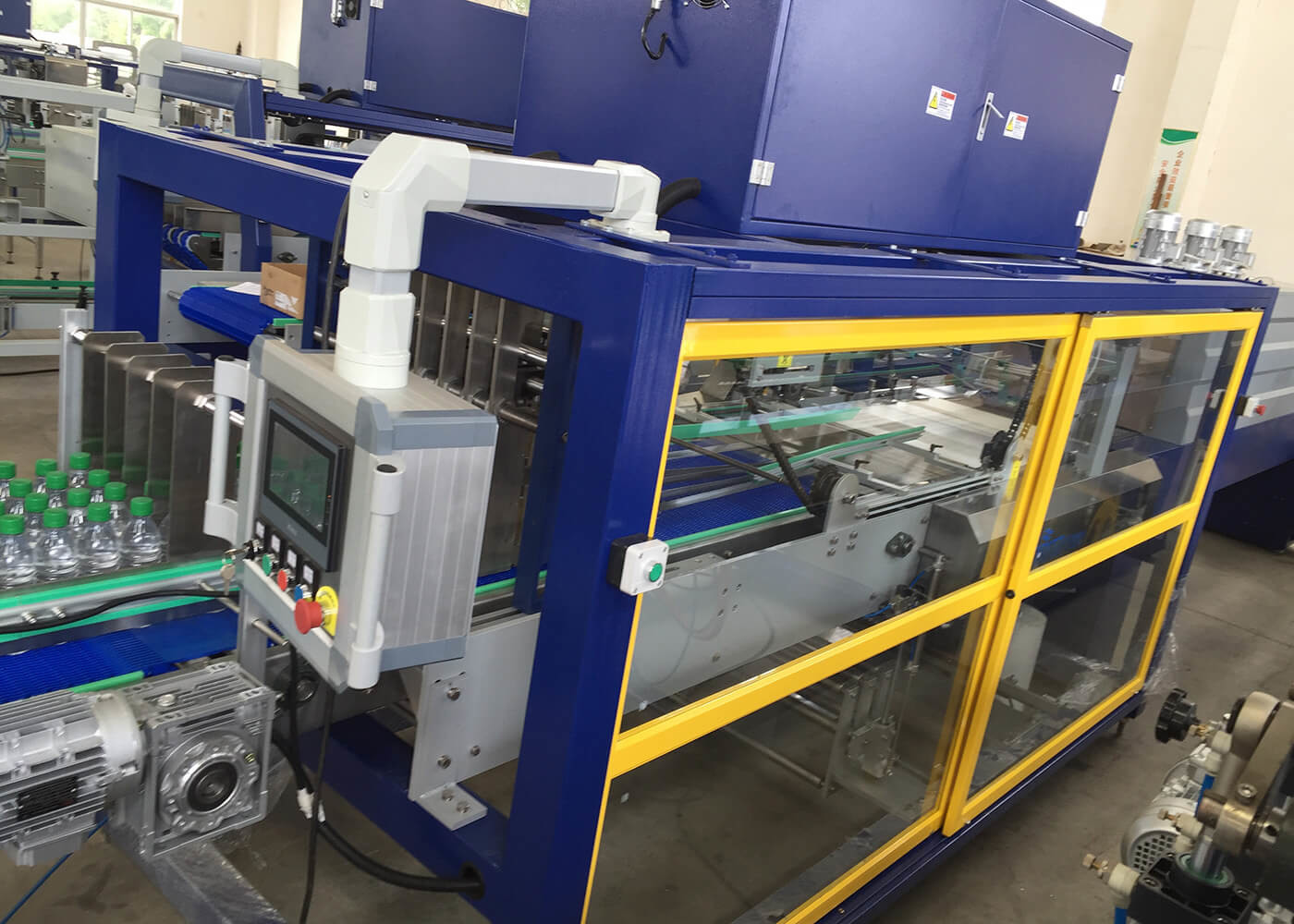

China Manufacturer Carton Wrap Round Packer Case Sealer Sealing Packing Machine
Facility technology parameter
l Capacity 20-40carton/minute,stepless continuation adjustment
l Production efficiency: about 98%
l Card board enter method: sucker collect/pickup
l Single card glue consumption quantity:2-4gram
l Package type: base on 640ml bottle, as 3*4 package or 330ml bottle -4*6package type or
as client requirement.
l Applied bottle can outside size: diameter: Dia-60~90mm Height 120~280mm
l Machine outside size: L*W*H=6285*2582*2115(mm)
l Machine used air compressor air pressure: 0.6~0.8Mpa
l gas consumption :0.1NM3/min
l Total power: 15KW
l Machine weight: 4000kg
Reduction Box/gear choose Guangzhou Europe's shi---4set
End conveyor choose SEW reducer-2set
Frequency conveyor choose Danfoss Product-2set
Photoelectric,Sensor switch choose German "P+F" company products.
Matching America NORDSON series hot glue machine-1set
Hot glue facility adopt to Japan "NORDSON" products, melting and usage temperature 150-170
degree, carton Adhesive fasten ratio 100%,and can auto adjust according to temperature
change, if temperature cannot reach, it will auto stop.
Independent vacuum bump---German "ELmo Rietschle" VLT40 product--1set
Pneumatic part is German "FESTO" pneumatic unit and vacuum absorb board component,
solenoid valve.
Main electricity element choose France Schneider product.
Main spare parts transmission bearing shaft choose America "Rexnord "
company product or similar brand.
| oversize(L/W/H) | 4500/800/2050(mm) |
| total installed capacity | 2KW |
| Main Power | AC3-380V/50HZ+G+E |
| optimal working temperature | -10degree~40degree |
| Auxiliary power supply |
24VDC |
| pressure of compressed air | 0.4~0.6Mpa |
| Consumption of compressed air | 1500L/Min |
| weight | 1000KG |
