| Name: | Wrap Around Carton Packer | Packaging Material: | Wood |
|---|---|---|---|
| Application: | Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Usage: | Bottles Cans Carton Box,Packing | Automatic Grade: | Fully-Automatic |
| Highlight: | case packing machine,film packing machine |
||

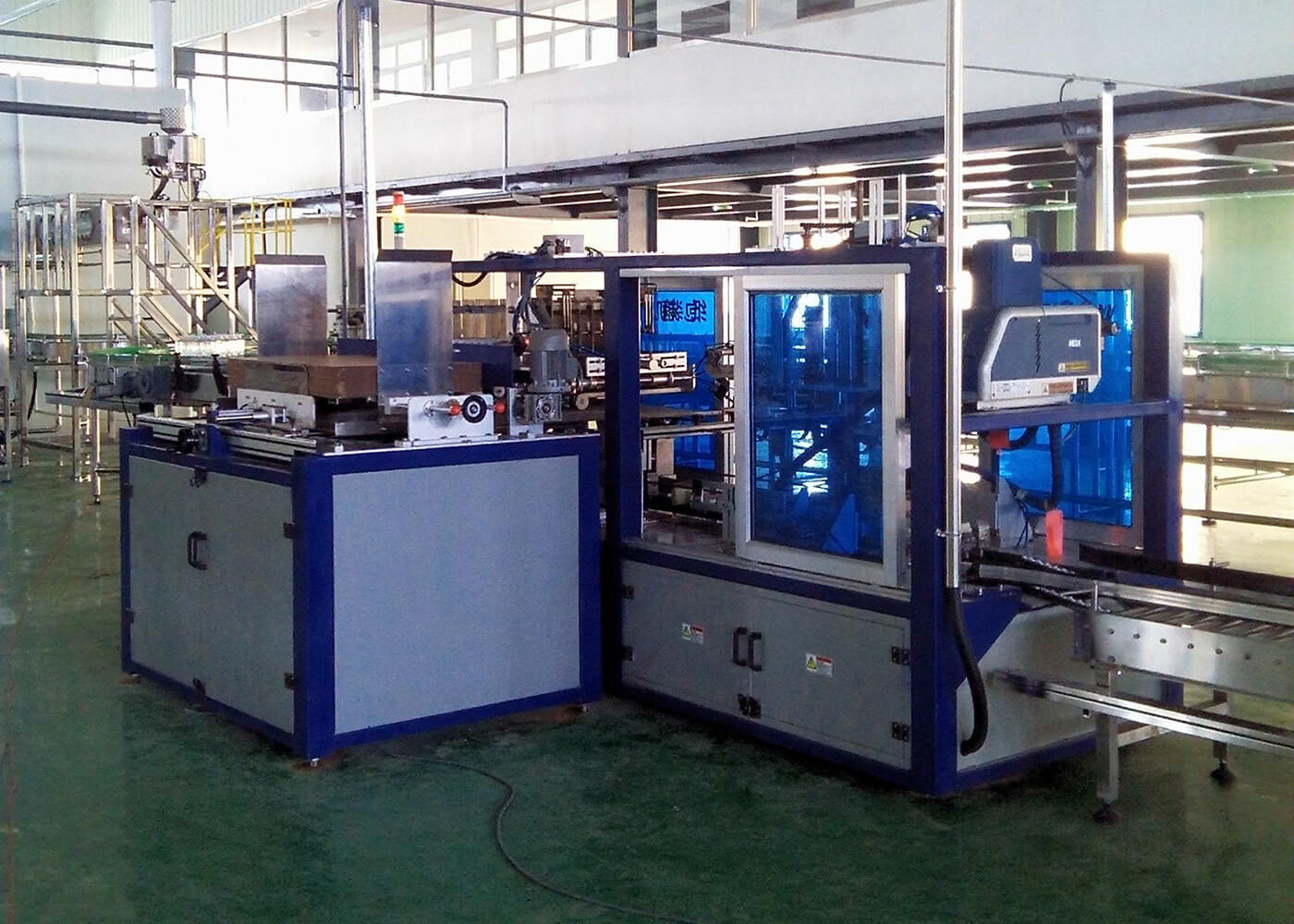

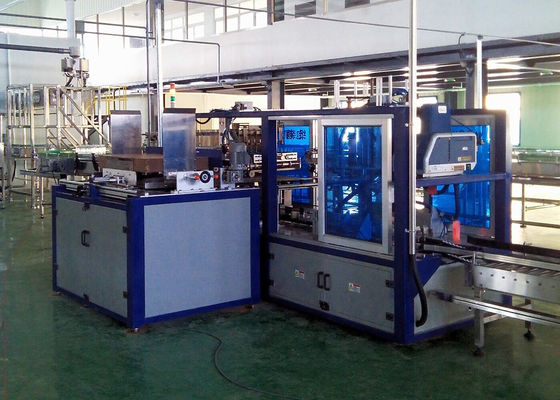

Fully Automatic Carton Erector Case Sealer Wrapping Packer for Bottling Line
1. Machine mode:RPK-03H-30
2. Capacity:30/cases/min
3. Carton dimension:From customers
4. Air pressure required:4-5kg/cm2
1. Voltage:750W(AC380V,3three phase50HZ)
2. Air consumption:450NL/min
3. Dimension:L2780×W1250×H1840MM
4. Adhesive plaster size:2";2 .5";3"Alternative
5. Machine body:
1) 50×100×3t,2t,50x100x3t flat steel tube shaped, 2t cover and a surface of the paint processed
2) SUS304 Parts contact with cartons are material of stainless steel sus304
3) ,SUJ2Body part which moves straight with a linear axis and the linear bearing arrangements, made of hard Chrome Plating and grinding treatment of SUJ2
6. control part : electric control system of Japan - oriented, the Mitsubishi PLC , electrical eyes, L/S, omron proximity switch, electrical cabinet panel buttons and France signal system TE.Motor from Taiwan Dongyuan
7. :SMC,,,(),;Gas controls: AIR TAC(Taiwan) vacuum generator, suckers,convum(Japan) Rodless cylinder(Japan or USA)
8. Adhesive plaster:OPP×1000Y.
Technical parameters
| Mode | ZXJ24 | |
| Machine operating time | 9/ secs per time | |
| Grasped box every move | big case(4×6plastic case):3/cases per time | |
| small case(3×4plastic case):6/cases per time | ||
Rated capacity |
big case(4×6plastic case):24000/bottles/hour | |
| big case(3×4plastic case):24000/bottles/hour | ||
| Max capacity | big case(4×6plastic case):28000/bottles/hour | |
| small case(3×4plastic case):28000/bottles/hour | ||
| Grasper | 72 | |
| Working mode | Case-in | big case(4×6):shorter side facing forward |
| small case(3×4): Longer side facing forward |
||
| Case-in channle:single channel | ||
bottle shape |
φ75×289mm(GB4544) | |
| Case | Plastic case | |
Plastic case domension |
4×6bige case:520×354×317mm(××) (L×W×H)-φ75 | |
| 3×4small case:368×276×320mm(××) (L×W×H) -φ75 | ||
| Compressed air | air source pressure0.5-0.6 Mpa | |
| working pressnre 0.3~0.6MPa,grasper0.15~0.2MPa | ||
| air consumpion4.5m3/h | ||
| Tatol power | 7.0Kw | |
| Machine dimension | Effective width of bottle conveying table :2000mm | |
| Height of conveying table :1245mm | ||
| width of case conveying channel :440mm | ||
| Height of case conveying channel :800mm | ||
| Overall dimension5300×2665×2600mm(××) | ||
| Weight | 4000Kg | |
Main configuration list
| KH107BR77DV112M4/BMG/TF/A/M3/180º | Main drive motor reducer |
SEW |
| JWB-X0.37-25D | Bottle unscrambling Stepless variable speed motor |
Ucan |
| R37-Y80M4-0.45/0.75-8P/4P-24.42-M3-180° | 1 case-in 1 geared motor |
SEW |
| R37-Y80M4-0.45/0.75-8P/4P-24.42-M3-180° | 2 case-in 2 geared motor |
SEW |
| R47-Y80M4-0.75-47.75-M6-270° | Bottle-in geared motor |
SEW |
| Air cylinder | AIRTAC | |
| Timing belt | Made in China | |
| Pneumatic FRL | FESTO | |
| air operated reversing valve | FESTO | |
| Maintenance - free bearings | IGUS |
