| Name: | Wrap Around Carton Packer | Packaging Material: | Wood |
|---|---|---|---|
| Application: | Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Usage: | Bottles Cans Carton Box,Packing | Automatic Grade: | Fully-Automatic |
| Highlight: | case packing machine,film packing machine |
||

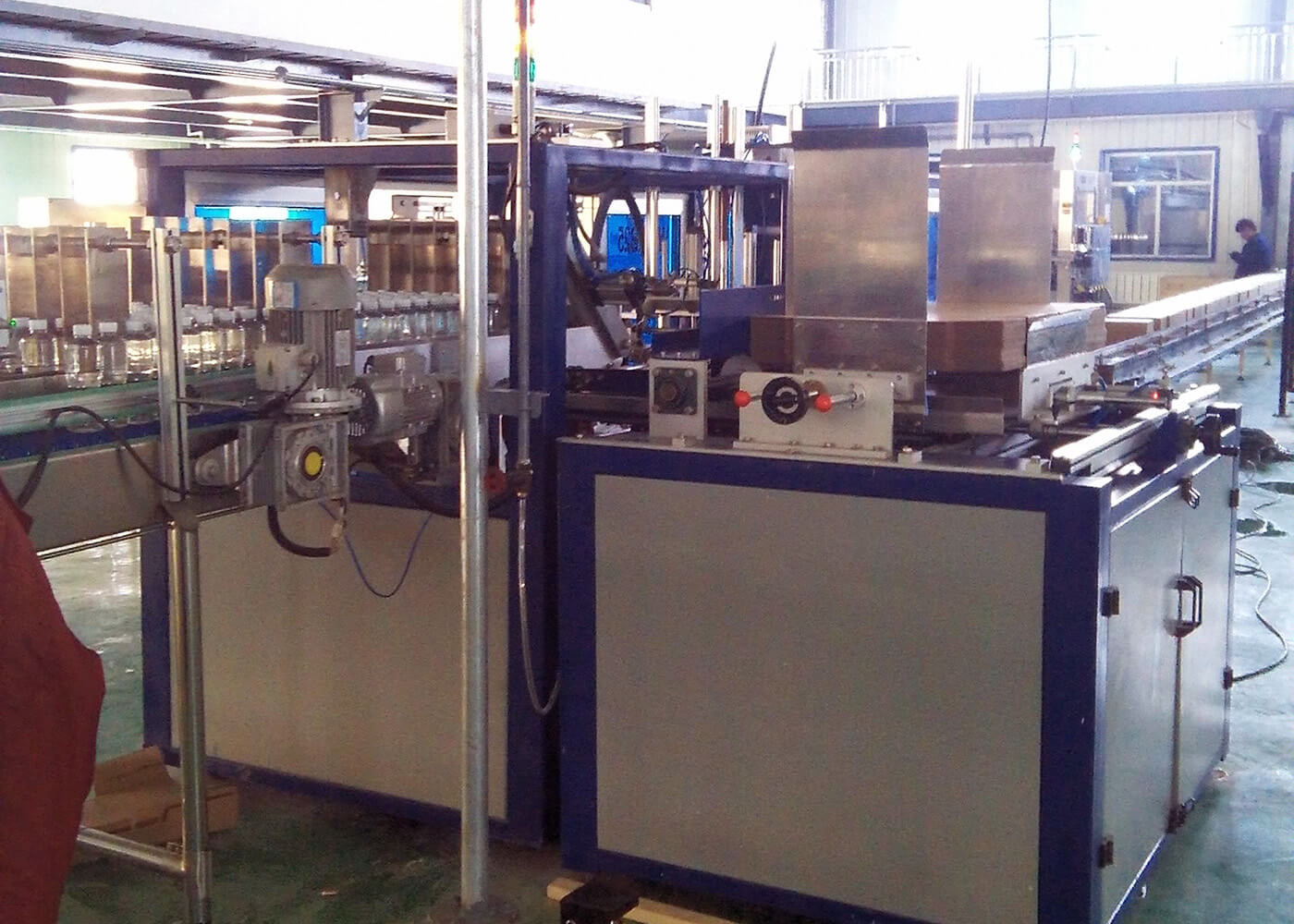

Automatic Carton Erector Machine Carton Packer and Case Sealer Machine/Carton Box Packing Machine
1. Machine name:
2. Mode: SSW-JFX25
3. Machine performance parameters
1) Max capacity: 25cartons/min.
2) Carton specofocation: 335mm*270mm*225mm
4. Other parameters
1) Dimension: 2470 mm *1225 mm *1150 mm
2) Power: 3KW
3) Voltage: 24V DC
4) Compressed air :
(a)Air pressure:0.4~0.6MPA
(b)Air pressure of nozzel:3PA
5) Weight:1.5T
5. Basic configuration:
1) SICKP+FGermany SICK or P + F photoelectric control system
2) Foshan Xinguan speed moter
3) Holland conveyor belt
4) Airtac penumatic component
6. Machine technical features:
1) Excellent selection, durable : the body, transmission components of this machine is used in large imported aluminium and stainless steel materials which can be used for heat treatment, the life is several times than domestic brands, and compared for the beverage,beer bottles are heavier, thicken stainless steel sheet metal from 2 mm to 3 mm, making the device more durable
2) High quality of electrostatic spraying process : taking into account the in the design of domestic equipment ,the fuselage are treated as paint carbon steel, and the biggest drawback of paint handling are low absorption, easy peeling, aging, easy color changing at high a temperature,manufacturers again generally paint all over after 2-3 years' usage , causing lots expense. After market research our company uses electrostatic spraying process on the fuselage, The cost is 4~5 times than handling paint, the device looks bright, high adsorption capacity after that process, Reached the processing level of imported equipment, No need to make using professional maintenance for the use ,help manufacturers to save manpower and resources.
3) Reasonable structure, easy operation and maintenance : It is composed of reasonable structure, reliable pneumatic lifting gear and advanced control technologies, high configuration level, closed operations, compliance with industrial safety requirements, solid structure, convenient operation and maintenance.
Technical parameters
| Mode | ZXJ24 | |
| Machine operating time | 9/ secs per time | |
| Grasped box every move | big case(4×6plastic case):3/cases per time | |
| small case(3×4plastic case):6/cases per time | ||
Rated capacity |
big case(4×6plastic case):24000/bottles/hour | |
| big case(3×4plastic case):24000/bottles/hour | ||
| Max capacity | big case(4×6plastic case):28000/bottles/hour | |
| small case(3×4plastic case):28000/bottles/hour | ||
| Grasper | 72 | |
| Working mode | Case-in | big case(4×6):shorter side facing forward |
| small case(3×4): Longer side facing forward |
||
| Case-in channle:single channel | ||
bottle shape |
φ75×289mm(GB4544) | |
| Case | Plastic case | |
Plastic case domension |
4×6bige case:520×354×317mm(××) (L×W×H)-φ75 | |
| 3×4small case:368×276×320mm(××) (L×W×H) -φ75 | ||
| Compressed air | air source pressure0.5-0.6 Mpa | |
| working pressnre 0.3~0.6MPa,grasper0.15~0.2MPa | ||
| air consumpion4.5m3/h | ||
| Tatol power | 7.0Kw | |
| Machine dimension | Effective width of bottle conveying table :2000mm | |
| Height of conveying table :1245mm | ||
| width of case conveying channel :440mm | ||
| Height of case conveying channel :800mm | ||
| Overall dimension5300×2665×2600mm(××) | ||
| Weight | 4000Kg | |
Main configuration list
| KH107BR77DV112M4/BMG/TF/A/M3/180º | Main drive motor reducer |
SEW |
| JWB-X0.37-25D | Bottle unscrambling Stepless variable speed motor |
Ucan |
| R37-Y80M4-0.45/0.75-8P/4P-24.42-M3-180° | 1 case-in 1 geared motor |
SEW |
| R37-Y80M4-0.45/0.75-8P/4P-24.42-M3-180° | 2 case-in 2 geared motor |
SEW |
| R47-Y80M4-0.75-47.75-M6-270° | Bottle-in geared motor |
SEW |
| Air cylinder | AIRTAC | |
| Timing belt | Made in China | |
| Pneumatic FRL | FESTO | |
| air operated reversing valve | FESTO | |
| Maintenance - free bearings | IGUS |
