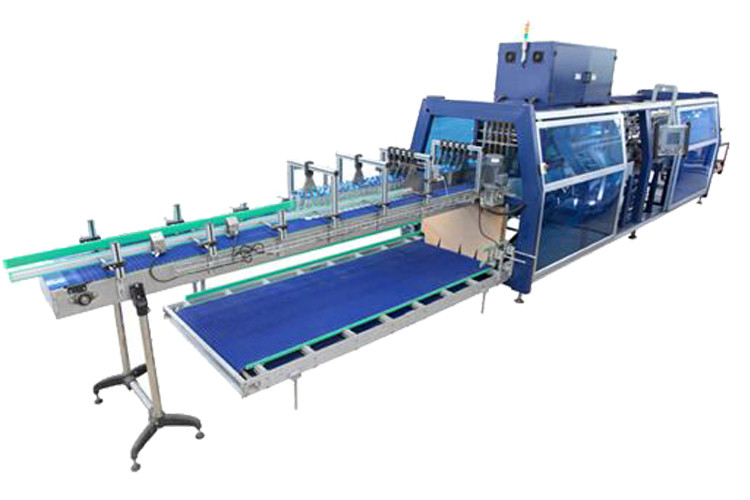

Low Noise Automatic Heat Shrink Group Packaging Wrapper Machine For Bottles Can

Automatic Heat Shrink Group Packaging Wrapper Machine for Bottles Can

Technical requirement:
1,package type:
  (1)350/500/550/600ML big bag:4×6,4×5 ;small bag,3×4,3×5 four type of package.
  (2)1L/1.5L/2L/2.5L big bag:3×3,3×4;small bag,2×2,2×3 four type f package Regarding can, we suggest adopt to package with tray , pack steadily.

3,package speed:16-20bag/min
4,meet with pre-treatment filling speed of filling machine.
  (1) 350/500/550/600ML big bag:4×6,4×5,(24000-29000b/hr),small bag:3×5,3×4,(15000-18000b/hr).
  (2)1L/1.5L/2L big bag:3×4,3×3(10000-14000b/H), small bag:2×3,2×2(5000-7000b/h).
5,package material:PE thermo shrinkage film width(200-600mm),thickness(0.03-0.12mm)

Specifications:

Applications:

• Shrink film wrapping
• Soft drink, liquor (beer, rice wine and alcohol, etc.)
• Liquid food (edible oil, vinegar and soy sauce, etc.)
• Daily commodities (detergent, shampoo and so on)

Main performance features

• Compact & artistic shape. The frame is novel, unique.
• Electronic induction feeding film, action is balanced and quickly replacing film.
• Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
• Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
• The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
• Disposition: SIEMENS, OMRON, UNIQUC, etc. advanced control component in the world, Well-equipped.

Main parts
