Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | CGF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 80 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Type: | Filling Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Name: | Mineral Water Filling Machine Pure Water Bottling Machine | Material: | SUS304/316 |
| Capacity: | 500BPH-4,000BPH (5L) | Automatic Grade: | Automatic |
| Driven Type: | Electric | Application: | Beverage |
| Voltage: | 220V/380V | Warranty: | 1 Year |
| Highlight: | water filling equipment,pet bottle filling machine |
||
High Quality Drinking Mineral Pure Water Rinsing Filling Capping Bottling Equipment Price
Application: still water, pure water, RO water, mineral water, sparkling water, etc.
Suitable for: 3-15L bottles and jars
Filling system: gravity filling
Production capacity: 500BPH-4,000BPH (5L)

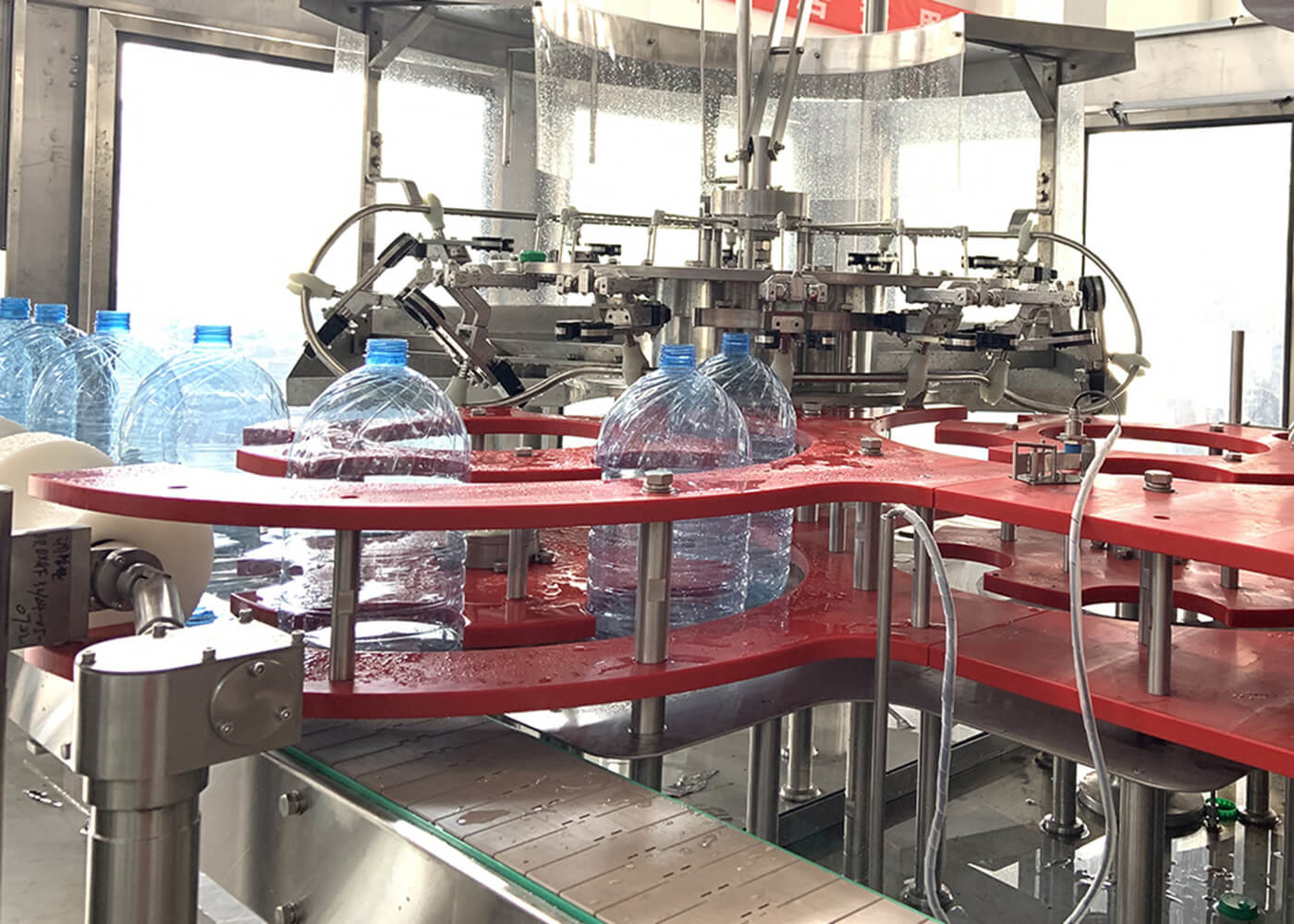

Introduction of 5L water filling machine
CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main Specification
Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang
Main features
Rinsing part
The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure water to the bottle, after 30s, stop it, the overturn cylinders reset, input the conveyor system and go to filling machine.
Filling machine
After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt. Output to the capping part.
Screw capping machine
The screw capping machine is made of screw capping heads frame, after the filled bottle convey to the screw capping machine station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.
Technical Parameters:
| Model | Rinsing heads | Filling heads | Capping heads | Capacity[BPH/5L] |
| CGF4-4-1 | 4 | 4 | 1 | 500 |
| CGF6-6-1 | 6 | 6 | 1 | 750 |
| CGF8-8-4 | 8 | 8 | 4 | 1000 |
| CGF10-10-5 | 10 | 10 | 5 | 1200 |
| CGF16-16-4 | 16 | 16 | 4 | 2000 |
| CGF25-25-5 | 25 | 25 | 5 | 3000 |
| CGF32-32-6 | 32 | 32 | 6 | 4000 |
