Full Automatic Water Filling Machines , 3L - 5L PET Monoblock Bottling Machine

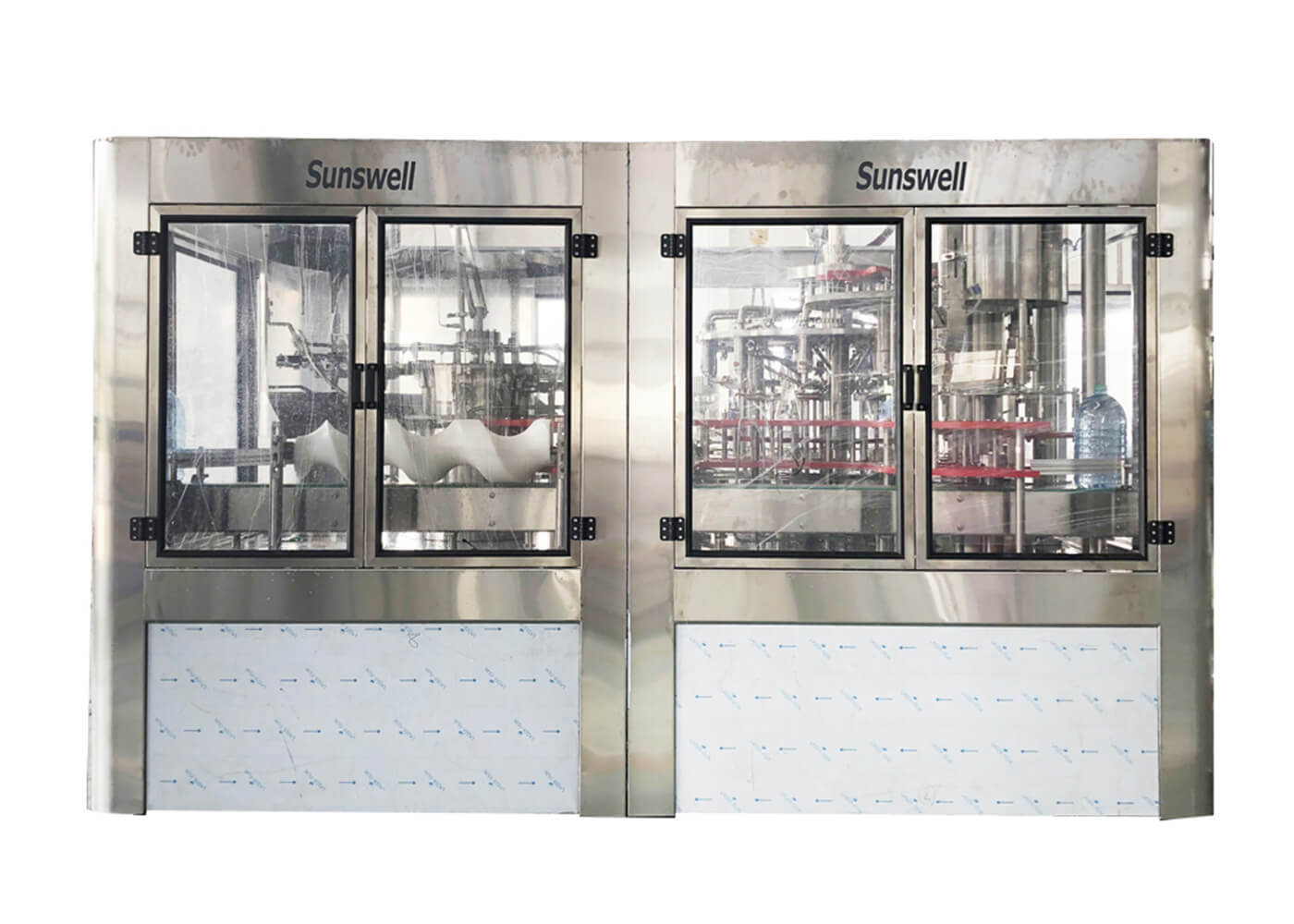

Full Automatic Water Rinsing-Filling-Capping 3-in-1 Monoblock for 3L-5L PET Bottle

Description:

CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers.

The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.

Equipment structure

l Base

l Rotary rinser

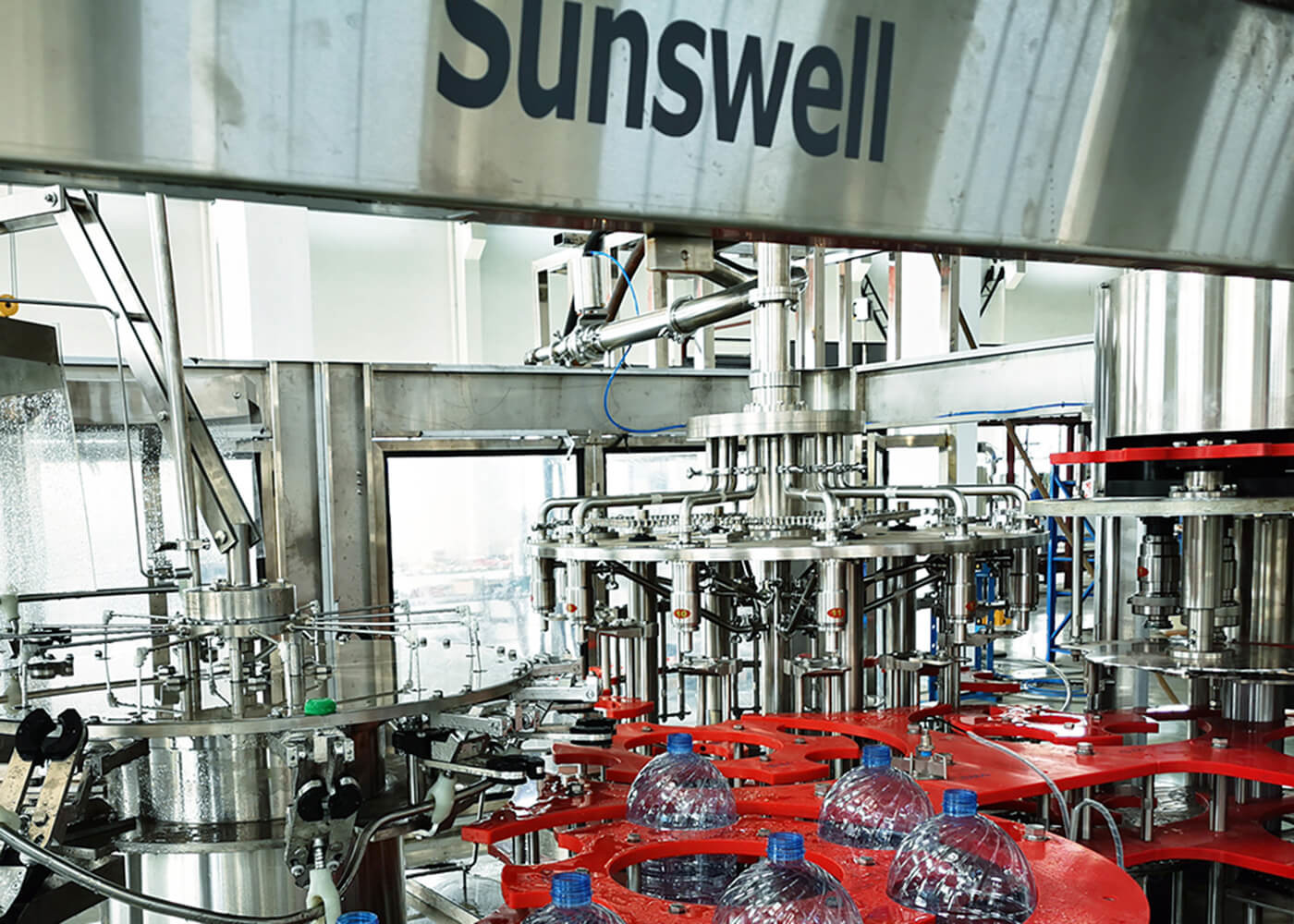

l Rotary filler

l Rotary capper

l Bottle infeed and outfeed system

l Control Automatic

Application: still water, pure water, RO water, mineral water, sparkling water, etc.

Suitable for: 3-15L bottles and jars

Filling system: gravity filling

Production capacity: 500BPH-4,000BPH (5L)

Main Features:

Bottle infeed

Bottle infeed by combination of infeed starwheels.

Bottle filling machine with bottle jam protection device.

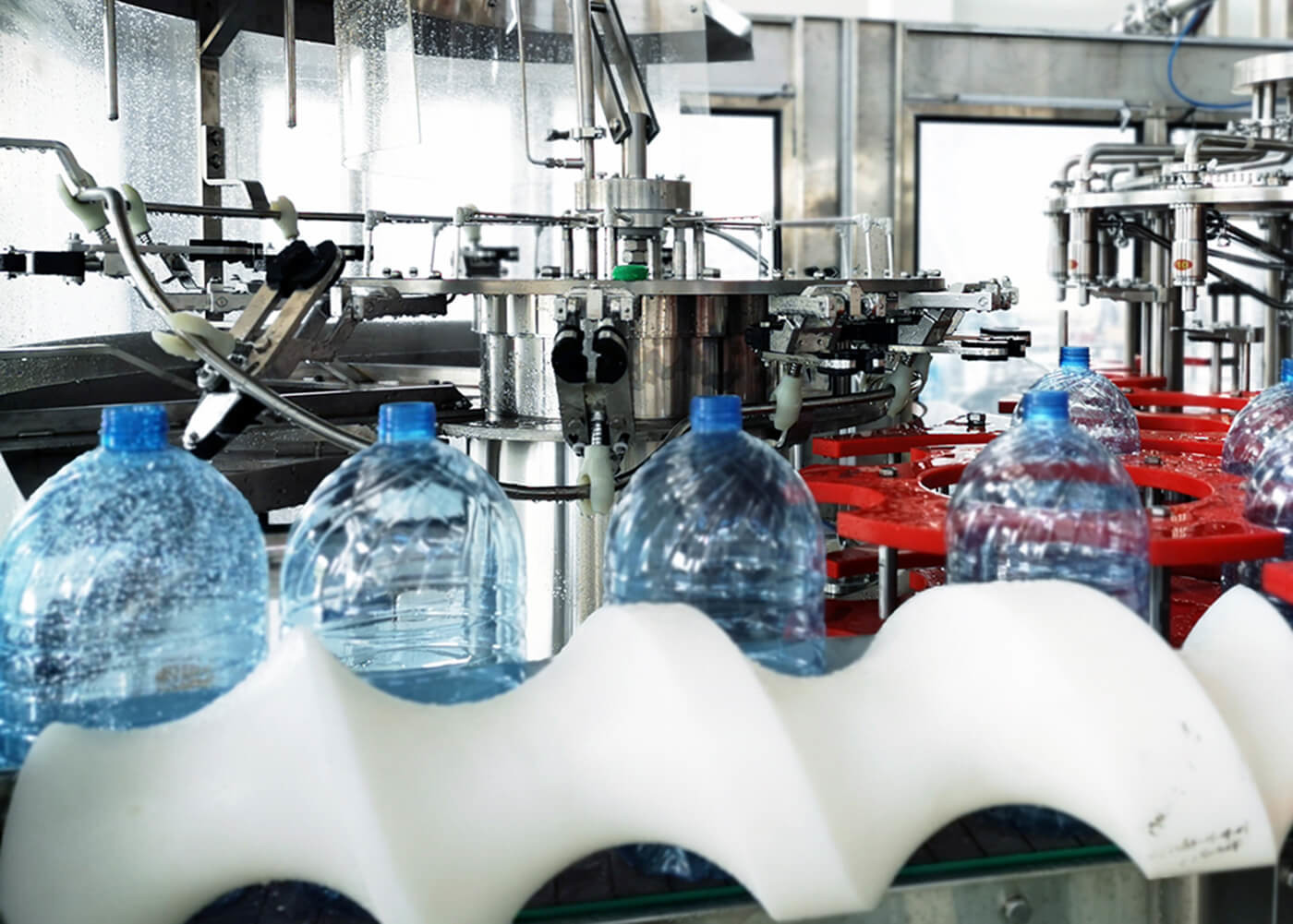

Rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adoptsSunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angleensures to wash all side of the bottle, and can save the water Automatic pure water filling stations .

Made of stainless steel of superior quality.

Bottle filling machine equipped with bottle jam protection device

filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck,it starts to fill.Bottle is conveying by the wheel in the filling part.

Capper

Screw capping machine is most precision part in the 3-1 machine,it has a big influence to the goods stability and defective rate. our screw capping has following feature.

1)Sunswell import of advanced technology of screw capping,improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.

Output bottle star wheel part

Nylon wheel and conveyor belt cooperate output the bottle.

Output bottle conveyor belt part

Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle

Rack part

Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.

Electronic control system part

The electronic components like PLC and transducer are from Mitsubishi, Omron,etc.,The pneumatic devices are also from international famous brand.
