Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunwell |
| Certification: | CE,SGS,ISO |
| Model Number: | XGF-xx-xx |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per year |
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric,Pneumatic | Voltage: | 220V/380V |
| Packaging Type: | Bottles | Type: | Filling Machine |
| Material: | 316L+304 Stainless Steel | Filling Material: | Mineral Water,pure Water,Pure/Mineral Water |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts | Warranty: | 12 Months |
| Highlight: | water filling equipment,pet bottle filling machine |
||

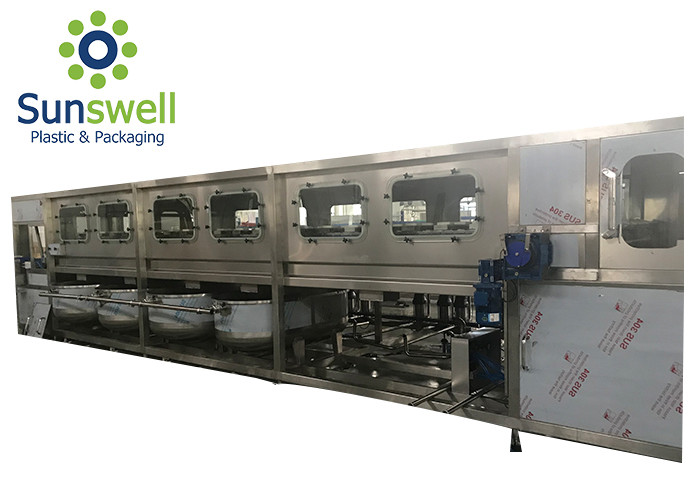

5 Gallon Barrel Water Automatic Filling Machine/Monoblock Washing Filling Capping Water Bottling Machine
General Description
5 gallon water filling production line to introduce US companies production technology and crafts, the integration of Italy, France and other countries the advantages of similar products. The technical improvement of the automatic filling machine production line, advanced equipment technology, reliable performance, process science, good food hygiene conditions, high degree of production automation and easy to operate.
The machine body all use high quality stainless steel material, other parts are also non-toxic, durable combination of materials, electrical, pneumatic system using imported components, so the equipment failure rate is low, high reliability.
According to the customer's requirement,the machine could be equipped with automatic cap separator,atoumatic leakage inspector,automatic cap loader,shrink wrapper,etc.
| Model | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
| Capacity(bph/5gallon) | 300 | 450 | 600 | 900 | 1200 | 1500 | 2000 |
Description Of Equipment
1,Cap Decapper
Automatic decapper is a special equipment for retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth,and increases cap pulling success greatly.
Main parameters
Decapping head: 3pcs
Jar size: Ф276×490×Ф56mm
Capacity: 2,000BPH
Compressed air: pressure 0.5-0.6Mpa, consumption 400L/hr
Pneumatic cylinder drive
Power: 0.75kw
2,Outer Brusher
Outer Brusher is a corollary equipment for barrel water line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. The machine is made of stainless steel,it is anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate.It is well designed with reasonable structure and high efficiency, operating stably with highly automation.
Main parameters
Pneumatic components: AirTAC
AC contactor: Schneider/SIEMENS
Material: SUS304
Bearing has good waterproof structure.
Starwheel motor:Shanghai 0.75kw
Washing pump: CNP 0.37kw

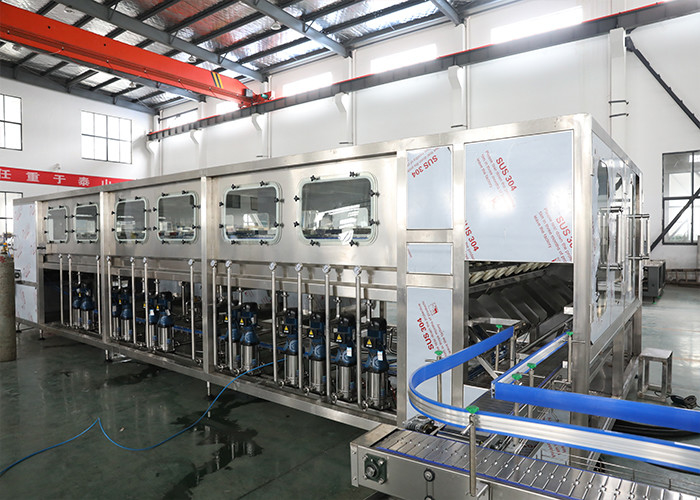

3,Bottle Washing Machine
15 steps for washing: 1-2 steps of hot alkaline water; 3-4 step of recycled water rinsing; 5-7 steps of
acid water; 8 step of dripping; 9-10 steps of recycled water rinsing; 11 step dripping; 12-14 steps of pure
water rinsing; 15 step of dripping.
Disinfectant recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.
Main parameters
Air source:pressure 0.5~0.6Mp,consumption 350L/M
Structure: transmission controlled by PLC.
Configuration (lye tank leaves steam joint)
PLC: MITSUBISHI
Pump: CNP
Pneumatic components: AirTAC
AC contactor: Schneider
Main motor: Shanghai Bolong
Equip automatic cap sorting and loading system
Equipment automatic malfunction protection device
4,Filling-capping 2-in-1 Monoblock
1. stainless steel insert type filling nozzle, two times high precision filling, filling volume adjustable.
2. Water pump is equipped.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and solenoid valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Main parameters
Filling head: 8 pcs
Power supply: 380V 50Hz 3 phase (adjustable )
Air consumption: 0.5m3/min
Suitable to Φ270×490 bottle (3,4,5 Gallon Bottle )
5,Heat Shrinking Machine
Electrical heating produces hot steam,barrels with full water after light inspecting are sleeved with plastic labels, then they enter steam paths to make plastic labels molding.
Main parameters
Material of machine body and pipeline: 304 Stainless Steel.
With two thermal inside
Automatic water lever control
6,Visual Inspection
To check the filled bottle full filled or not, and to check if have any impurity in the bottle water.
7.Automatic bagging machine
8.Cap Elevator
Cap elevator is equipped with testing switch, when caps are consumed to a certain degree, testing switch will signal to start feeding. There are certain amounts of caps in the cap store, which will be elevated into the capper by belt.
9,Bottle Conveyor Belt
10.Palleziter
More information pls contact :
Sam
+86 138 1284 5656
www.sunswell.com
Zhangjiagang Sunswell Machinery Co., Ltd
