Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | SSW-600 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Product Name: | Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Use: | Making PET Bottle |
| Machine Type: | Full Automatic Blowing Machine | Key Words: | Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine |
| Voltage: | Customized | Condition: | New |
| Highlight: | blow mould machine,blow molding machinery |
||

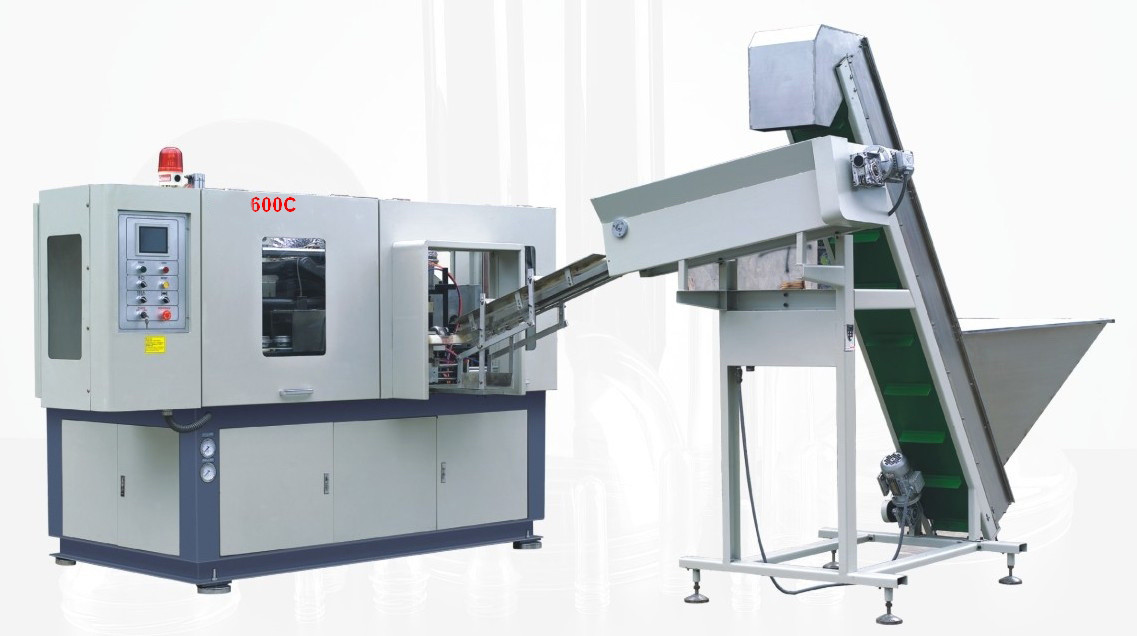

580BPH-620BPH Full Automatic 1 Cavity 5L 10L Blow Molding Machine for Plastic Bottle Making
A: Specifications:
1. Mold gathering strength (KN): 160
2. Mold traveling distance (mm): 230
3. Pulling rising traveling distance (mm): 420
4. Mold hole number (cavity): 1
5. Base mould stroke(mm):60
6. Spindle chain pitch(mm):80
B: Bottle specifications:
1. Max. Bottle capacity (L): 10L
2. Tooth part size(mm): 63
3. Max.PET height(mm):190
4. Max. Bottle diameter (mm): 210
5. Max. Bottle body height (mm): 420
C: Theoretic production capacity (bph): 580-620
D: Electric power specifications:
1. Total power consumption (kW):33
2. Thermal rating (kW): 30
3. Oven number(pcs):3
4. Lamp number(pcs):36
E: Air pressure specifications:
1. Operating pressure (kg/cm2): 8
2. Low pressure gas consumption (L/min): 800
3. Bottle blowing pressure (kg/cm2): 30
4. High-pressured gas consumption (L/min):450
F:Chilled controller
G: Machine weight:
| Sequence number | NAME | BRAND | Original made |
| 1 | Cylinder | FESTO | Germany |
| 2 | Two to five way air valve(two station five way) | FESTO | Germany |
| 3 | Atomized lubricator, water seperator,low pressure reducing valve | FESTO | Germany |
| 4 | High pressure valve | PARKER | U.S.A |
| 5 | Proximity Swith | OMRON | Japan |
| 6 | Touch screen | WEILUN | TAIWAN |
| 7 | PLC | MITSUBISHI | Japan |
| 8 | Seal | Italy | |
| 9 | High pressure reducing valve | SMC | Japan |
