Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | SSW-2000 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Product Name: | Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Use: | Making PET Bottle |
| Machine Type: | Full Automatic Blowing Machine | Key Words: | Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine |
| Plastic Processed: | PET | Automatic: | Yes |
| Highlight: | blow mould machine,blow molding machinery |
||

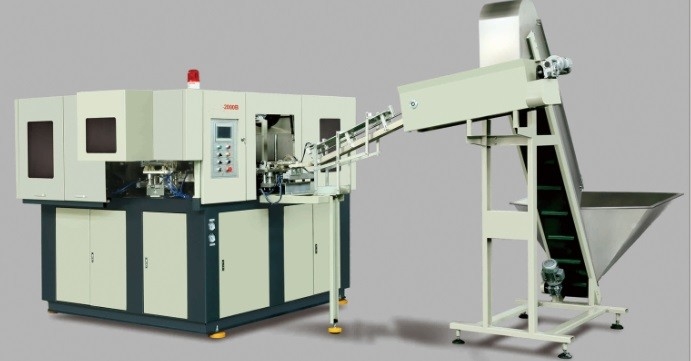

1000BPH-1200BPH Automatic 2 Cavity 5L 10L Blow Molding Machine for Making Plastic Bottle
A: Specifications:
1. Mold clamping force (KN): 450
2. Mold traveling distance (mm): 260
3. Pulling rising traveling distance (mm): 430
4. Mold hole number (cavity): 2
B: Bottle specifications:
1. Max. Bottle capacity (L): 10
2. Max. Tooth part size (mm): 50
3. Max. Bottle diameter (mm): 210
4. Max. Bottle body height (mm): 430
C: Theoretic production capacity (bph): 1000-1200
D: Electric power specifications:
1. Total power consumption (kW): 44
2. Thermal rating (kW): 40
E: Air pressure specifications:
1. Operating pressure (kg/cm2): 8
2. Low pressure gas consumption (L/min): 2000
3. Bottle blowing pressure (kg/cm2): 30-35
4. High-pressured gas consumption (L/min): 8000
F: Machine weight:
1. Machine size (m): 2.6x 2.25 x 2.4
2. Machine weight (MT): 3.5
SPARES FITTING
| sequence number | NAME | ITEM |
| 1 | LAMP(infrared heater) | 30 PCS |
| 2 | Magnet Switch | 1 PCS |
| 3 | Approach Switch | 1 PCS |
| 4 | Voltage regulating module | 1 PCS |
| 5 | Chain Wheel (upper) | 1 PCS |
| 6 | Chain Wheel(nether) | 1 PCS |
| 7 | All kinds of Injection(tie-in ), bolt | Each one PCS |
| 8 | Tool(Allen Wrench) | 1 PCS |
