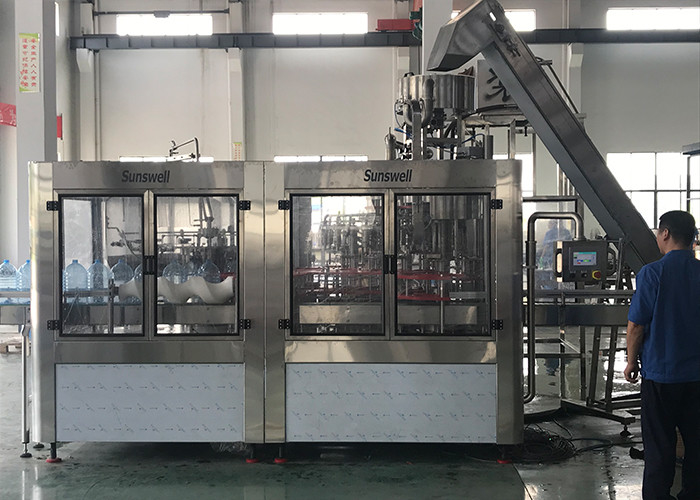

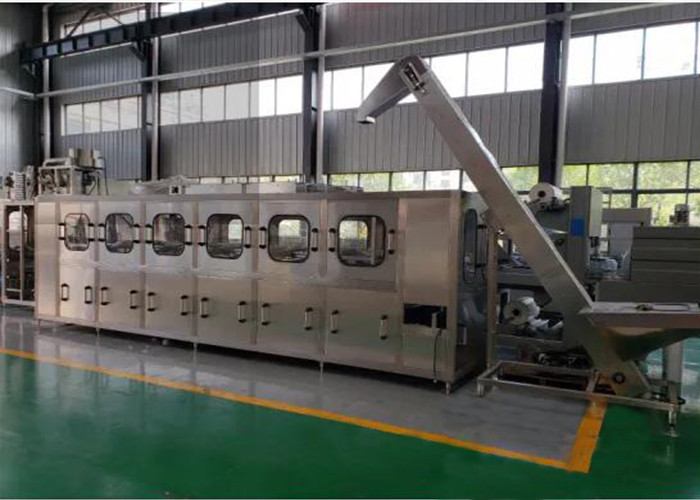

Automatic Filling Machinery For Water 1Gallon to 5 Gallon Price
Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with water tank, filling valves, controlling ring, and bottle carrying mechanism.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel star wheels and neck supporting carrying plates.
6. Electrical controlling system: This part is frequency inverted, PLC controlled and touch screen operated.
Technical Parameters:
| Model | CGF4-4-1 | CGF6-6-1 | CGF8-8-4 | CGF10-10-5 | CGF16-16-4 | CGF25-25-5 | CGF32-32-6 |
|
Capacity (bph/5L) |
500 | 750 | 1000 | 1200 | 2000 | 3000 | 4000 |
Main features
1. Bottle infeed
2. Rinser
The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
3. Filler
Rotary wheel fully made of stainless steel SUS 304.
Gravity filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
4. Capper
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
5.Main configuration
Main collocation of equipment
Material of filling valve: Stainless steel SUS316L;
Material of rotary tray and machine platform: Stainless steel SUS304;
Main motor: ABB (Switzerland);
Sliding bearing: Igus (Germany);
Frequency inverter: MITSUBISHI (Japan);
Touch screen: PRO-FACE (Japan);
PLC Controller: MITSUBISHI (Japan);
Pneumatic components: FESTO (Germany);
Seals: Busak+Shamban (USA);
Photocell switch: BANNER (USA);
Proximity switch: TURCK (Germany);
