| Product Name: | Automatic 5 Gallon Bottle Water Filling Machine | Type: | Filling Machine |
|---|---|---|---|
| Driven Type: | Electric | Material: | SUS304 |
| Function: | Washing Filling Capping | Bottle Type: | 5 Gallon Barrel |
| After-sales Service Provided: | Commissioning And Training | Name: | Automatic Pure Mineral Barrel Water 5 Gallon Filling Machine / Plant |
| Highlight: | bottled water filling machine,automated filling machine |
||

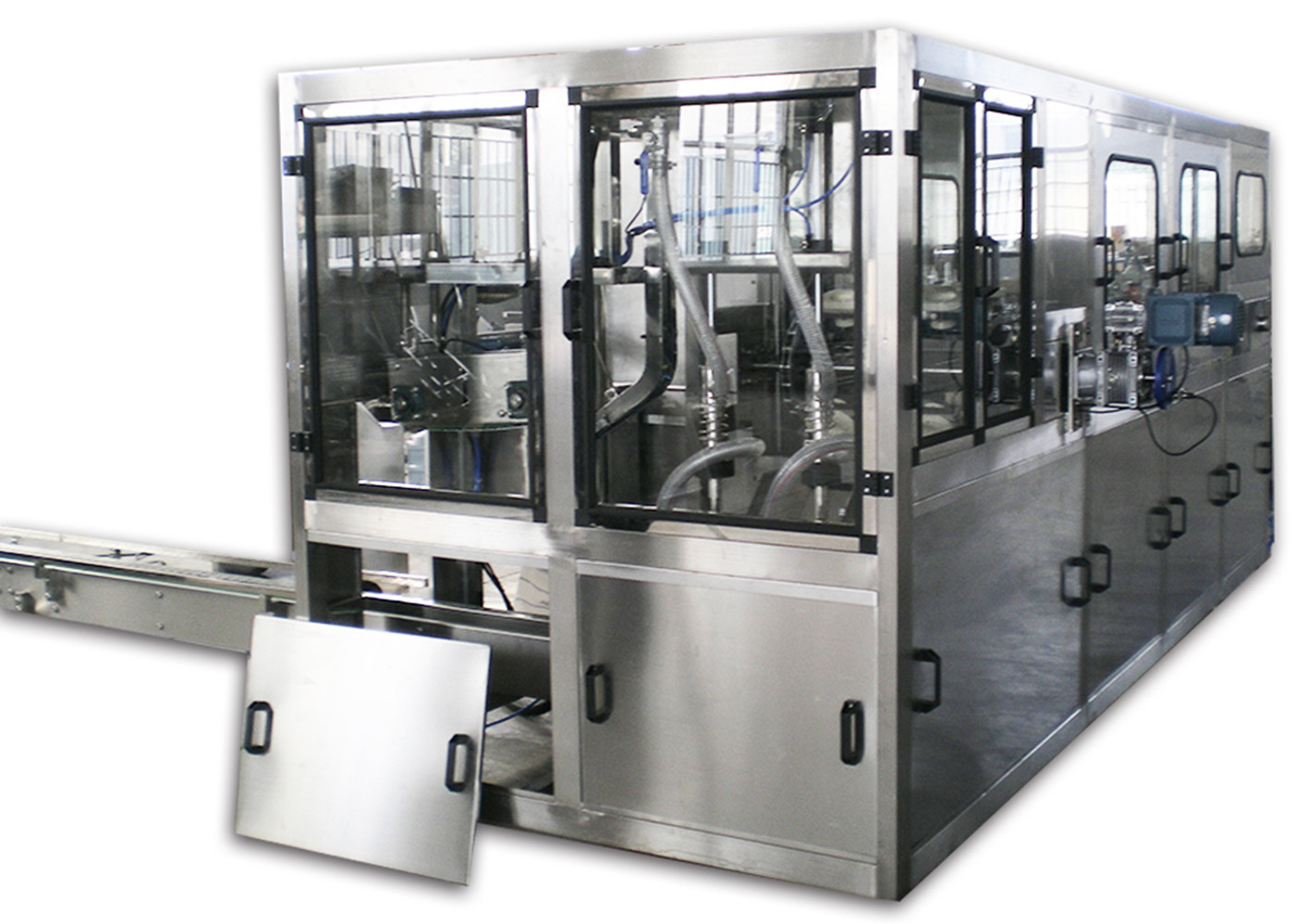

Automatic 5 Gallon Washer Filler Capper for Water Production Line
Configuration:
1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. Three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts With AIRTAC brand air cylinder, F. R. L. Combination and Electromagnetism valve for air cylinder.
4. Machine frame and body: All 304 Stainless Steel, combine with clear fiber glass windows
| Item | Type | Remark | |
| Washing part | Number of bottle carrier / nozzles | 2 bottle carrier,12 sets spraying nozzles | homemade special rotary spray system |
| Number of rows for washing | 6 rows (each row 2 bottle carrier) | ||
| Number of rinsing pump | 6 sets of Lingxiao pump BLC series | disinfectant and tap water washing pump: 370KW, pure water washing pump:550KW |
|
| Filling part | Number of filling pump | 2 set of Lingxiao BLC755 | |
| Filling nozzle system | 2 sets of SS304 type | ||
| Pressure valves | 4V210-08(AC 220V) | Airtac | |
| Filters rugulators lubricators | AFC-2000 | Airtac | |
| Pressure sensitive switch | YSNS-C110 | Airtac | |
| Capping part | Automatic caps tank/caps chute | 100pcs caps tank (manual caps dosing) | |
| Numbers of the capping chuck | 2 sets of sticking type | ||
| Cylinder system | SC 50*50 x 2 sets, SC 50*525 x 1 set | Taiwan Airtac | |
| cap-ahigning motor | 90YCJG60 1:30 | ||
| Controlling unit | PLC system | K7M-DR20UE | korea LG |
| proximity switch | Ni10-Q25-AN6x | TURKER | |
| AC contactor | GMC-9 AC 220V | korea LG | |
| signal relay | MY2NJ-AC 220V | Omron | |
| air-leakage switch | C65N-16 4P/2P | MGE | |
| Electromagnetic valves | pure water washing:ZCS-15L filling:ZCS-20L | ||
| control panel | 1020-40-50 | ||
| Speed gear motor | 2 sets of 0.75Kw pearl river motor | ||
| station assign | adopt double row six stations wash the bottle,two are filling ,two are capping - the first,sencond and thrid station: dinsinfectant washing, the fourth station:drain, the fifth station:tap water washing, the sixth station: pure water washing |
||
| input voltage | AC 220/380 V 50HZ | ||
| Dimension | Machine size | 2950 x 780 x 1520mm | |
