Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | QGF |
| Minimum Order Quantity: | 1 set |
| Price: | $20,000/set |
| Packaging Details: | Wooden case |
| Delivery Time: | 90 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Product Name: | Automatic 5 Gallon Bottle Water Filling Machine | Type: | Filling Machine |
|---|---|---|---|
| Driven Type: | Electric | Material: | SUS304 |
| After-sales Service Provided: | Commissioning And Training | Capacity: | 100/200/300/450/600/900/1200 |
| Function: | 5 Gallon Bottle Water Washing Filling Capping Process | Bottle Type: | Gallon Barrel |
| Name: | 5 Gallon Mineral Water Bottling Machine/ 18.9L Pure Water Filling Line | Processing Types: | Automatic Bottle Filling Sealing Machine |
| Highlight: | bottled water filling machine,automated filling machine |
||

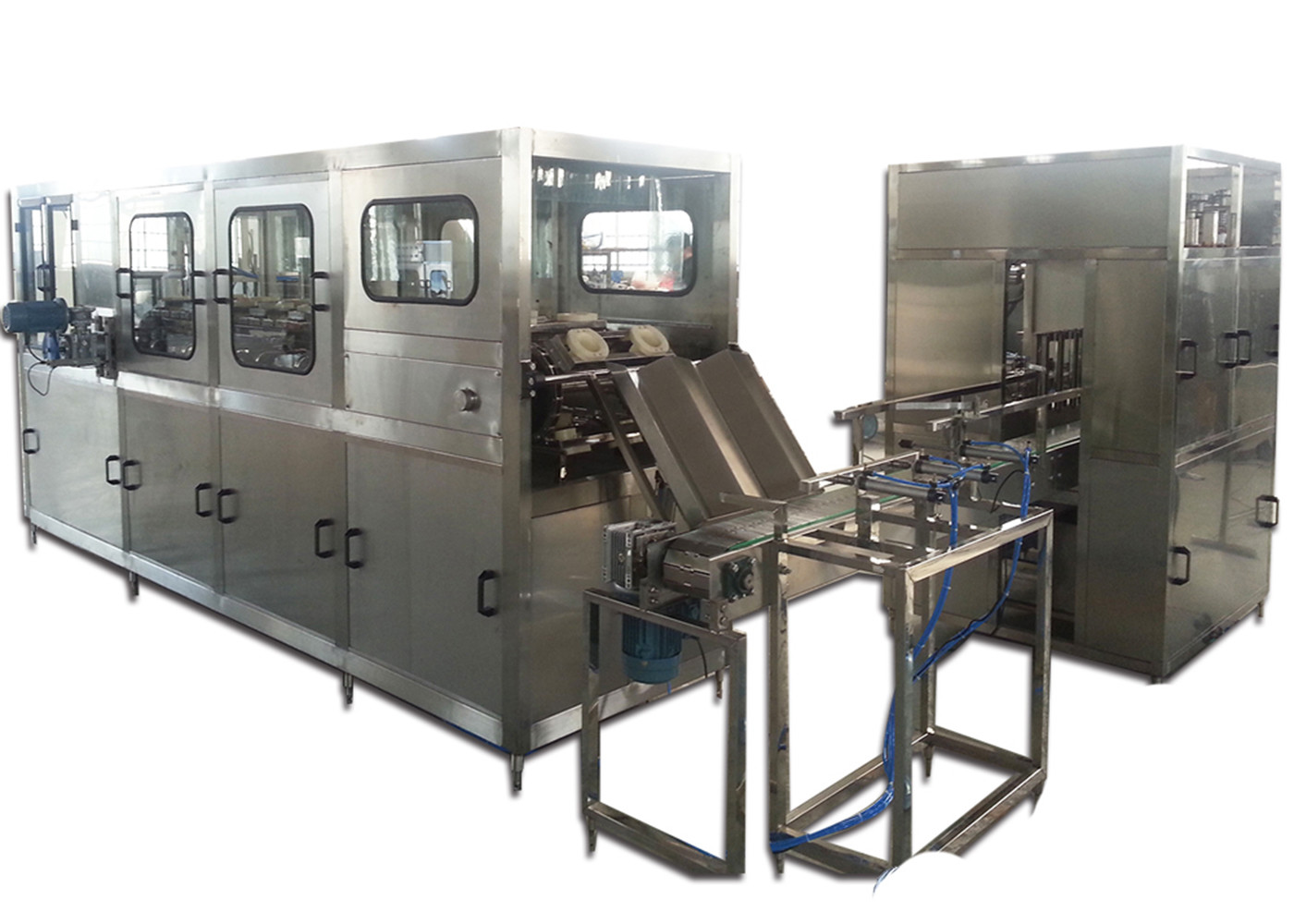

5 Gallon/20L Barrel Bottle Pure/Drinking Water Filling/ Bottling/ Packing Production Machine
Feature
1. QGF type auto barreled water production line is specially used in 3 gallon5 gallon barreled water producing.
2. The complete line has washerfillercapper three function in one body, it is the ideal equipment for pure water, mineral water.
3. Total line is made by SUS304.
4. The main electric parts use Japanese Mitsubishi, Omron and so on.
5. The air pressure system adopts Taiwan Airtac brand product.
6. This machine has features as compact structure, low floor area, high efficiency.
5 Gallon barreled production line is popular in South American.
Technical Specification
| TYPE | QGF-100 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 8 | 8 | 8 |
| Barrel size(mm) | Φ 276x490 | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400 | 800 | 800 | 800 |
| Gas pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power kw | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage | 380V/50HZ | ||||||
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
