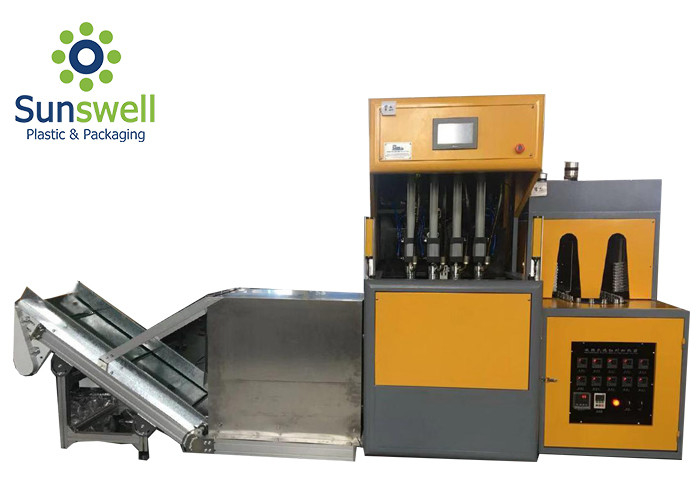

Stretch 2 Cavity Semi Automatic Pet Bottle Blowing Machine For Plastic Bottle

Basic Information

Place of Origin:	China
Brand Name:	SUNSWELL
Certification:	CE,ISO,SGS
Model Number:	SW-400

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Wooden Case
Delivery Time:	30 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets Per Year

Get Best Price Contact Now

Voltage:	Customized	Use:	Making PET Bottle,water Bottle
Blow Moulding Type:	Stretch Blow Moulding	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training
Warranty:	12months	Key Words:	PET Stretch Bottle Blowing Molding Machine
Highlight:	blow mould machine , blow molding machinery

Semi Automatic 2 Cavity PET Bottle Plastic Bottle Blow Molding Machine

General Description:

1). The machine adopts revolving infrared pre-heat system, it ensures pet performs

be heated evenly.

2). The machine uses mechanical-double-arm mould clamping system which ensures the mould

be closed tightly even under high pressure and high temperature.

3).The air system has been divided into two parts: Pneumatic action part and bottle

blow part to meet the different pressure requirements for the action and blow, it

can provide sufficient and steady high pressure for blowing large irregular shaped

bottles

4).Wide -mouth and hot-filling bottles can also be made.

HOW IT WORKS:

1. The Blow Molding system does not require highly trained operators to produce consistent quality bottles.

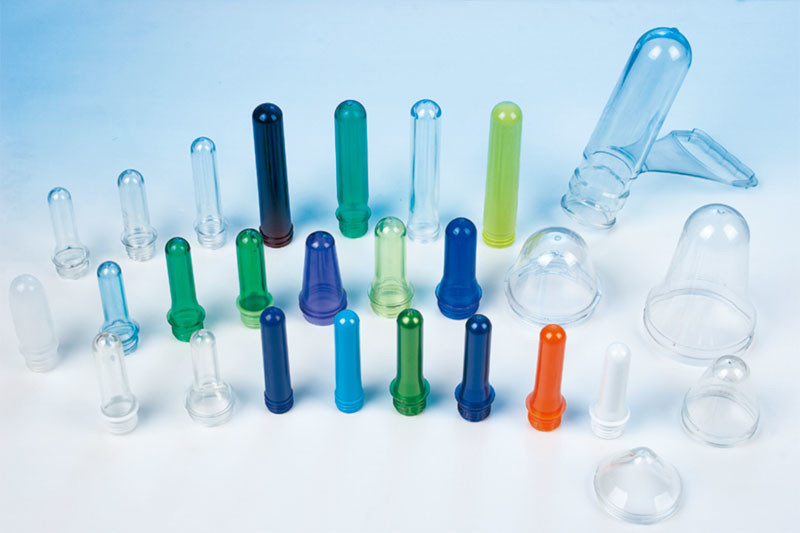

2. The bottle making process starts by loading preforms into the preheater.

3. The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.

4. When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder.

5. After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.

Stretch 2 Cavity Semi Automatic Pet Bottle Blowing Machine For Plastic Bottle 0
Specifications:

Output	up to bottle shape	2000~2500bph	Power	power voltage	3Phase 380V /50HZ
Finished Bottle	bottle body diameter	30mm-110mm	Power	installed power / actual power	18kw/10kw
	bottle height	50mm-350mm	Air Source	high pressure air compressor	1.6m3/min 3.0MPa
	bottle neck diameter	15mm-48mm	Air Source	air dryer	2.0m3/min 3.0MPa
Mold	cavity	4 cavity	Cooling Water	water yield	15L/min
	mold thickness	100~250mm	Blower Dimension	lengthwidthheight/ weight	16508001850mm/650kg
	Max. stretching distance	600*380mm	Heater Dimension	lengthwidthheight/ weight	21506701700mm/350kg

Main parts:

No.	Name	Specification	Quantity	Rewark
1	Semi Auto Bottle Blowing Machine	SW-400	1
2	Heating Oven	SW-400	1	38KW
3	Mold	500ml. 4Cavity	1	45^#Steel
4	High Pressure Compressor	1.6m3/3.0mpa	1	18.5KW
5	High Pressure Tank	0.6m3/3.0mpa	1
6	High Pressure Air Dryer	2.0m3/3.0mpa	1	5KW
7	High Pressure Filer	2.0m3/3.0mpa	2
8	Tubes & Pipes	2.0m3/3.0mpa	1
9	Chiller	3HP.air chiller	1	5KW

Stretch 2 Cavity Semi Automatic Pet Bottle Blowing Machine For Plastic Bottle 1
