Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE,ISO,SGS |
| Model Number: | SW-XXX |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets Per Year |
| Voltage: | Customized | Use: | Making PET Bottle,water Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training |
| Warranty: | 12months | Key Words: | PET Stretch Bottle Blowing Molding Machine |
| Highlight: | blow mould machine,blow molding machinery |
||

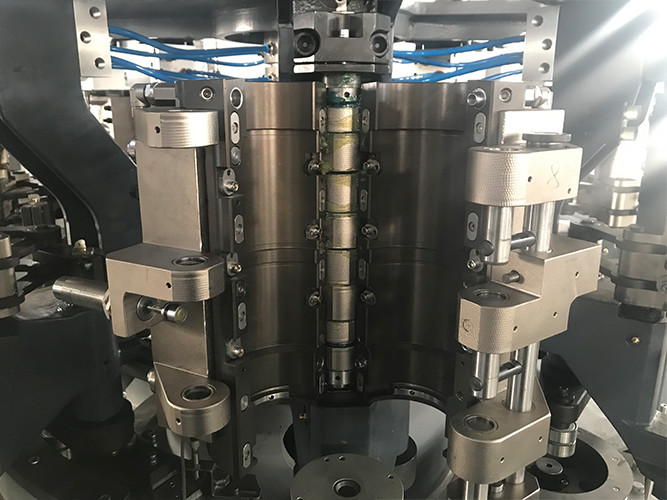

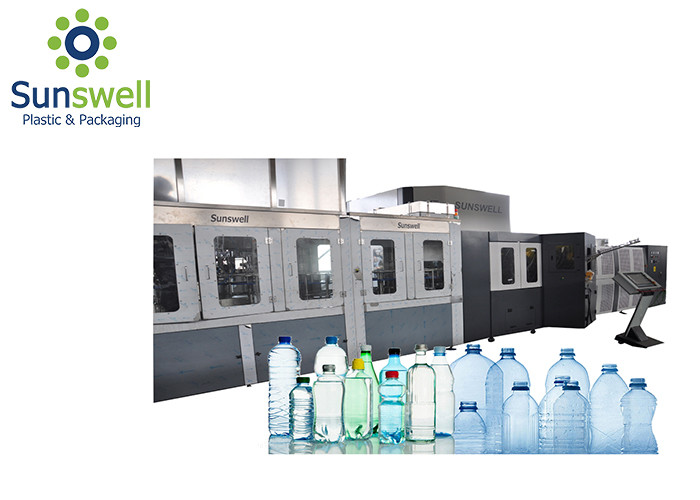

Fully Automatic PET Bottle Plastic Bottle Blow Molding Machine
Bottle blowing machine is a kind of equipment which can make plastic granules into hollow containers by blow
molding process. It is mainly used in beverage and food industry.
Advantages:
1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design
without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body
is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
Main Components and Brands(can be customized)
| No. | Description | Brand & Origin |
| 1 | PLC | Omron (Japan) |
| 2 | Operating Panel | KunlunTongtai (Sino-foreign joint venture) |
| 3 | Servo Motor (Driven the mold clamping system, stepping system, the stretching system, preform arraying) |
Yaskawa (Japan) |
| 4 | Speed Reducer | NEUGART (Germany) |
| 5 | High Pressure Blowing Valve (pre-blowing, blowing and exhausting included) | PARKER(U.S.A.) |
| 6 | Cylinder | Rexroth(Germany) or FESTO (Germany) |
| 7 | Motion Valve | Parker (USA) |
| 8 | Control Button, Intermediate Relay | Omron (Japan) |
| 9 | AC Contactor, Thermal Relay | Schneider (France) |
| 10 | Intelligent Voltage Regulator | Omron (Japan) |
| 11 | Silicon Control | Semikron (Germany) |
| 12 | Infrared Tungsten Lamp Pipe | Lianggu(China) |
| 13 | Convertible Governor | Omron (Japan) |
Technical parameter:
| Item | YCQ-5L-3 | |
| Bottle type specification | Cavity | 3 |
| Theory output | 1500-2000 | |
| Max.volume | 5L | |
| Bottle mouth maximum overall DIdiameter | 150mm | |
| Bottle biggest diameter | 180mm | |
| Bottle maximum height | 400mm | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 2KW | |
| Maximum heating power | 64KW | |
| All electric machine installation | 67KW | |
| Actual consumption | 46.9KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 4000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 88L/min | |
| Machine specification | Size of the machine | 7.7x1.6x1.9 |
| Weight of the machine | 5ton | |
