Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE,ISO,SGS |
| Model Number: | SW-1200 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets Per Year |
| Condition: | New | Voltage: | Customized |
|---|---|---|---|
| Power(w): | AS ORDER | Machine Type: | Semi-automatic Bblowing Machine |
| Use: | Making PET Bottle,water Bottle | Blow Moulding Type: | Stretch Blow Moulding |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training | Warranty: | 12months |
| Highlight: | blow mould machine,blow molding machinery |
||

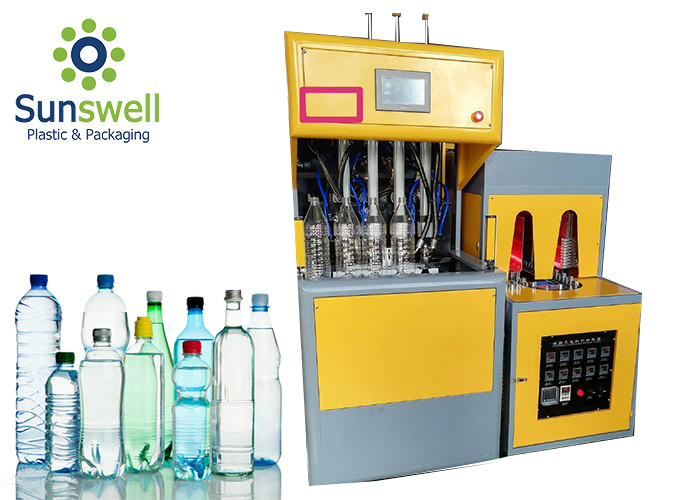

Semi Automatic Mini Injection Blow Moulding Machine Manufacturers
Description:
Semi automatic PET stretch blowing machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

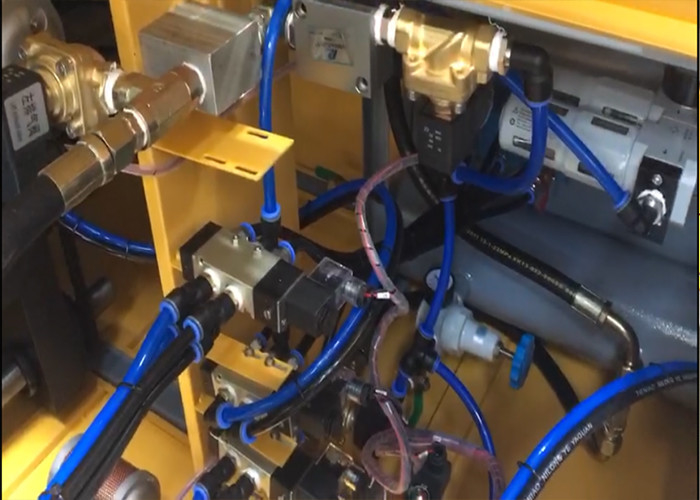

The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
Main parts:
| Ltem | Specification | QTY | Power/Remarks | |
|
Blowing machine |
Semi-Automatic blowing machine |
DY-1200B | 2 | 42KW |
| Perform heater | 1 | |||
| Blowing mold | 500ml.2cavity | 2 | 45# Street | |
| Blowing mold | 1500ml.2cavity | 2 | ||
|
Auxiliary Equipment |
High pressure air compressor | 1.6m3/3.0mpa | 1 | 18.5KW |
| High pressure air tank | 0.6m3/3.0mpa | 1 | ||
| High pressure air dryer | 2.5m3/3.0mpa | 1 | 4kw | |
| High pressure air filter | 2.5m3/3.0mpa | 2 | ||
| Connecting pipe | 2.0m3/3.0mpa | 1 | ||
| Mold chiller | 3HP air-cooling | 1 | 4kw |
Specifications:
| Output | up to bottle shape | 1500-2000bph | Power | power voltage |
3Phase 400V/ 50HZ |
| Finished Bottle | bottle body diameter(max) | 30mm-130mm | total power/lamp pow |
42kw 40pcs*1kw |
|
| bottle height | 50mm-350mm | Air Source | high pressure air compressor | 1.6m3/min 3.0MPa | |
| bottle neck diameter | 15mm-120mm | air dryer | 2.5m3/min 3.0MPa | ||
| Mold | cavity | 2cavity | Cooling Water | water yield | 15L/min |
| mold thickness | 100~250mm | Blower Dimension | length*width*height/weight | 1650*650*1750mm/750kg | |
| Max. stretching distance | 430*380mm | Heater Dimension | length*width*height/weight | 2170*670*1600mm/400kg |
