Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE,ISO,SGS |
| Model Number: | CGX-XXX |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets Per Year |
| Automatic: | Yes | Condition: | New |
|---|---|---|---|
| Voltage: | Customized | Use: | Making PET Bottle,water Bottle |
| Power(w): | AS ORDER | Blow Moulding Type: | Stretch Blow Moulding |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training | Warranty: | 12months |
| Highlight: | blow mould machine,blow molding machinery |
||

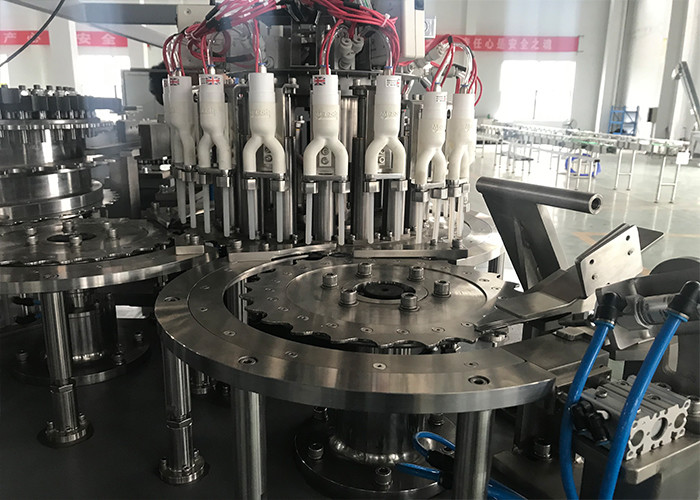

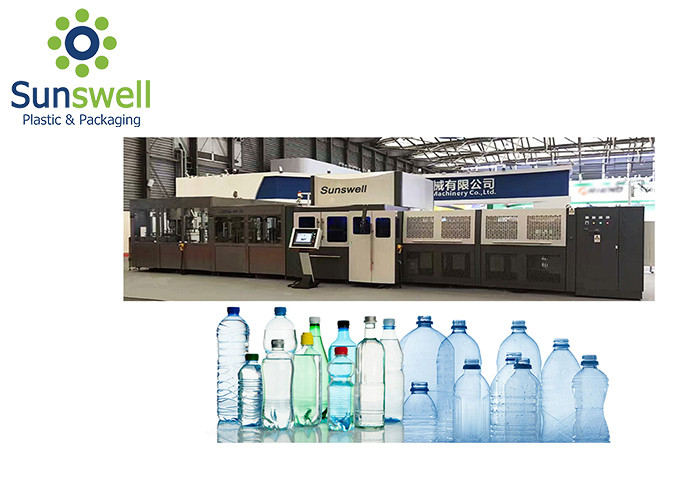

High Speed Hot Sale Fully Automatic PET Bottle Plastic Bottle Blow Molding Machine
Description:
This machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonate soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.
Advantages:
1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing.It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.
Main Components and Brands(can be customized)
| No. | Description | Brand & Origin |
| 1 | PLC | Omron (Japan) |
| 2 | Operating Panel | KunlunTongtai (Sino-foreign joint venture) |
| 3 | Servo Motor (Driven the mold clamping system, stepping system, the stretching system, preform arraying) |
Yaskawa (Japan) |
| 4 | Speed Reducer | NEUGART (Germany) |
| 5 | High Pressure Blowing Valve (pre-blowing, blowing and exhausting included) | PARKER(U.S.A.) |
| 6 | Cylinder | Rexroth(Germany) or FESTO (Germany) |
| 7 | Motion Valve | Parker (USA) |
| 8 | Control Button, Intermediate Relay | Omron (Japan) |
| 9 | AC Contactor, Thermal Relay | Schneider (France) |
| 10 | Intelligent Voltage Regulator | Omron (Japan) |
| 11 | Silicon Control | Semikron (Germany) |
| 12 | Infrared Tungsten Lamp Pipe | Lianggu(China) |
| 13 | Convertible Governor | Omron (Japan) |
Technical parameter:
| Model | Bottle Volume | Bottle Diameter | Theoretical Output | Cavity | Dimension(L*W*H) | Weight | Power |
| SW-2000 | 0.05-2L | 20mm-100mm | 2000pcs/h | 2Cav | 190*128*192cm | 2000kg | 25kw |
| SW-3000 | 0.05-1.5L | 20mm-100mm | 3000pcs/h | 3Cav | 175*125*205cm | 1600kg | 18kw |
| SW-4000 | 0.05-2L | 20mm-100mm | 4000pcs/h | 4Cav | 190*185*192cm | 3600kg | 49kw |
| SW-6000 | 0.05-2L | ≤90mm | 6000pcs/h | 6Cav | 500*280*220cm | 4800kg | 53kw |
| SW-8000 | 0.05-2L | ≤90mm | 8000pcs/h | 8Cav | 550*400*220cm | 5800kg | 66kw |
