Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Sunswell |
Certification: | CE SGS |
Model Number: | XGF |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Wooden case |
Delivery Time: | 80 days after receiving down payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets/month |
Automatic Grade: | Automatic | Type: | Filling Machine |
---|---|---|---|
Voltage: | Can Be Designed | Name: | Automatic Liquid Filling Machine |
Material: | SUS304/316 | Warranty: | 1 Year |
Highlight: | water filling equipment,pet bottle filling machine |

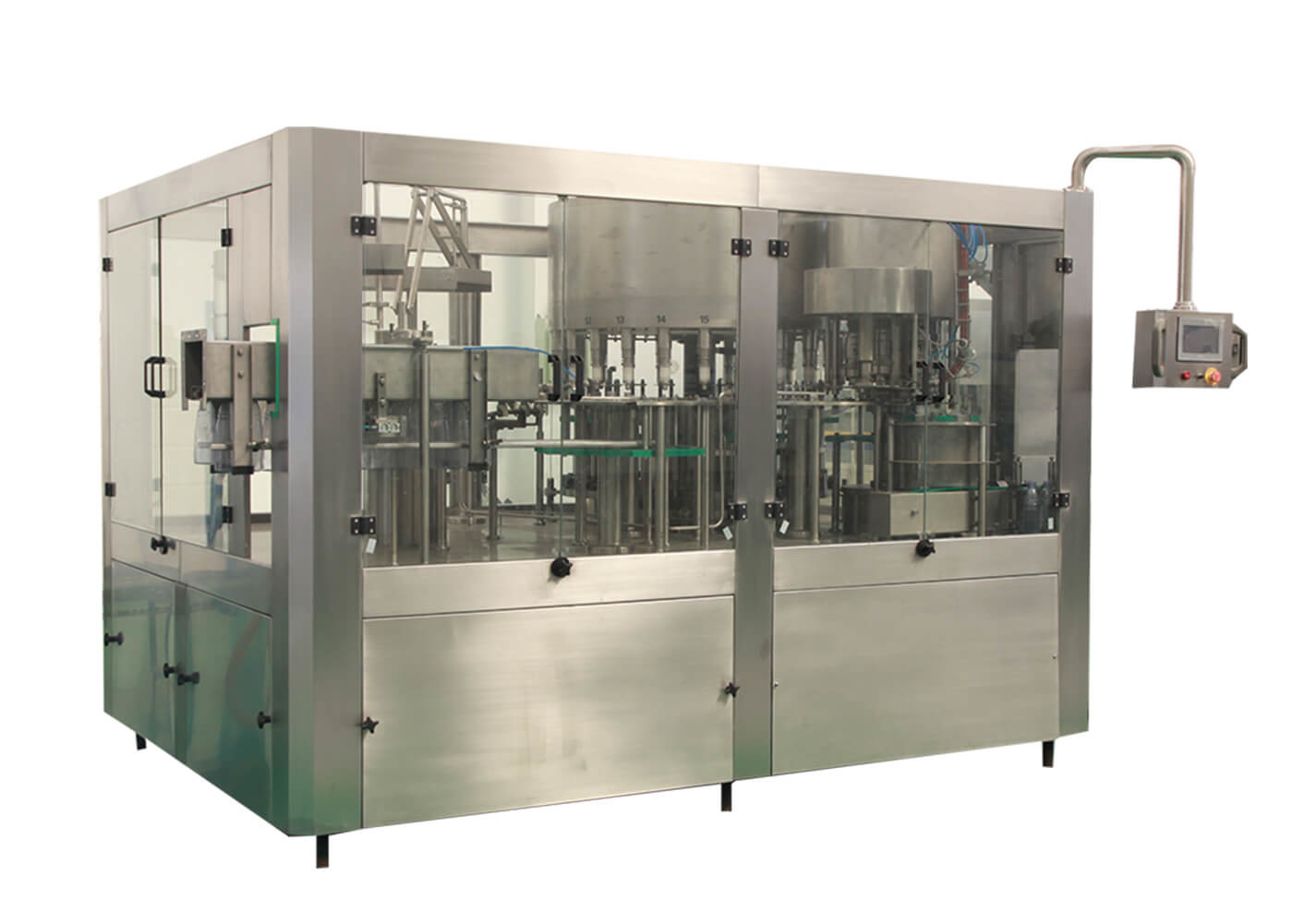

Factory Price Full Automatic Turnkey Small Bottled 200ml-2000ml Water Filling Production Line
General description
Drinking water processing line plant , combined with rinsing, filling and capping. It is used for water bottle rinsing ,water filling and bottle capping . It widely use for bottling filling pure water, drinking water ,mineral water, spring water, portable water ,flavored water ,sparkling water.
Details:
Bottle infeed
Bottle infeed by combination of infeed starwheels.
Equipped with bottle jam protection device.
Bottle Rinser
1.The rotary wheel is a fully stainless steel welded structure.
2.The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3.The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4.All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5.The rinser is driven by driving system positioned inside machine frame via gear transmission.
6.Made of stainless steel of superior quality.
7.Equipped with bottle jam protection device.
Bottle Filling
1.Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3.Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5.Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6.Level of cylinder is controlled with float-ball.
7.Filler is driven through gears inside the machine frame.
8.Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Bottle Capping
1.It import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2.In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.
Main Configuration
Technical Model:
Model | Stable capacity for 500ml (bottle/hour) | Remark |
XGF14-12-5 | 5000BPH | |
XGF16-16-5 | 7000BPH | |
XGF24-24-6 | 10000BPH | |
XGF32-32-8 | 15000BPH | |
XGF40-40-10 | 18000BPH | |
XGF50-50-12 | 20000BPH | Recommend our combiblock |
XGF60-60-15 | 24000BPH | Recommend our combiblock |
XGF72-72-18 | 30000BPH | Recommend our combiblock |
XGF80-60-20 | 36000BPH | Recommend our combiblock |
We can also provide turnkey/complete bottling water production line :
1.Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
2.Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. Rinser-filler-capper 3 in 1 monoblock
5. Cap loader load caps
6. Code printer (Ink-jet printer/ laser-jet printer)
7. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
8. End packaging ( PE shrink wrapping machine / Carton packing machine )
Please feel free to contact us if you are interested in our machines.
