Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 80 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Name: | Automatic Water Filling Machine | Type: | Filling Machine |
|---|---|---|---|
| Voltage: | Can Be Designed | Material: | SUS304/316 |
| Highlight: | water filling equipment,pet bottle filling machine |
||

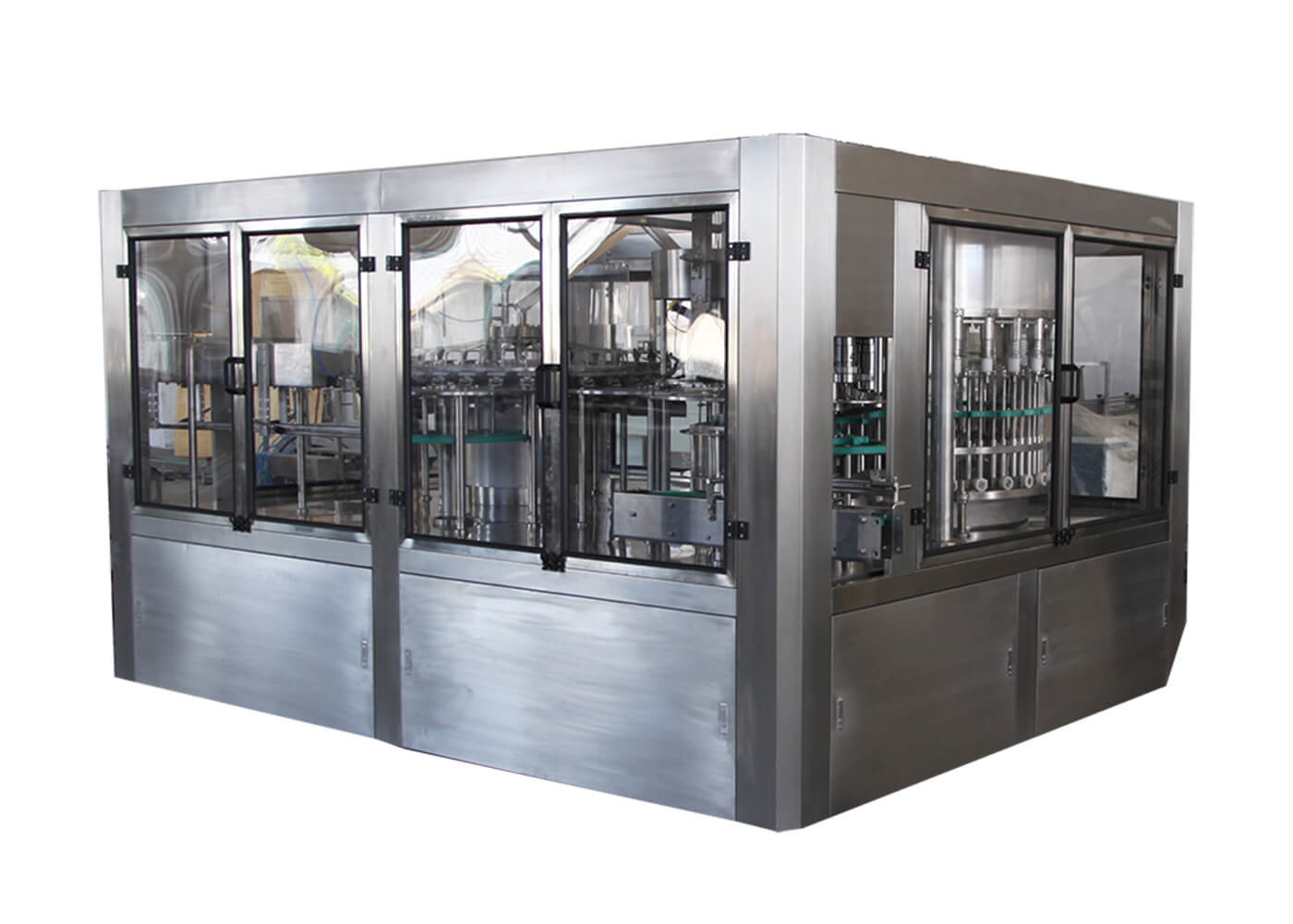

Automatic 3-in-1 Rinsing Filling Capping Monoblock Equipment for Bottled Water Production
Application:
Rotary bottle filler for water is widely used in PET bottled still water, pure water, mineral water,drinking water .
Water filling machine price is very competitive .
Specification:
1.Rotary bottle filler for water specialize for pure water,mineral water
2.Suitable for PET bottles
3.Capacity:5000-36000BPH
Rotary bottle filler for water structure :
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Technical Model:
| Model | Stable capacity for 500ml (bottle/hour) | Remark |
| XGF14-12-5 | 5000BPH | |
| XGF16-16-5 | 7000BPH | |
| XGF24-24-6 | 10000BPH | |
| XGF32-32-8 | 15000BPH | |
| XGF40-40-10 | 18000BPH | |
| XGF50-50-12 | 20000BPH | Recommend our combiblock |
| XGF60-60-15 | 24000BPH | Recommend our combiblock |
| XGF72-72-18 | 30000BPH | Recommend our combiblock |
| XGF80-60-20 | 36000BPH | Recommend our combiblock |
We can also provide turnkey/complete bottling water production line :
1.Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
2.Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. Rinser-filler-capper 3 in 1 monoblock
5. Cap loader load caps
6. Code printer (Ink-jet printer/ laser-jet printer)
7. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
8. End packaging ( PE shrink wrapping machine / Carton packing machine )
Please feel free to contact us if you are interested in our machines.
