Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | BFC |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 90 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/year |
| Type: | Filling Machine | Voltage: | 220V/110V/380V/440V |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Function: | Blowing Filling Capping |
| Processing Types: | Automatic Bottle Filling Line | Material: | Stainless Steel 304/316 |
| Highlight: | filling line machine,filling and capping machine |
||

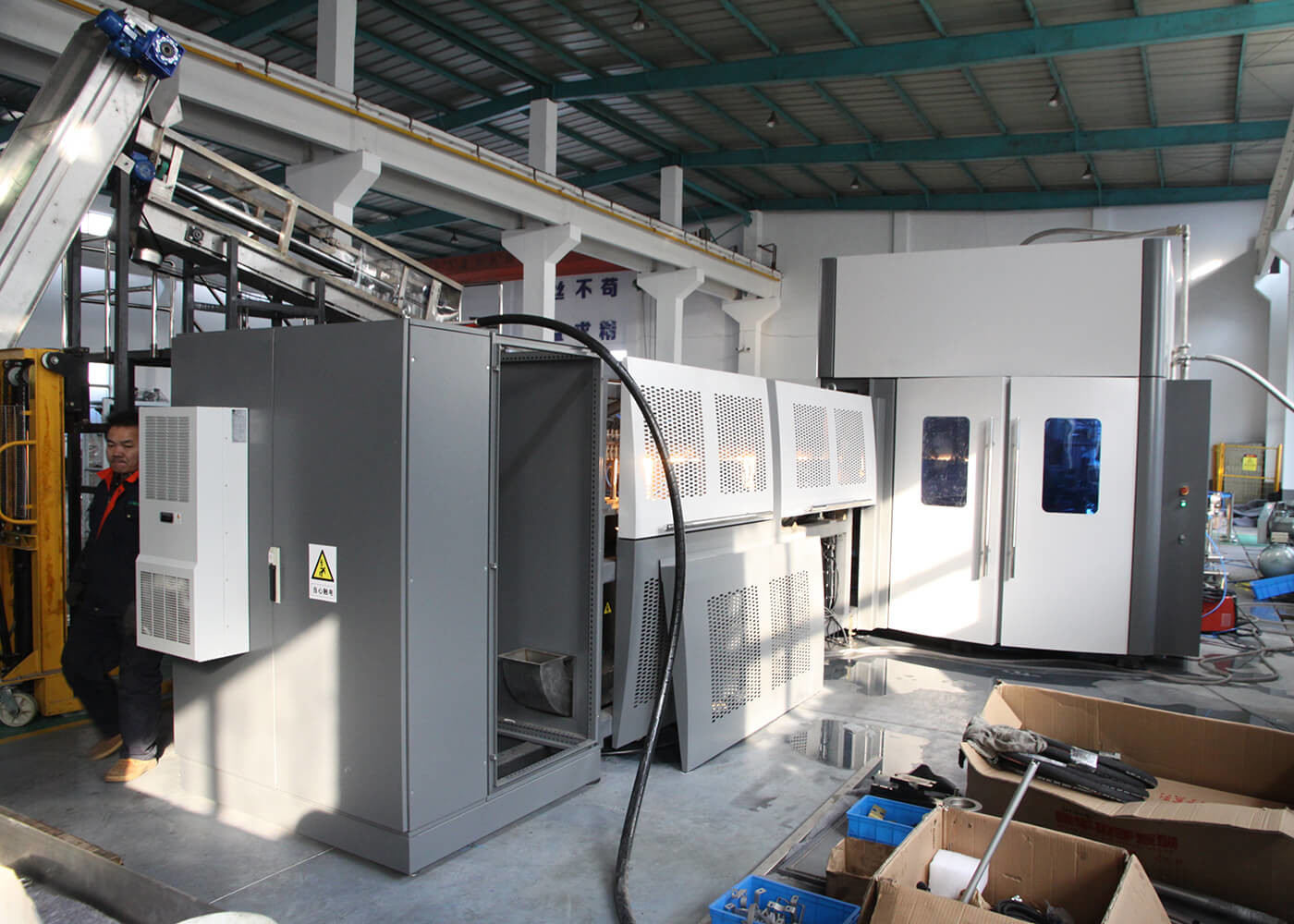

PET Bottle Beverage Blowing Hot/Carbonated Filling Capping Machine for Tea Juice Functional Drink
Features
Efficient and cost-effective
A Combi offers higher performance through fewer machines, improving production efficiency by up to 4% and reducing the total cost of operation by up to 12%.
--- Compact and ergonomic, with only one operator.
--- Optimized line layout with no empty bottle storage, handling, accumulation or rinsing.
--- Significant light-weighting opportunities through bottleneck handling and elimination of intermediary conveying.
By combining blowing, filling and capping within a single enclosure, the Combi optimizes hygiene and food safety.
--- Contact-free filling, with all parts in contact with a beverage made from stainless steel AISI 316L.
--- Automatic dummy bottles available, with insertion and removal available for automated CIP.
--- Optional reduced filler enclosure strengthens food safety and reduces the usage of chemical agents and water during external cleaning.
SUNSWELL Combi offers great savings potential with regard to raw materials, electricity, air consumption, and chemical usage.
--- 45% reduction in electricity consumption during blowing with infrared ceramic lamps.
--- Servomotors improve electrical efficiency.
--- Up to 35 % reduction in compressed air consumption with the option.
--- Smaller filler enclosure reduces footprint and chemical usage during external cleaning.
--- Integrated Cleaning System optimizes space, resulting in quicker cleaning, less CIP agent usage, and reduced resource consumption.
Parameters
|
Beverage Filling Machine |
|||
|
Application |
Tea, juice, functional drink, milk beverage etc. |
||
|
Applied Containers |
Heat-resistant PET bottles with various capacities and shapes. |
||
|
Filling System |
Mechanical valve or flow-meter valve. |
||
|
Capacity |
5000-48000BPH. |
||
|
Bottle Size |
From 0.2 L to 2 L |
||
|
Product's Scope |
Blowing molding system, air compressor system, filling system , purification system, caps sterilization system, sterile air system, bottle tilting chain and cooling tunnel, filled bottle conveying system, labelling machine, carton/film packing machine, palletizer, electric control, engineering design and construction. |
||
