Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | BRXGF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Voltage: | Customized | Application: | Beverage |
|---|---|---|---|
| Driven Type: | Electric | Type: | Filling Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Packaging Type: | Bottles | Automatic Grade: | Automatic |
| Packaging Material: | Wood | Warranty: | 1 Year |
| Material: | Stainless Steel 304/316 | Function: | Bottle Washing Filling Capping |
| Product Name: | Juice Filling Machine | Bottle Type: | Galss Bottle |
| Highlight: | automatic liquid filling machines,liquid filling equipment |
||

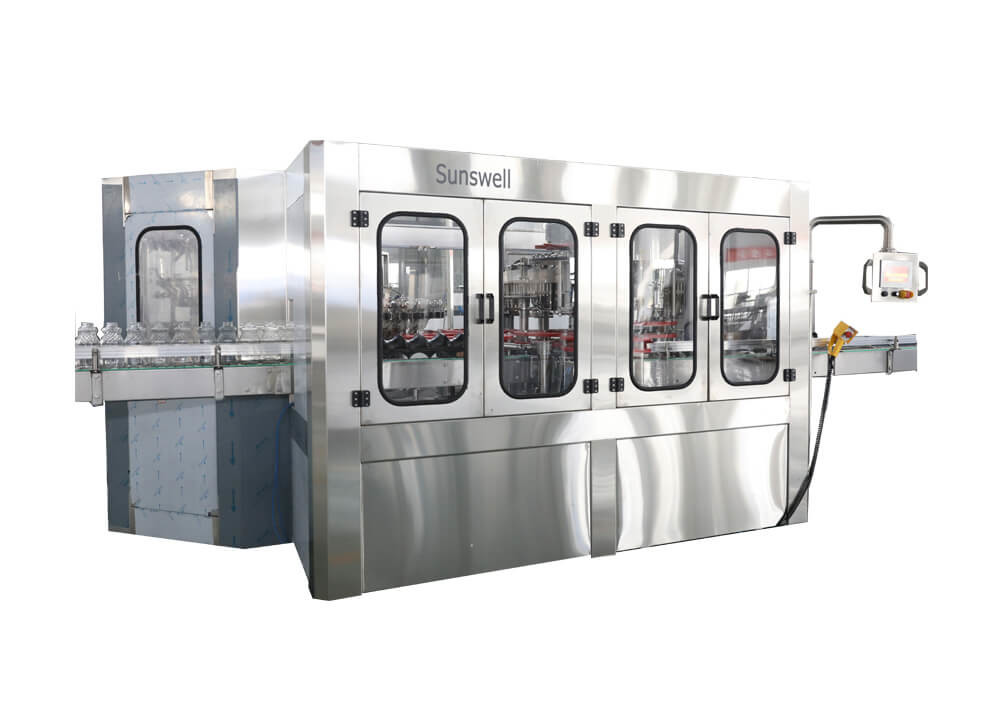

Complete Automatic 3-in-1 Glass Bottle Orange Apple Beverage Fruit Juice Hot Filling Production Bottling Machine
General description:
Glass bottle water filling for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated water and alcoholic drinks to be one of the advanced room filling production line.
This Dice filler is special designed for fruit meat filling, low than 5mm fruit meat or chunk is ok for this model.
Process:
Bottle enterinto machinery by screw device, then, through the volumetric cup to measure the volume of the fruit pulp, when the bottle moved to the filling position, the filling valve will be open by a mechanical device, through some angle filling, then to outlet starwheel.
Wahing part:

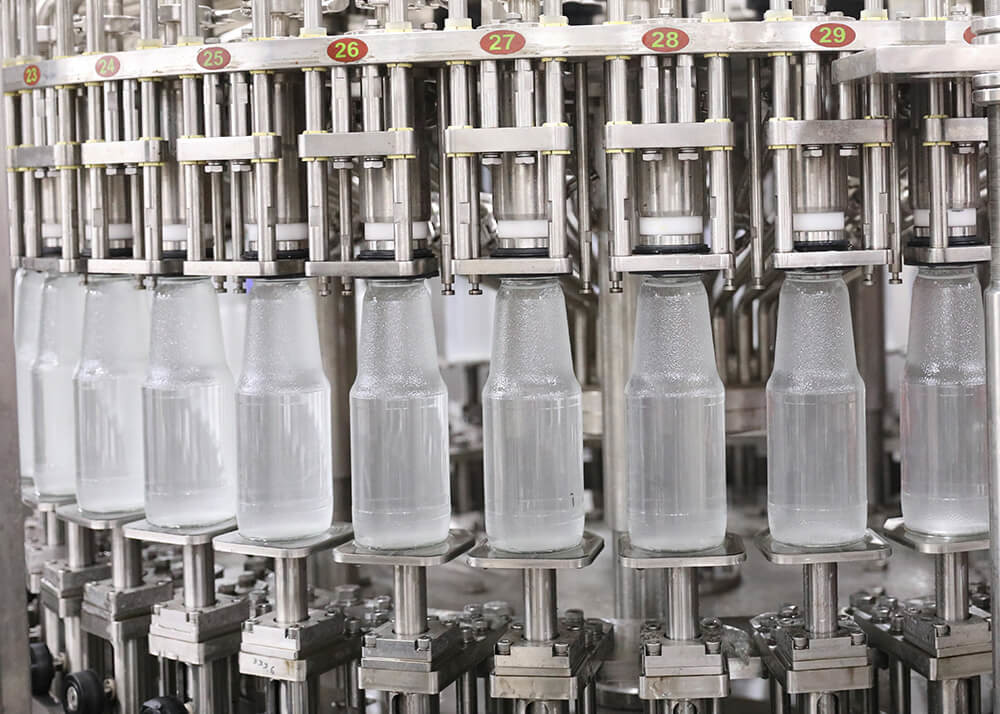

Filling part:
Capping part:
Technical parameters:
| Model | RCGF12125 | RCGF18186 | RCGF24248 | RCGF323210 | RCGF404012 | RCGF505012 | RCGF606015 | RCGF808020 |
| washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
| Production capacity(600ml) (B/H) |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110=170 330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
| Overall dimensions (mm) | 2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
7680×6640 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 15000 |
