12000BPH Fruit Juice Beverage Filling Machine Capping Bottling For 1L Glass Bottled

Basic Information

Place of Origin:	Jiangsu, China
Brand Name:	Sunswell
Certification:	CE SGS
Model Number:	BRXGF

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	60 days after receiving down payment
Payment Terms:	L/C, T/T
Supply Ability:	10 sets/month

Get Best Price Contact Now

Voltage:	Customized	Driven Type:	Electric
Type:	Filling Machine	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Packaging Material:	Wood	Warranty:	1 Year
Material:	Stainless Steel 304/316	Function:	Bottle Washing Filling Capping
Product Name:	Juice Filling Machine	Bottle Type:	Galss Bottle
Highlight:	automatic liquid filling machines , liquid filling equipment

Automatic 12000BPH 1L Glass Bottled Fruit Juice Beverage Filling Capping Bottling Machine

General description:

The machine for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated juice, tea, vitamin drinks and functional drinks to be one of the advanced room filling production line.

12000BPH Fruit Juice Beverage Filling Machine Capping Bottling For 1L Glass Bottled 0

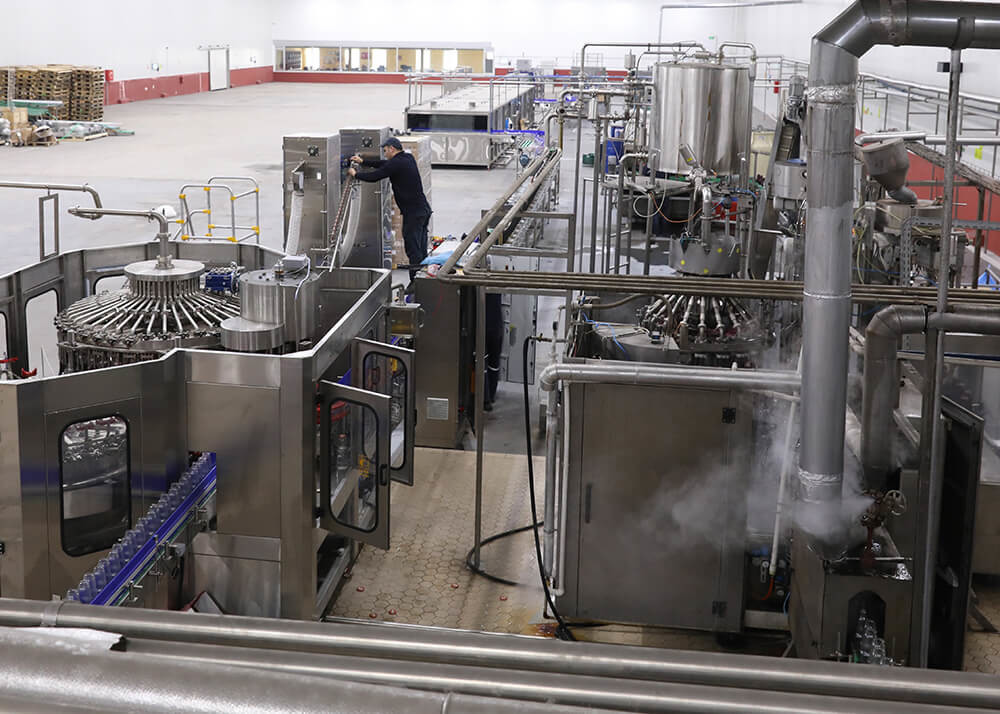

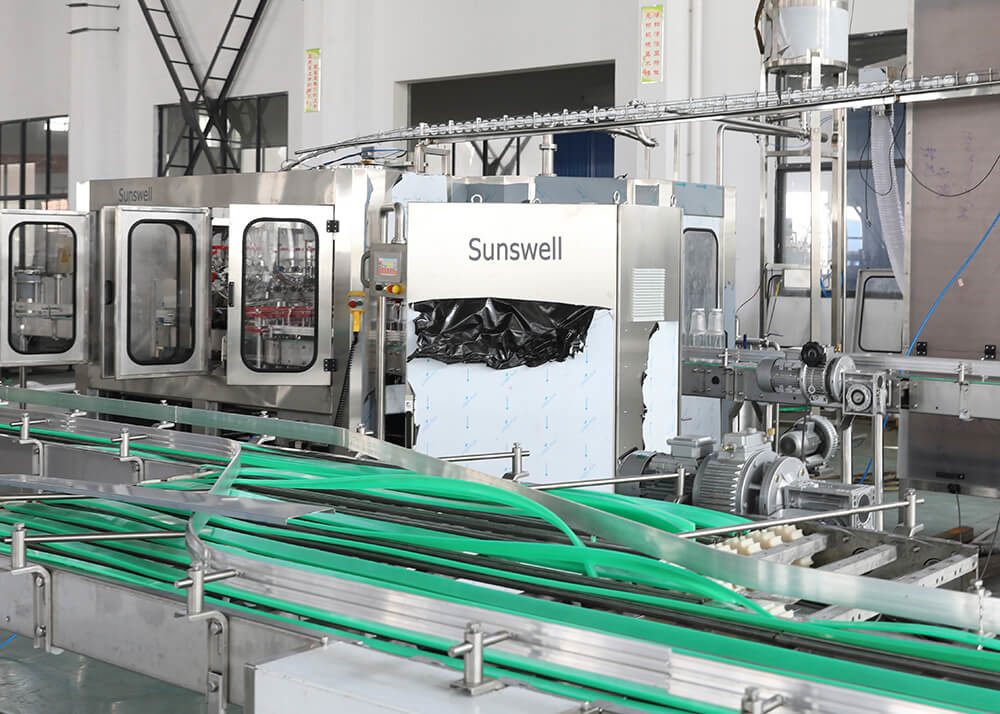

This 12,000BPH, 1L Glass bottled juice filling and packaging production line is to be shipped to Turkey.

The whole production line consists of

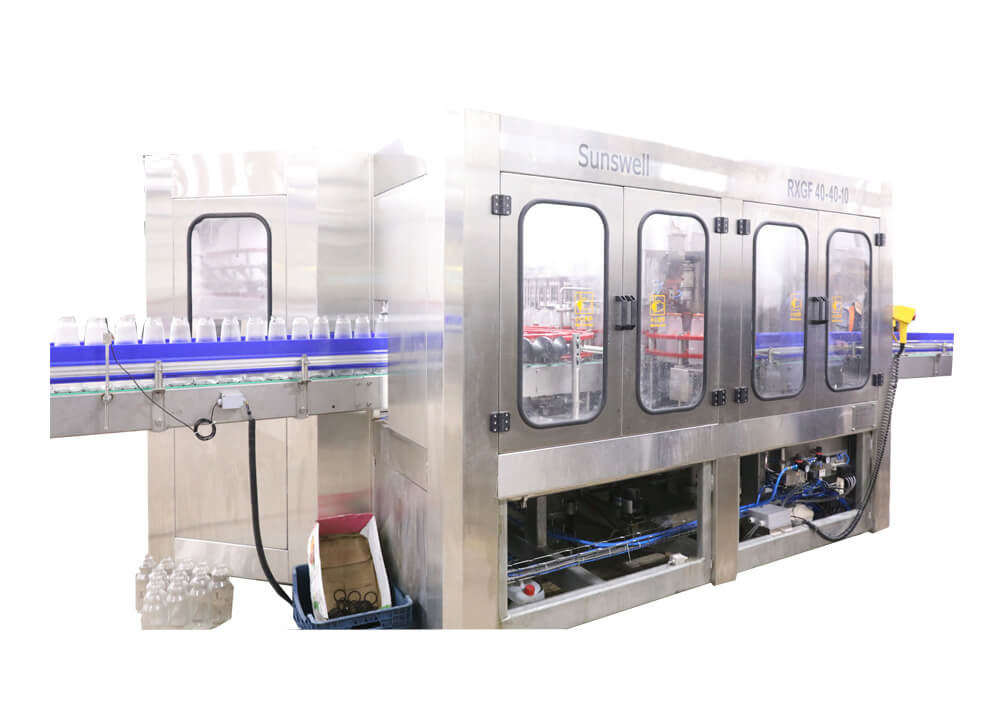

RXGF 40-40-10 Glass bottle washing-filling-capping 3-in-1 monobloc, with the filling temperature of 95C.
Hot water washing system
Tilting device after filling
Cooling tunnel to cool the 95C hot juice
Ropp hot melt glue labeling machine (self adhesive, PVC labeling machine offered)
Half tray shrink wrapping machine
275m stainsteel bottle conveyors linked of the whole line.

12000BPH Fruit Juice Beverage Filling Machine Capping Bottling For 1L Glass Bottled 1

Main configuration:

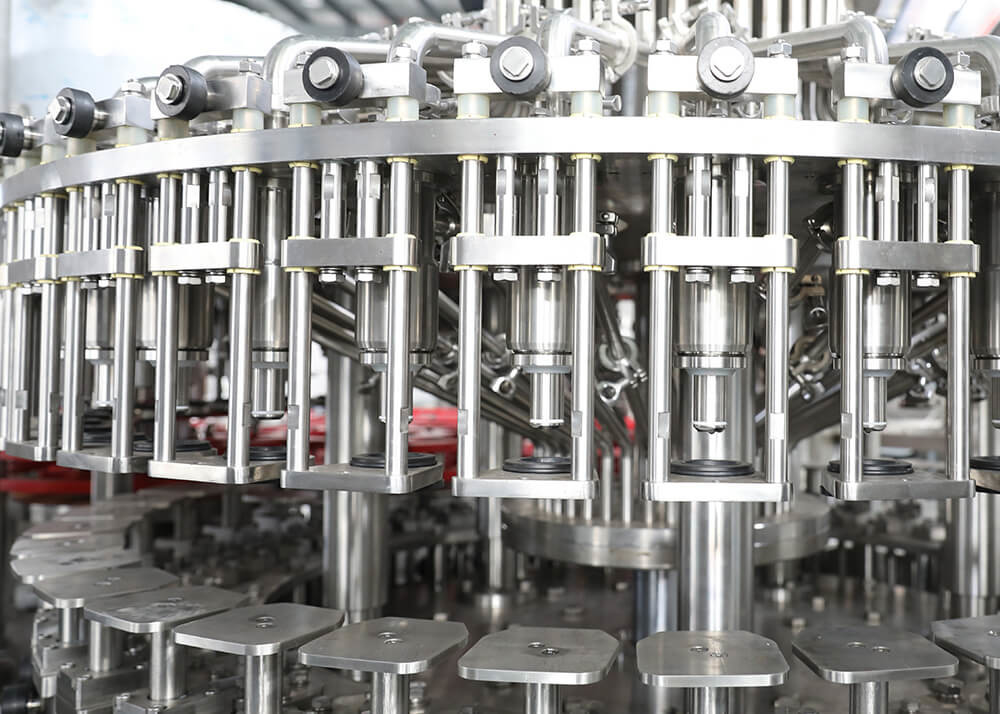

Material of filling valve: Stainless steel SUS304

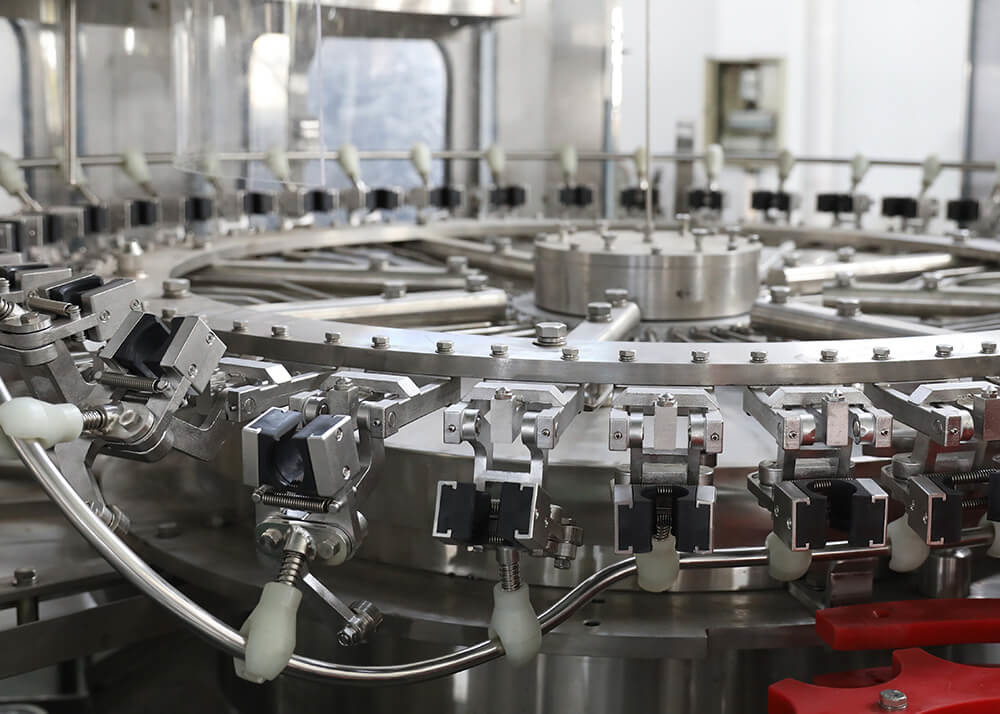

Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304
Main motor: ABB
Sliding bearing: Igus
Frequency inverter: Mitsubishi
Touch screen: Pro-face
PLC: Mitsubishi
Pneumatic components: Airtac
Photocell switch: Sick
Proximity switch: Sick

Main parameters:

Model: BXGFF40-40-10
Working Position: rinsing 40, filling 40, twist-off capping 10
Rated Capacity: 12,000BPH (1000ml)
Bottle Size: diameter ¢50-96mm; height 165-310mm
Air Supply Pressure: 0.7MPa
Air Consumption: 0.8M3/min
Rinsing Water Pressure: 0.2-0.25 MPa
Consumption of Rinsing Water: 3T/hr
Way of Filling: Gravity Filling
Main Motor Power: 5.5KW
Installed Power: 9KW
Dimension: 4300×2930×2750mm (L×W×H)
Weight: 7800Kg

12000BPH Fruit Juice Beverage Filling Machine Capping Bottling For 1L Glass Bottled 2

Technical parameters:

Model	RCGF12125	RCGF18186	RCGF24248	RCGF323210	RCGF404012	RCGF505012	RCGF606015	RCGF808020
washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	7680×6640 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	15000
