Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | BDXGF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 60 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Voltage: | 220V/380V | Type: | Filling Machine |
|---|---|---|---|
| Application: | Beverage | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Warranty: | 1 Year |
| Material: | Stainless Steel 304/316 | Name: | 3 In 1 Beer Filling Machine |
| Function: | Bottle Beer Washing Filling Capping | Filling Material: | Beer |
| Highlight: | beer bottle filling machine,beer filling machines |
||

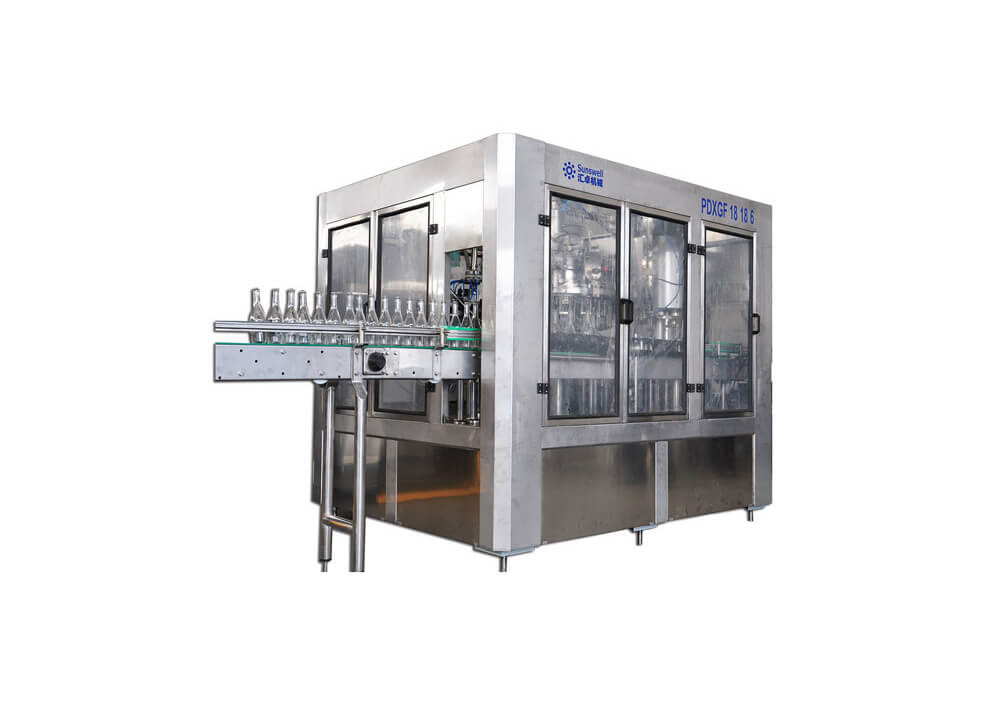

Full Automatic 3-in-1 Glass Bottled Beer Carbonated Drinks Beverage Washing Filling Capping Bottling Packing Machine
General description:
Sunswell beer washing filling capping 3-in-1 unit has the latest technology in accordance with the technological requirements for packaging beer in glass bottles by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling production line for the beer breweries.
Our beer filling machine is the introduction of German technology, through digestion and absorption, combined with the characteristics of China's beer industry, beer filling and capping designed washing equipment, this machine adopts gear transmission. Stable conveying, filling is stable and reliable, convenient adjustment, the machine is set with automatic control for bottle and no bottle cap and no cap, stable performance.Advanced technology.The whole size can be accommodated in standard containers for convenient transportation.
We use double vacuum pumping technology to minimize the content of Oxygen to keep the taste of beer fresh and shelf life time long.
Beer bottling line Main configuration:
1) Material of filling valve: Stainless steel SUS316L
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304
3) Main motor: Simens
4) Sliding bearing: Igus
5) Frequency inverter: Mitsubishi
6) Touch screen: Mitsubishi
7) PLC: Mitsubishi
8) Pneumatic components: Airtac
Beer bottling line Parameter:
| Model | Capacity | Power | Dimension | Weight |
| GF 18-18-6 | 6000BPH | 1.5KW | 2000X1600x2550 | 3000 |
| GF 24-24-8 | 9000BPH | 3KW | 2200x1820x2550 | 3500 |
| GF 32-32-8 | 12000BPH | 4 KW | 2300x2030x2550 | 4000 |
| GF 40-40-10 | 15000BPH | 5KW | 2500x2200x2550 | 4500 |
