Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | PET ALL |
| Certification: | CE&ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Type: | Filling Machine | Voltage: | 220V/380V |
|---|---|---|---|
| Condition: | New | Packaging Type: | Bottles |
| Application: | Beverage | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Packaging Material: | Glass | Filling Material: | Beer |
| Highlight: | beer bottle filling machine,beer filling machines |
||

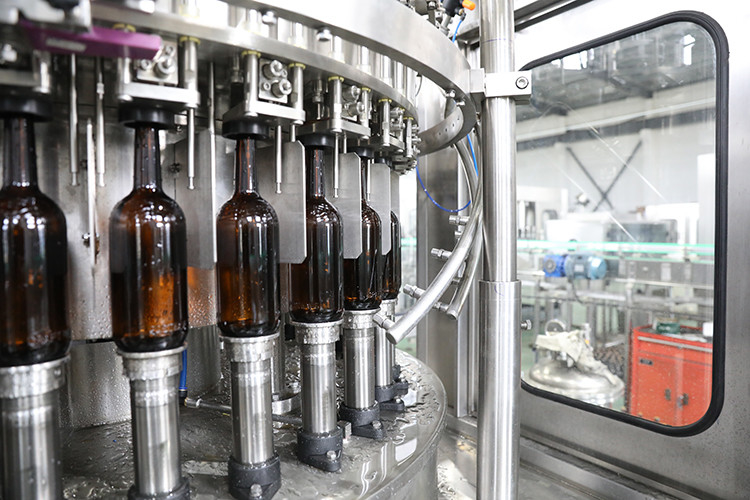

Zhangjiagang Automatic Glass Bottle Small alcoholic drink Beer Rinser Filler Capper Filling Machine Equipment
Additional Info.
Trademark:SUNSWELL
Packing:Iron Tray or Wooden Case
Standard:CE, ISO9001
Origin:Made in China
HS Code:8422301090
Production Capacity:Depending on Your Sample
Product Description
1. With high precision me chanical filling valves, no bottles
2. The beer filling machine is equipped with external mechanical valve .
3. With high pressure frothing device,it is capable of double vacuum-pumping.
4. The machine has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.
5. In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
6. The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.
7. For the centering guide of our beer filling machine,we adopt double guide-bar mechanism,with the function of pre-covering which allows stable and reliable bottle transferring.
8. Also,our beer filling machine has high transmission efficiency,low noise and long life. no vacuumizing .
Basic Info
Model NO.:XGF series
Automatic Grade:Fully Automatic
Structure:Rotary
Feed Cylinder Structure:Single-Room Feeding
Material Type:Liquid
Type:Volumetric Filling Machine
Filling Valve Head:12-60 Heads
Packaging Container Lifting Structure:
Pneumatic Lifting
Filling Principle:Vacuum
Packaging Type:Bottle
Packaging Material:Glass
Product Name:Automatic Beer Filling Machine
Material:Ss304/Ss316
Capacity:1500-16000bph
Suitable Bottle:200-1000ml Glass Bottle
Export Markets:Global
|
Model |
XGF 12/6 |
XGF 18/6 |
XGF 24/8 |
XGF 32/8 |
|
Capacity |
1000-1200 |
2000-3000 |
4000-5000 |
6000-8000 |
|
Motor power |
1.5 |
1.5 |
3.75 |
5.6 |
|
Dimension |
1700x1150x2300 |
1800x1350x2300 |
1900x1600x2500 |
2100x1850x2500 |
|
Total weight |
2000 |
2400 |
3000 |
3500 |
