Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | CGF40-40-10 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Product Name: | Automatic Water Filling Machine | Function: | 3 In 1 |
|---|---|---|---|
| Filling Method: | Gravity Filling | Applications: | Mineral Water... |
| Filling Heads: | 40 | Application: | Beverage |
| Highlight: | automatic liquid filling machines,liquid filling equipment |
||
Sunswell 500ML Full Automatic 3 in1 Drinking Pure Water Production Line beverage Filling Machine
Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc

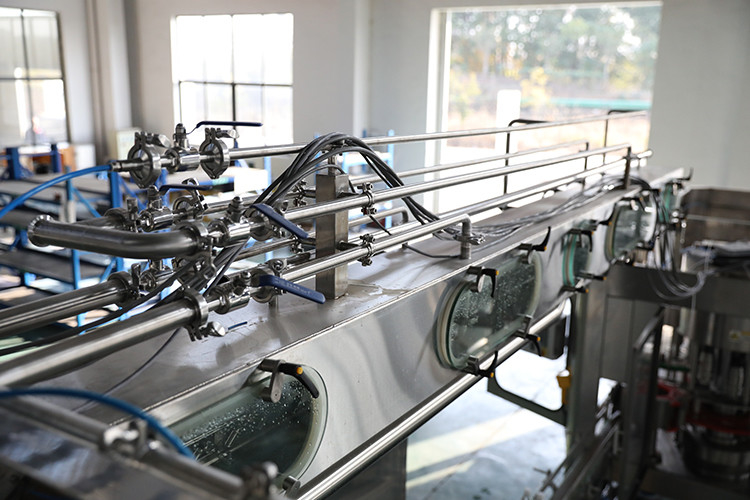

Washing heads
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

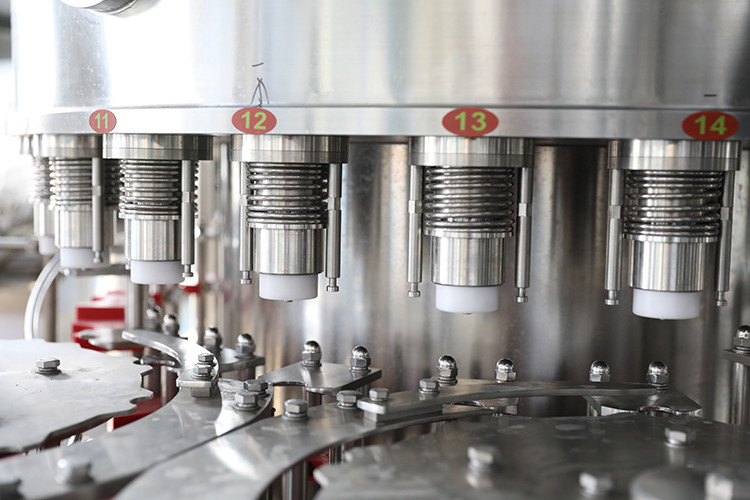

Filling heads
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Specifications:
|
Model |
CGF40-40-10 |
|
Number of working positions |
water rinser 40, filler 40, capper 10 |
|
Rated capacity |
18,000BPH (500ml) |
|
Filling method |
Gravity filling |
|
Applicable bottle |
diameter 50 – 96mm, height 165 – 310mm |
|
Air supply pressure |
0.7 MPa |
|
Air consumption |
0.8M3/min |
|
Rinsing water pressure |
0.2-0.25 MPa |
|
Rinsing water consumption |
3 tons/hour |
|
Main motor power |
5.5Kw |
|
Installed power |
9Kw |
|
Dimensions |
4300×2930×2750mm (L×W×H) |
|
Machine weight |
7800Kg |
