5 Gallon Pure Water Washing Filling And Capping Machine

5 Gallon Pure Water Washing Filling And Capping Machine
5 Gallon Pure Water Washing Filling And Capping Machine 5 Gallon Pure Water Washing Filling And Capping Machine 5 Gallon Pure Water Washing Filling And Capping Machine 5 Gallon Pure Water Washing Filling And Capping Machine 5 Gallon Pure Water Washing Filling And Capping Machine 5 Gallon Pure Water Washing Filling And Capping Machine
Basic Information
Place of Origin: JIANGSU CHINA
Brand Name: SUNSWELL
Certification: CE ISO
Model Number: QGF
Minimum Order Quantity: 1 set
Price: USD 8000-30000 per set
Packaging Details: standard export wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50sets per month
Get Best Price Contact Now
Automatic Grade: Automatic Machinery Capacity:: 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
After-sales Service: Rovided: Online Support, Video Technical Support, Free Spare Parts Application: Food, Beverage, Commodity, Machinery & Hardware
Core Components:: Motor, Pressure Vessel, PLC, Engine Type:: Filling Machine
Packaging Type:: Bottles, Barrel Warranty:: 1 YEAR
Highlight:

5 gallon bottle filling machine

,

5 gallon water bottling machine

General Description

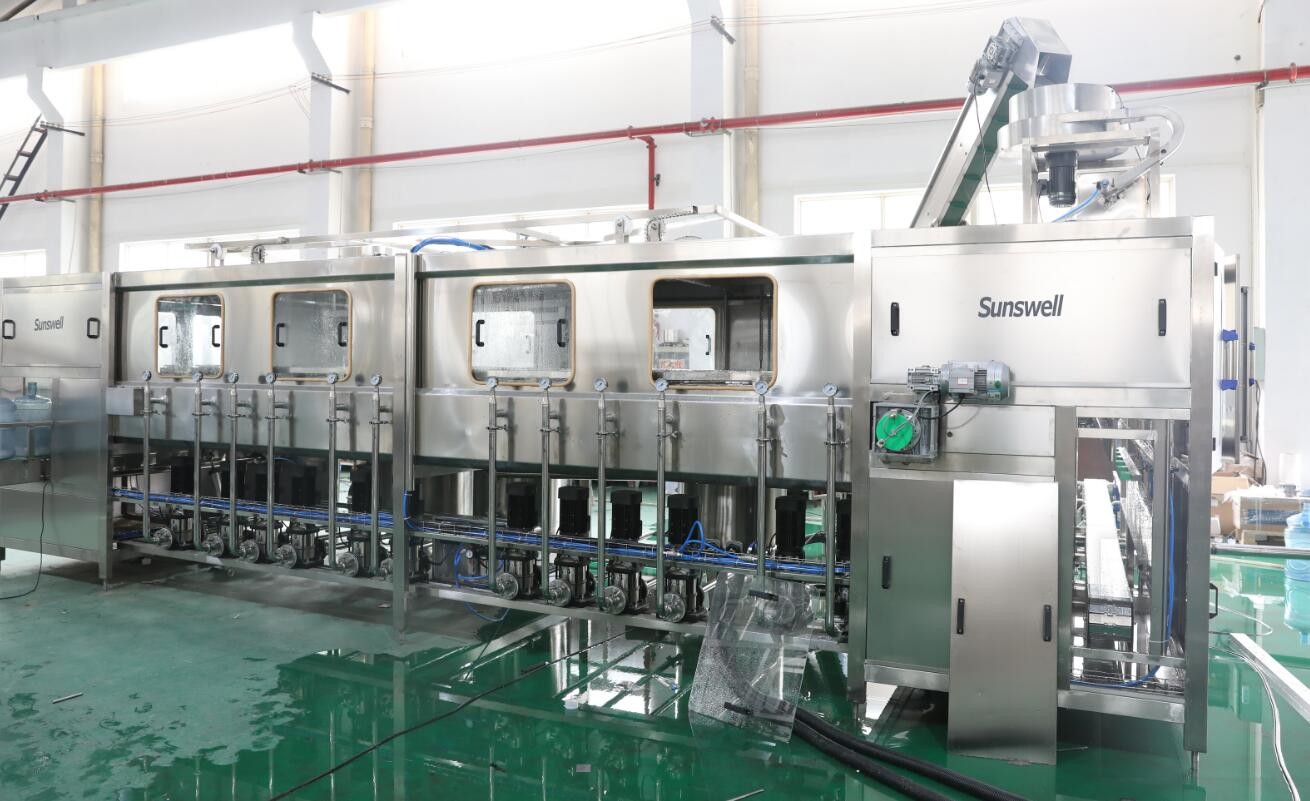

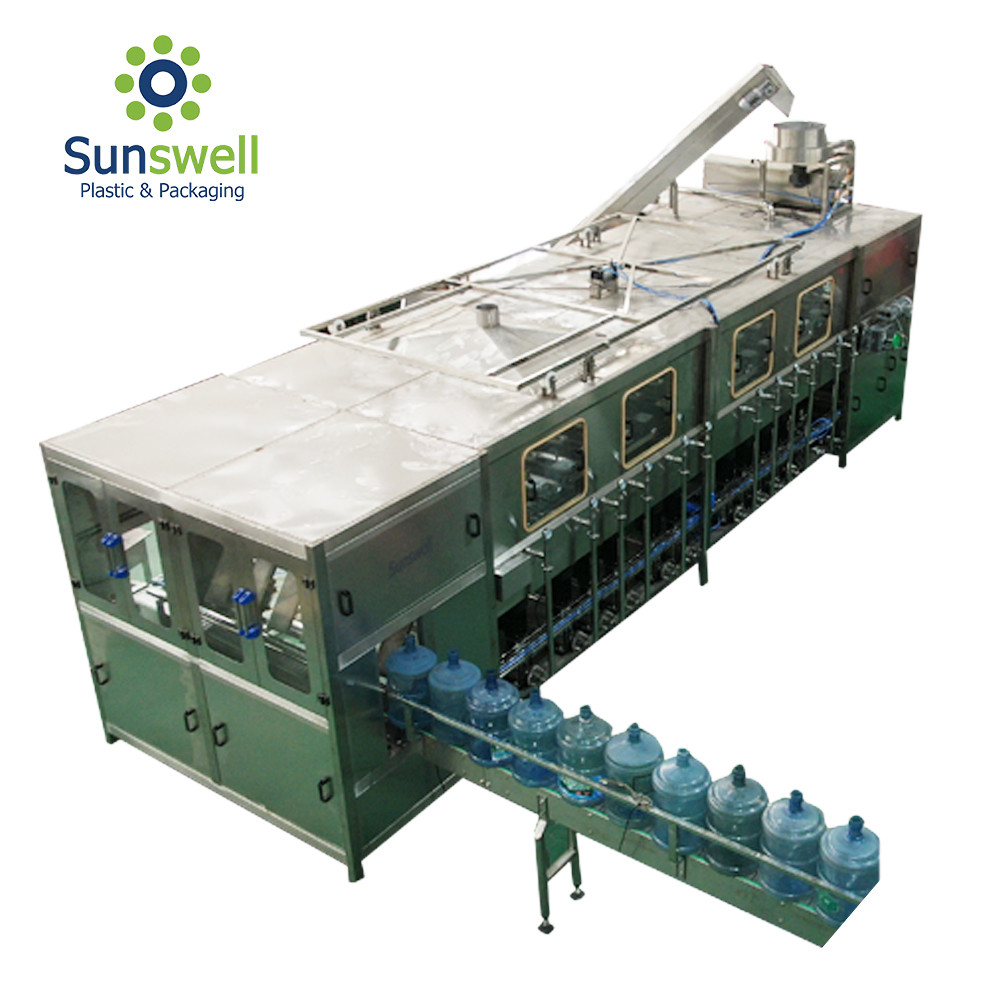

The production line can automatically complete cleaning, loading, sterilizing, filling, capping, heat shrinking, bagging and conveying out of the barrel. It has the features of complete functions, compact structure, simple operation, etc.
Main Equipments:
5 Gallon Pure Water Washing Filling And Capping Machine 05 Gallon Pure Water Washing Filling And Capping Machine 15 Gallon Pure Water Washing Filling And Capping Machine 25 Gallon Pure Water Washing Filling And Capping Machine 3

Cap Decapper

This machine adopts computer control and its capacity can be adjusted.

Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel’s mouth, and increases cap pulling success greatly.
304 stainless machine frame and machine body.


Brush External Bottle Washer

External brusher is corollary equipment for barrel line which produces mineral water and pure water.

Bottom and outside surface will be cleaned completely.

Machine is made of stainless steel which anti-corrosion and easy cleanable.

Adopt bottle-jamming inspection device to decrease damage rate.

It is well designed with reasonable structure and high efficiency, operating stably with highly automation.

Procedure:

Empty bottle→alkali water washing→recycled water washing→ clo2washing→dripping→product water washing→dripping→filling →capping

5 Gallon Pure Water Washing Filling And Capping Machine 4

5 Gallon Pure Water Washing Filling And Capping Machine 5

5 Gallon Pure Water Washing Filling And Capping Machine 6
