Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE SGS UL ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | woodern packing suitable for sea shipment |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Application:: | Beverage | Driven Type:: | Electric |
|---|---|---|---|
| Voltage:: | 220V/380V | Certification:: | CE ISO |
| Function:: | Bottle Washing Filling Capping | Material:: | Stainless Steel |
| Highlight: | 0.5MPa Automatic Soft Drink Filling Machine,4000BPH Automatic Soft Drink Filling Machine,350ml Automatic Soft Drink Filling Machine |
||
sparkling water bottling plant beverage juice Filling Machine Production Line soft drink filling line liquid filler

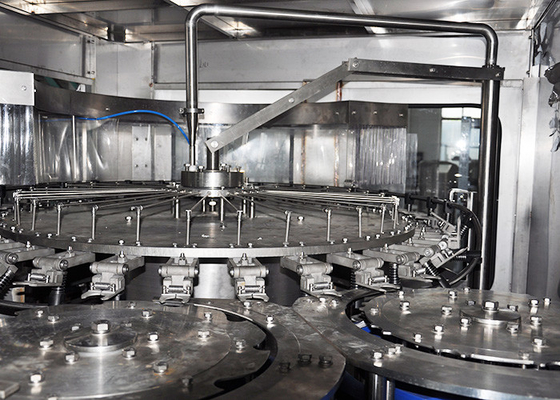

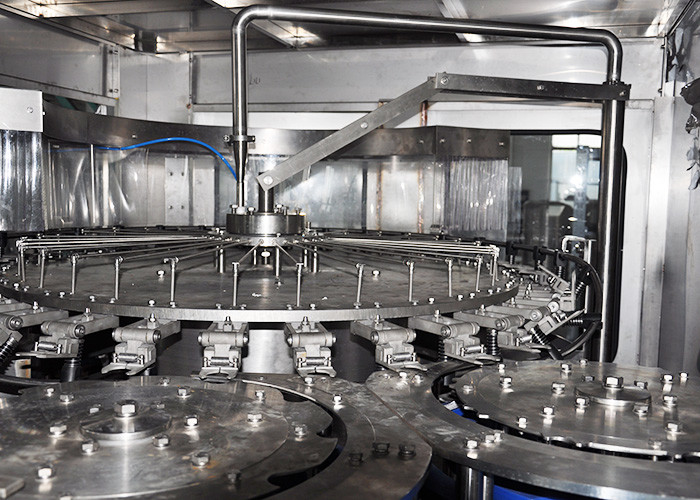

Carbonated drink filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling ,carbonated filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation etc.
Feature
TECHNIQUE PARAMETER
|
|
XGF-3000 |
XGF-12000 |
XGF-15000 |
XGF-18000 |
XGF-24000 |
|
Productivity |
1500-4000BPH |
3000-12000 BPH |
4000-18000 BPH |
6000-18000 BPH |
8000-24000 BPH |
|
Rinsing Head |
18 |
24 |
32 |
40 |
50 |
|
Filling Head |
12 |
24 |
32 |
40 |
50 |
|
Capping Head |
6 |
8 |
10 |
12 |
15 |
|
Bottle Volume |
350ml~2000ml±10ml |
350ml~2000ml±10ml |
350ml~2000ml±10ml |
350ml~2000ml±10ml |
350ml~ 2000ml± 10ml |
|
Bottle Diameter |
φ50-90 mm |
φ50-90 mm |
φ50-90 mm |
φ50-90 mm |
φ50-90 mm |
|
Bottle Height |
150-310 mm |
150-310 mm |
150-310 mm |
150-310 mm |
150-310mm |
|
Filling Tolerance |
±2% |
±2% |
±2% |
±2% |
±2% |
|
Cap Size |
28mm and 30mm PE Standard Caps |
28mm and 30mm PE Standard Caps |
28mm and 30mm PE Standard Caps |
28mm and 30mm PE Standard Caps |
28mm and 30mm PE Standard Caps |
|
Air Pressure |
0.5 MPa |
0.5 MPa |
0.5 MPa |
0.6 MPa |
0.5 MPa |
|
Air Consumption |
500 L/min |
500 L/min |
500 L/min |
500 L/min |
500 L/min |
|
Filling Water Consumption |
1.5 m3/h |
6 m3/h |
7.5 m3/h |
9 m3/h |
9 m3/h |
|
Rinsing Water Consumption |
0.5 m3/h |
2 m3/h |
2.5 m3/h |
3 m3/h |
3 m3/h |
|
Motor Power |
3.5kW |
4kW |
7.5kW |
7.5kW |
7.5kW |
|
Voltage |
380V |
380V |
380V |
380V |
380V |
|
Dimension |
(L×W×H) 2700×1600×2750 mm |
(L×W×H) 3200×2150×3100 mm |
(L×W×H) 3820×3000×3250 mm |
(L×W×H) 4070×3200×3250 mm |
(L×W×H) 4950×3850 ×3250mm |
|
Weight |
2500kg |
5300kg |
8000kg |
12000kg |
13000kg |
|
Filling Principle |
Gravity Filling |
Gravity Filling |
Gravity Filling |
Gravity Filling |
Gravity Filling |
Quick Details
|
Type: |
Filling Machine |
Condition: |
New |
Application: |
Beverage |
|
Packaging Type: |
Bottles |
Packaging Material: |
Metal |
Automatic Grade: |
Automatic |
|
Driven Type: |
Electric |
Power: |
about7.5kw |
Place of Origin: |
Jiangsu China (Mainland) |
|
Brand Name: |
Sunswell |
Model Number: |
XGF Hot Filling Machine |
Material: |
304/316 Stainless Steel |
|
Product: |
Juice, tea & soft drink |
Speed: |
3000-36000 BPH |
Principle: |
Gravity Hot Filling Machine |
Packaging & Delivery
|
Packaging Detail: |
wooden cases |
|
Delivery Detail: |
45-60days |
Specifications
Automatic 3 In 1 Hot Filling Machine
1) 3000-36000BPH
2) Rinsing-filling-capping 3 in 1
