Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | TGX-450 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(l*w*h): | According To 5 Gallon Bucket Water Filling Line |
|---|---|---|---|
| Voltage: | 380V 50HZ 3P Or Customized | Application: | Beverage |
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Highlight: | 450BPH 5 Gallon Water Filling Machine,150BPH 5 Gallon Water Filling Machine,300BPH 5 Gallon Water Filling Machine |
||

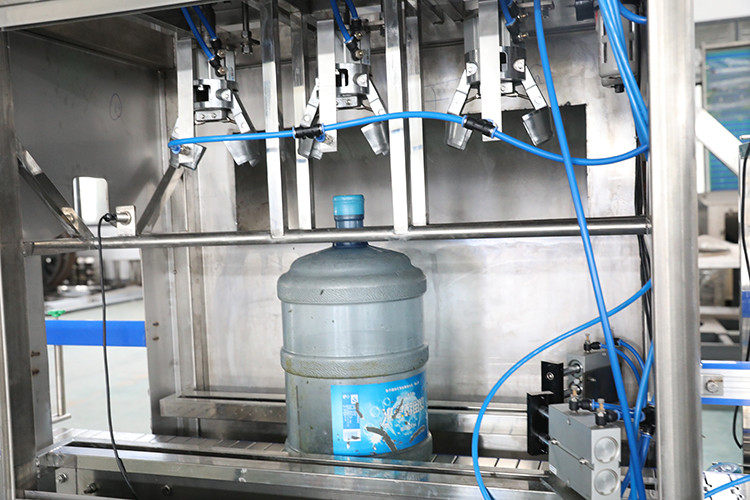

150BPH 300BPH 450BPH 600BPH 900BPH 20 Liter Bottled 5Gallon Barrel 20L Water Bucket Jar 5 Gallon Water Filling Machine
Production Capacity: 100 - 1200 Bottles/Hour
Bottle Material: Plastic (PC/PET/PP) Suit for bottle size: 3 Gallon 4 Gallon, 5 Gallon and 6Gallon can also be applied, but the sample bottle shall be provided. (1 Gallon=3.75Liter)
We will assist you with establishing your bottled water plant from the conception of the idea to when you are ready to open your plant.
Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Specifications:
|
Model |
TGX-450 |
|
|
Product capacity |
450 barrel/hour |
|
|
Filling head |
3 |
|
|
Equipment size |
3700×1800×2000mm |
|
|
Power supply |
Main machine (KW) |
3.5 |
|
Compressed air |
Air pressure |
0.5Mpa |
|
|
Gas consumption |
1.5m3/min |
|
Washing working position |
circulating water (2 positions) pure water (2 positions) |
Drip working position: 1 pc |
|
|
consumption |
500-800l/hr |
