Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang, Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Model Number: | BFC |
| Minimum Order Quantity: | 1 set |
| Price: | USD12,000~2,000,000/SET |
| Packaging Details: | PE film with carton box / wood packaging |
| Delivery Time: | 60~120 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10sets/season |
| Applicable Industries:: | Food & Beverage Factory | Filling Valve Material:: | Ss316L |
|---|---|---|---|
| Suitable Bottle Volume:: | 330-2250ml | Application: | Beverage |
| Packaging Type: | Bottles | Driven Type: | Electric |
| Highlight: | 8000BPH juice bottle filling machine,4.2kw juice bottle filling machine,8000BPH pet bottle soda filling machine |
||

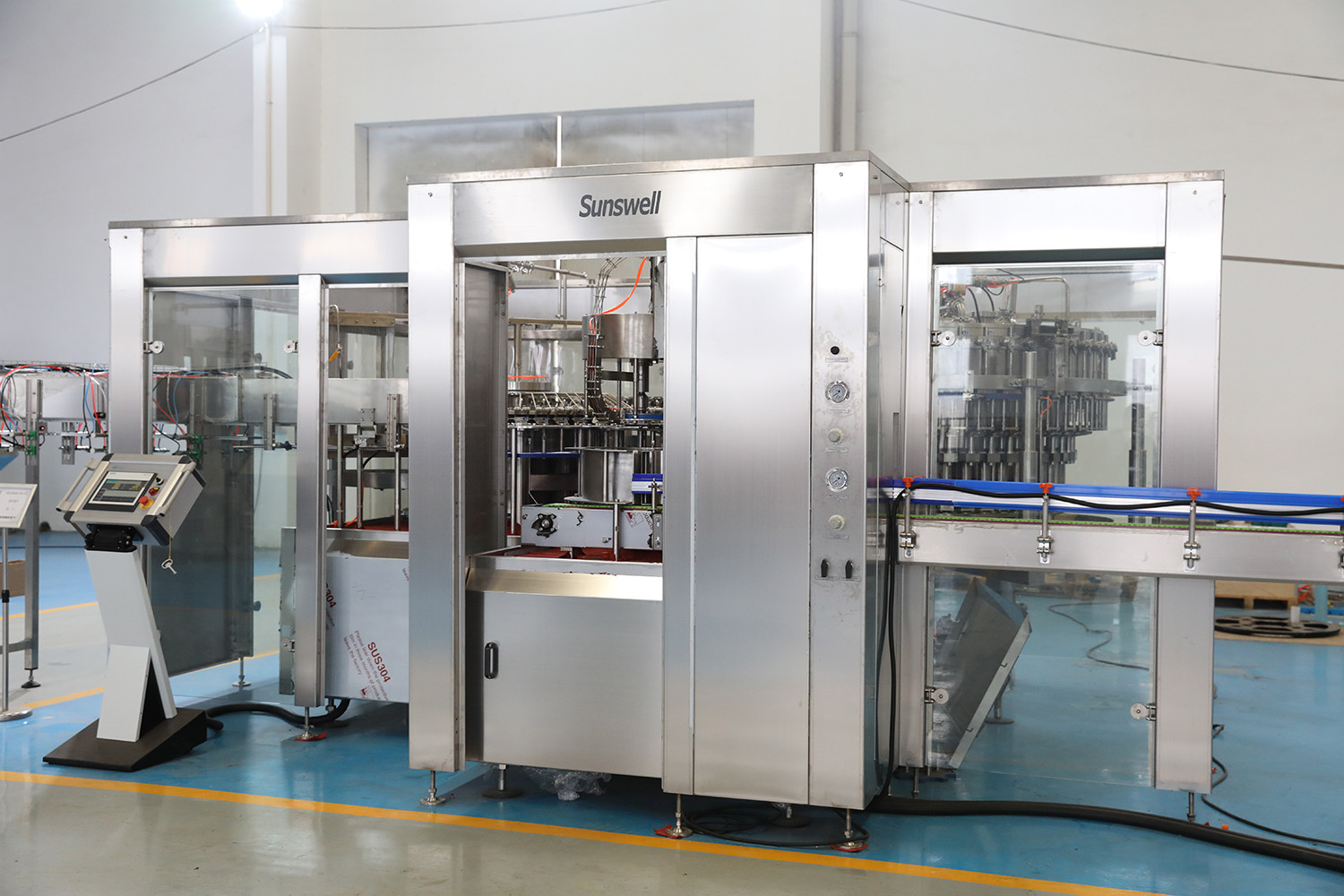

Sunswell Carbonated Beverage Drink Making Machine PET bottle CSD Filling Production Line / Soda Water Bottling Machine
General description:
The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling.Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
Application :
Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee beverage,pulp juice , flavored milk , sports beverage drink,gingerdrink , flavored water drinks. Apple juice ,Orange juice, cherry juice, mango juice ,tomato juice, pineapple juice, guava juice,passion fruit drinks ,papaya juice
Main Structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Product Capacity : 2500-24000bph
| Model | Filling Heads | Capacity | Bottle Size | Power | Dimension(mm) | Weight |
| DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
| DCGF18-18-6 | 18 | 3000bph | 200-2000ml | 2.6kw | 2500*1800*2300 | 3000 |
| DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
| DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
| DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
| DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 8500 |
| DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 10000 |
Deatails of each equipment:
|
1. Bottle infeed Air conveyor, star-wheel cooperate input the bottle, |
2.RinserCarbonated drinks filling machine is rotary washing machine |
|

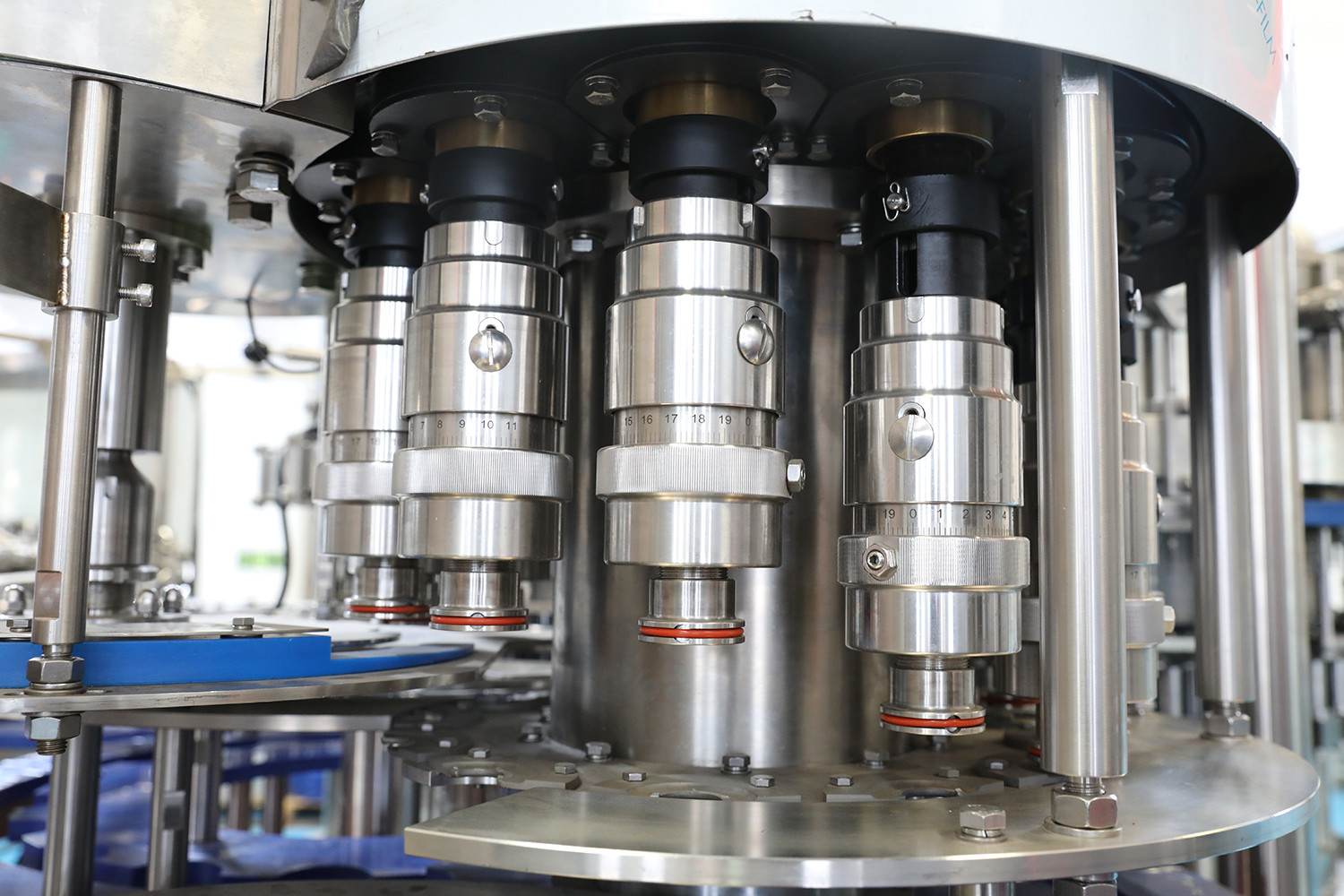

3. Filler Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable. |
4. Capper The bottle into the click wheel through the transition card bottleneck Capping Machine. |
