Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Seaworthy wooden cases plus wrapping film |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
|---|---|---|---|
| Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
| Filling Principle: | Gravity Filling | Filling Accuracy: | ±5% |
| Material: | SUS 304/316L | ||
| Highlight: | 150bph hot filling equipment,19L hot filling equipment,Gravity Filling hot fill bottling machine |
||
1. It is specially used for filling 1 gallon to 5 gallon bottled water.
2. It is a good machine line for the all shapes of bottles.
3. The machine is designed for bottles such as PVC. PE. PET etc. It can be used for different shapes of bottles.
4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, hot steam film shrinkage machine for top quality line.
5. Filling time is controlled by the PLC.
6. The machine adopts high quality stainless steel frame(No. Z304).
7. The machine design appreance is beautiful, easy operation, maintainence and working stable.
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
|
Capacity (BPH/5 Gallon) |
150 | 300 | 450 | 600 | 900 | 1200 | 1500 | 2000 |
| Filling valve | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
Washing-filling-capping machine is the core equipment especially for 5 gallon filling line, which is the ideal equipment for producing mineral water, pure water and still water. It is made of quality stainless steel, anti-corrosion and easy to clean.

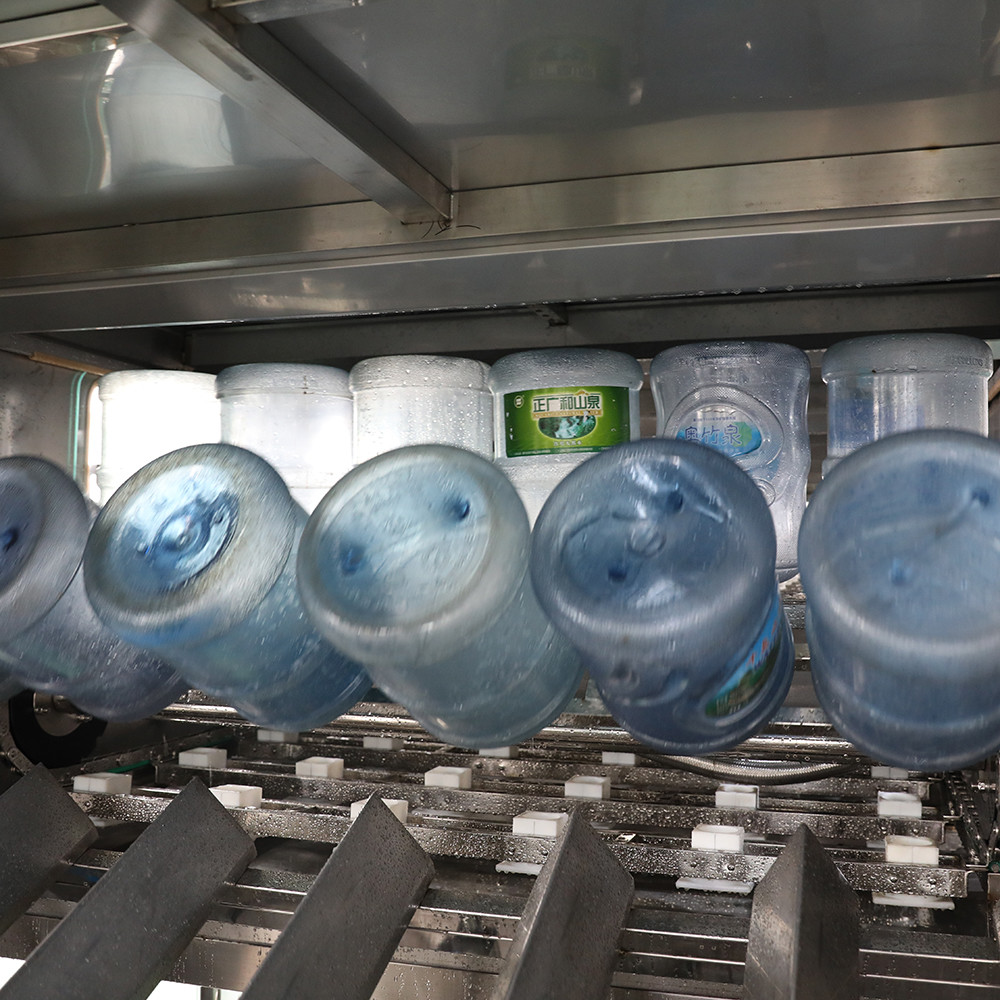

The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.

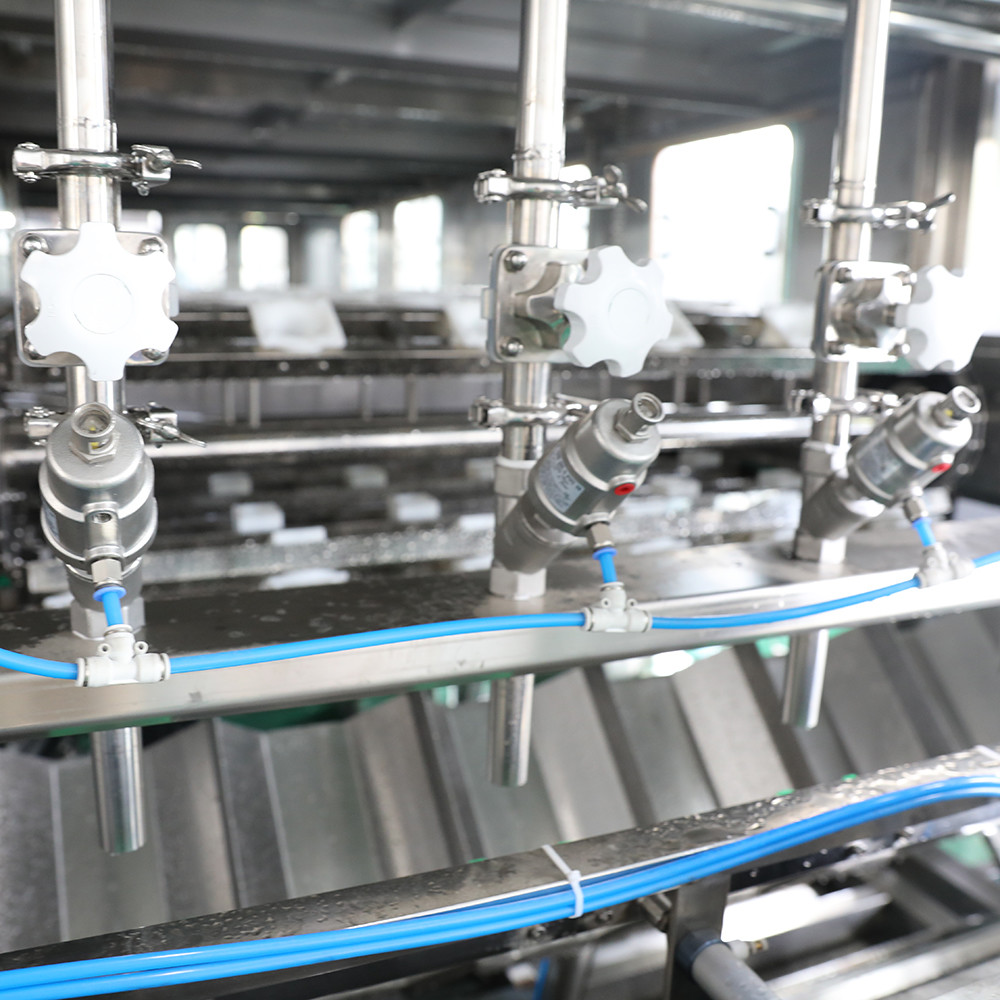

1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.

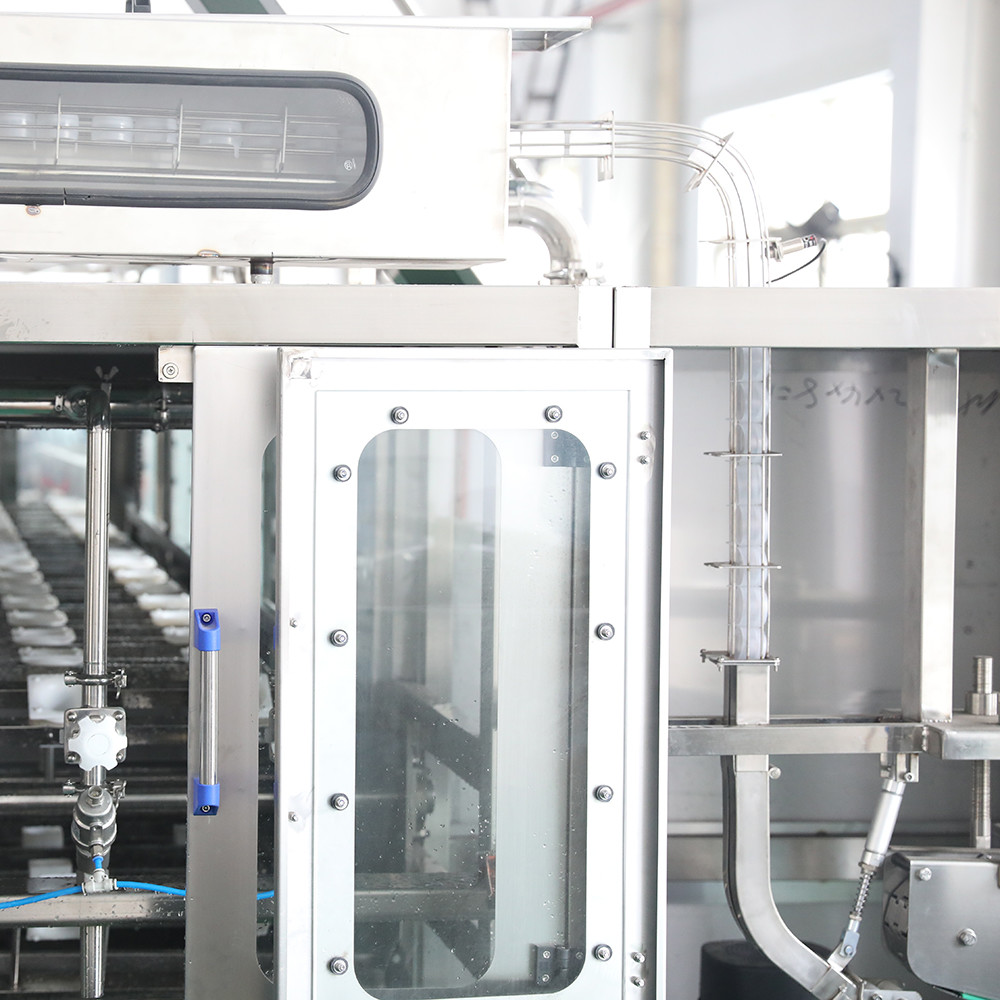

5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
