Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang, Jiangsu, China |
|---|---|
| Brand Name: | sunswell |
| Certification: | CE ISO |
| Model Number: | CGF |
| Minimum Order Quantity: | 1 set |
| Price: | $15,000~$200,000/set |
| Packaging Details: | PE film with carton box packaging |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per year |
| Product Name: | 20 Liter/5gallon Bottled Water Filling Machine | Material: | SS304 |
|---|---|---|---|
| Bottle Type: | PET Plastic Bottle | Driven Type: | Electric |
| Power: | 9KW | Model: | Washer Filler Capper |
| Condition: | New | Automatic Grade: | Automatic |
| Voltage: | 220V/380V/415V Customized | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Highlight: | 20L gallon barrel water filling machine,SS304 barrel water filling machine,PET bottle barrel filling machine |
||
Product Description:

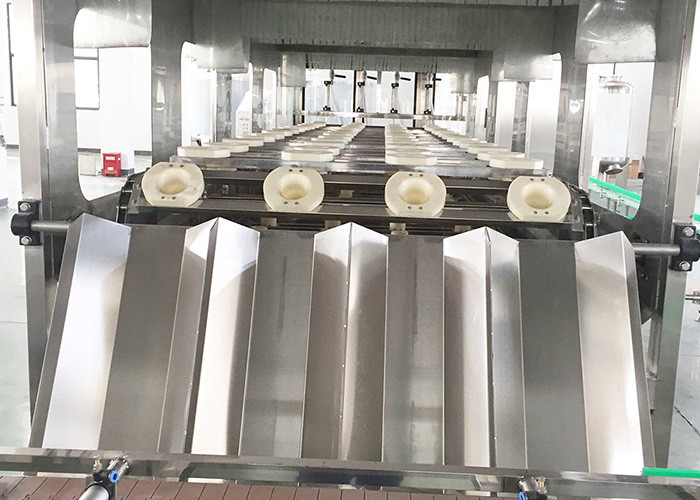

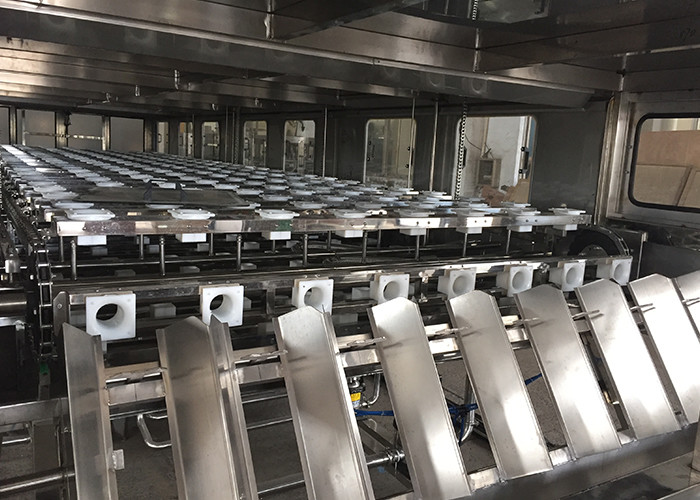

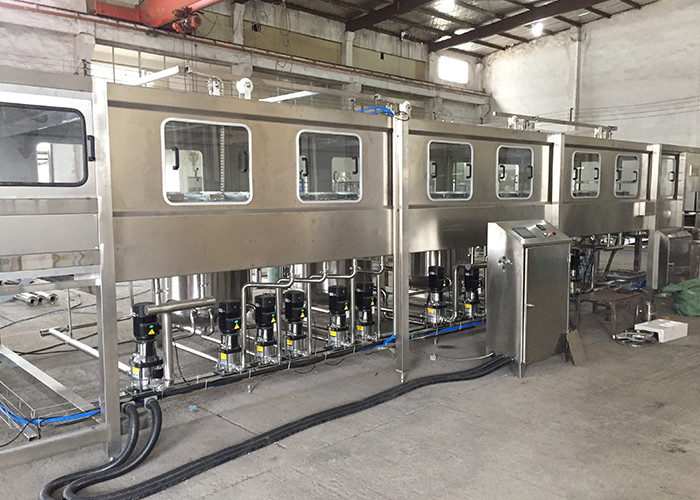

The big barrel water filling machine integrates bottle washer, filler and sealer into one unit ,in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer, Washing solution can boused circularly.
|
Model
|
QGF-100
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
QGF-2000
|
|
Number of filling heads
|
1
|
2
|
3
|
4
|
8
|
12
|
16
|
|
Filling capacity
|
18.9
|
18.9
|
18.9
|
18.9
|
18.9
|
18.9
|
18.9
|
|
Barrel size (mm)
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
φ270×490
|
|
Production capacity (b/n)
|
100-120
|
200-240
|
300-400
|
600
|
900
|
1200
|
2000
|
|
Gas pressure (Mpa)
|
0.4-0.6
|
0.4-0.6
|
0.6
|
0.6
|
0.6
|
0.6
|
0.6
|
Advantages:
Details
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
