Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang, Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Price: | USD10500~2,000,0/SET |
| Packaging Details: | PE film with carton box / wood packaging |
| Delivery Time: | 60~120 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10sets/season |

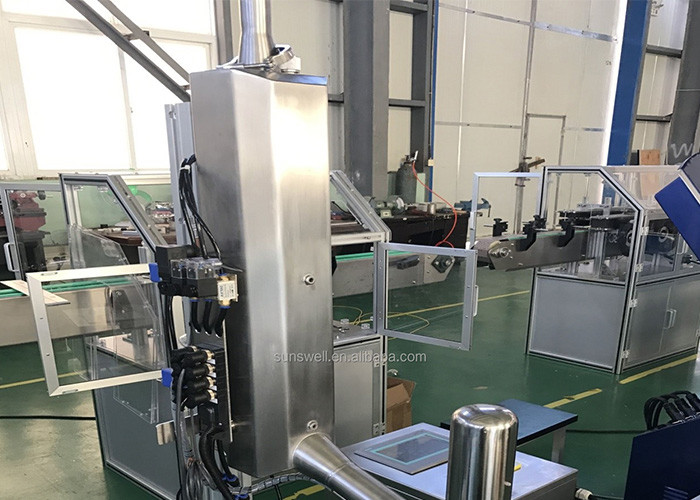

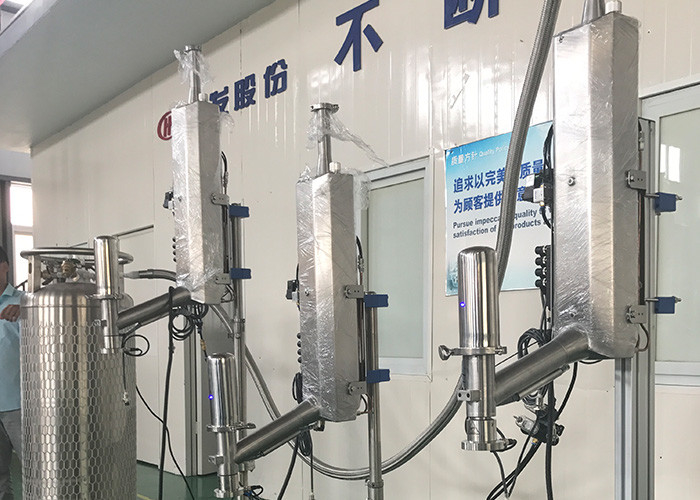

| Product Name: | Liquid Nitrogen Dosing Machine For Plastic Bottle Juice | Function: | Increase Force Strength,extend Shelflife |
|---|---|---|---|
| Capacity: | 100-500Bottle/min | Control: | Automatic PLC Control |
| Nitrogen Tank: | Nitrogen Container | Application: | Bottles, Aluminum Can |
| Certification: | CE, ISO | ||
| Highlight: | 500BPM liquid nitrogen dosing machine,vacuum liquid nitrogen dosing machine,500BPM liquid nitrogen maker |
||
Vacuum filling systems draw product into the container by using constant vacuum suction.once the filling level required reaches,the excess product will be drawn through the auto-drainage system and back into the product tank.The fill level of the container is determined by the depth of the vacuum heads within the neck of container,so that the fill level will be the same regardless of bottle inconsisencies.
Features:
1. Vacuum liquid nitrogen heat insulation pipe ensures the minimum liquid nitrogen consumption.
2.Dosing quantity will plus or minus according different speed feedback to ensure dosing consistency.
3. Front temperature monitoring function is plus or minus liquid nitrogen dosing quantity automatically according to the changes of filling temperature.
This is a important function, and no import device is with this function for now.
4.Advanced dosing valve ensures transport pure and liquid nitrogen.
5. Lowest outlet pressure of dosing valve ensures minimum liquid nitrogen splash.
6. No frost operating condition, 24 hours working without ice blockage with continuous power and liquid nitrogen.
7.Dosing Time could correct to 1MS during operation process.
8.Continuous self-monitoring through alarm indicator
9.Chinese and English for optional in touch screen
10.Small size and simple installation.
11.Precise control liquid nitrogen dosing
12. User could adjust liquid nitrogen dosing easily through micro-adjustment button in touch screen while it is running
13.Could be used in continuous production for twenty-four hours
14. No container No dosing
15. More other speed liquid nitrogen dosing machines for optional to suit other capacity production lines.
Specification:
Rated input voltage: 110VAC-60Hz/220VAC-50Hz +/-10%
Electricity: ≤5A
Humidity: Relative humidity 0%-100%
Working altitude: 3050 meters (10000FT) above the sea level
Noisy: Continuous noise≤78dB(A)
Weight: 32KG
Capacity: Max. Speed could reach to 300 cans per min.
Operating Conditions:
1,Supple of Liquid Nitrogen: Regulate to 0.4-0.8Mpa and connect to vacuum pipe.
2,Compressed Air or Nitrogen: Supply to working of dosing valve. The pipe pressure range is from 0.4Mpa to 0.6Mpa.
3,CGA295 connector between liquid nitrogen tank and vacuum pipe.
Nitrogen tank:
