Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang, Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Model Number: | BFC |
| Minimum Order Quantity: | 1 set |
| Price: | USD12,000~2,000,000/SET |
| Packaging Details: | PE film with carton box / wood packaging |
| Delivery Time: | 60~120 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10sets/season |
| Applicable Industries:: | Food & Beverage Factory | Filling Valve Material:: | Ss316L |
|---|---|---|---|
| Suitable Bottle Volume:: | 330-2250ml | Application: | Beverage |
| Packaging Type: | Bottles | Driven Type: | Electric |
| Highlight: | Rotary Type Beverage Filling Machine,330ml Beverage Filling Machine,330ml beverage filler |
||
Product Description:
carbonated beverage filling machine is suitable for packing beverage containing gas. carbonated beverage filling machine 's performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature
Product Capacity : 2500-24000bph
| Model | Filling Heads | Capacity | Bottle Size | Power | Dimension(mm) | Weight |
| DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
| DCGF18-18-6 | 18 | 3000bph | 200-2000ml | 2.6kw | 2500*1800*2300 | 3000 |
| DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
| DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
| DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
| DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 8500 |
| DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 10000 |
Deatails of each equipment:
|
1. Bottle infeed Air conveyor, star-wheel cooperate input the bottle, |
2.RinserCarbonated drinks filling machine is rotary washing machine |
|

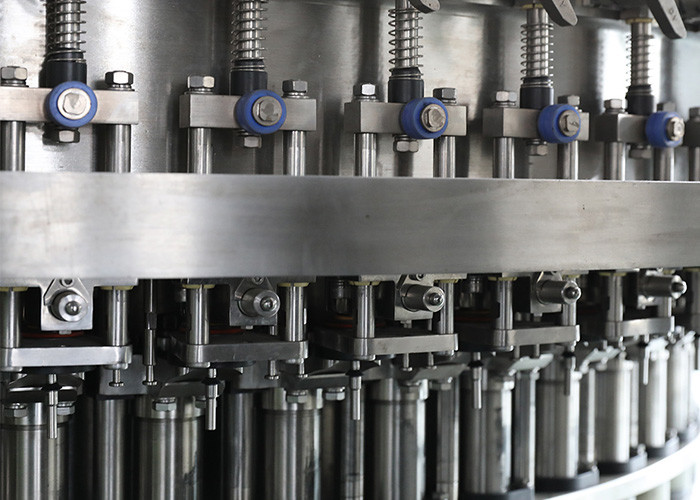

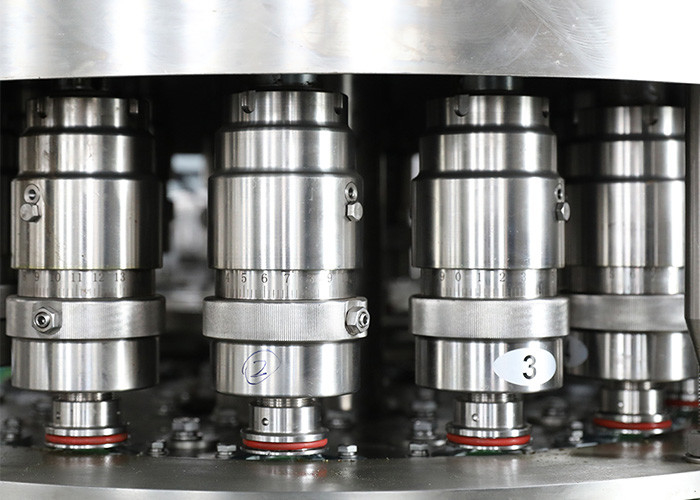

3. Filler Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable. |
4. Capper The bottle into the click wheel through the transition card bottleneck Capping Machine. |
