Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang, Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Model Number: | BFC |
| Minimum Order Quantity: | 1 set |
| Price: | USD12,000~2,000,000/SET |
| Packaging Details: | PE film with carton box / wood packaging |
| Delivery Time: | 60~120 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10sets/season |
| Applicable Industries:: | Food & Beverage Factory | Filling Valve Material:: | Ss316L |
|---|---|---|---|
| Suitable Bottle Volume:: | 330-2250ml | Application: | Beverage |
| Packaging Type: | Bottles | Driven Type: | Electric |
| Highlight: | 6500bph Beverage Filling Machine,electric driven Beverage Filling Machine,6500bph automatic juice filling machine |
||

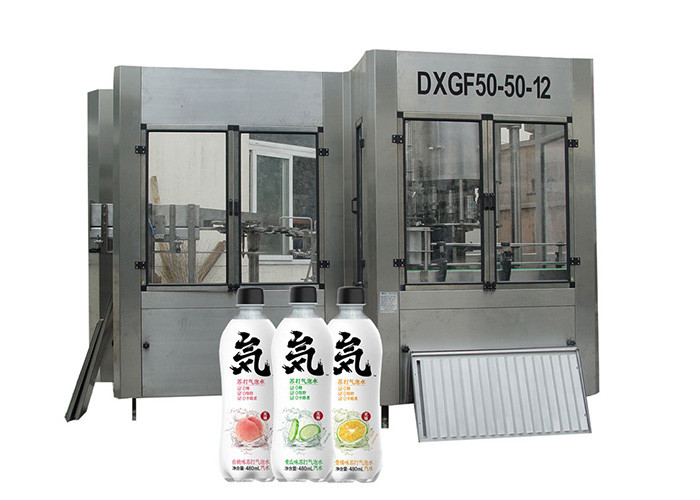

The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with a temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine tofill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
/Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Product Capacity : 2500-24000bph
| Model | Filling Heads | Capacity | Bottle Size | Power | Dimension(mm) | Weight |
| DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
| DCGF18-18-6 | 18 | 3000bph | 200-2000ml | 2.6kw | 2500*1800*2300 | 3000 |
| DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
| DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
| DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
| DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 8500 |
| DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 10000 |
Deatails of each equipment:
1. Bottle infeed Air conveyor, star-wheel cooperate input the bottle, | 2.RinserCarbonated drinks filling machine is rotary washing machine |

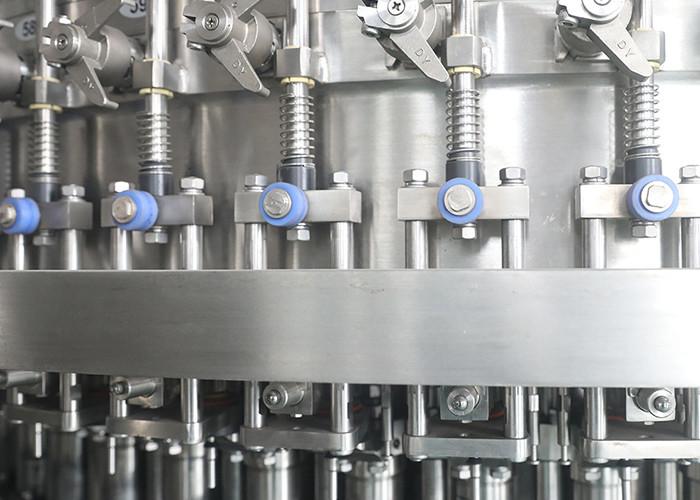

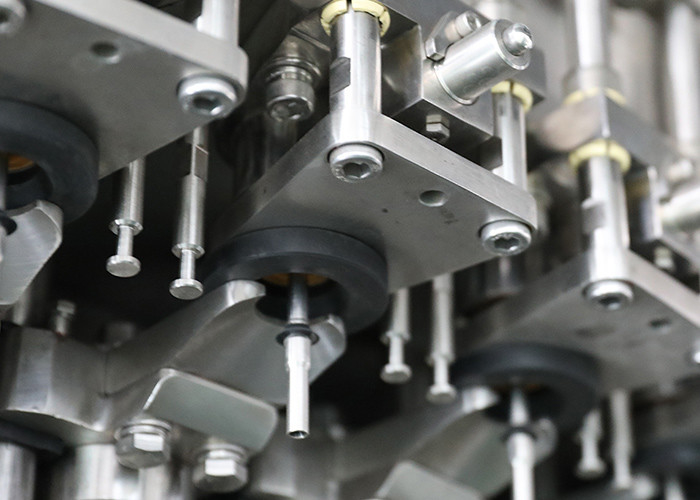

3. Filler Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable. | 4. Capper The bottle into the click wheel through the transition card bottleneck Capping Machine. |
