Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Zhangjiagang, Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE |
| Model Number: | BFC |
| Minimum Order Quantity: | 1 set |
| Price: | USD12,000~2,000,000/SET |
| Packaging Details: | PE film with carton box / wood packaging |
| Delivery Time: | 60~120 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10sets/season |
| Applicable Industries:: | Food & Beverage Factory | Filling Valve Material:: | Ss316L |
|---|---|---|---|
| Suitable Bottle Volume:: | 330-2250ml | Application: | Beverage |
| Packaging Type: | Bottles | Driven Type: | Electric |
| Highlight: | PET bottled Beverage Filling Machine,PET bottled fruit juice filling machine,Electric driven fruit juice filling machine |
||
Automatic carbonated beverage can filling machine
The combined machine is suitable for the filling and sealing of steam cans in beer and beverage industry. it is a steam can filling and sealing unit independently developed on the basis of digesting and absorbing advanced beer cans filling and sealing machines at home and abroad. The filling and sealing are designed as a whole, and the power of the filling system is provided by the sealing system to ensure the absolute synchronization and coordination of the two.The use of the world's most advanced mechanical, electrical and pneumatic control technology, the use of isobaric filling principle, fast filling speed, and stable liquid level after filling less material loss, good sealing quality, smooth operation of the whole machine, beautiful and generous shape, convenient operation and maintenance, production speed conversion speed regulation and so on. The remote control system can be configured according to customer requirements, and it is the ideal equipment of choice for medium-sized beer and beverage factories.
Product Capacity : 2500-24000bph
| Model | Filling Heads | Capacity | Bottle Size | Power | Dimension(mm) | Weight |
| DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
| DCGF18-18-6 | 18 | 3000bph | 200-2000ml | 2.6kw | 2500*1800*2300 | 3000 |
| DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
| DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
| DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
| DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 8500 |
| DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 10000 |

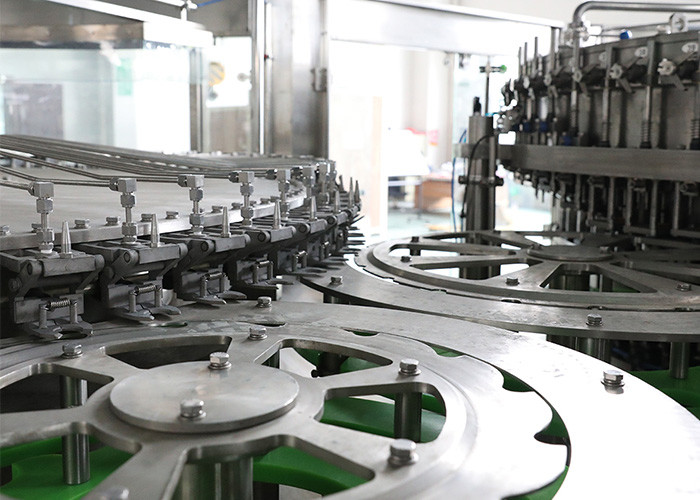

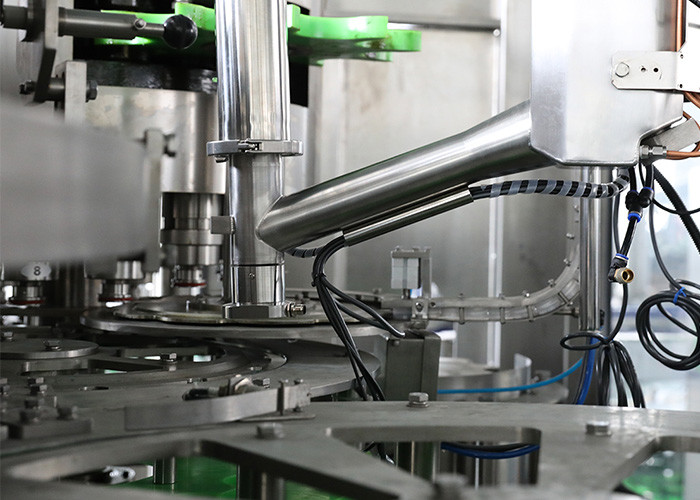

Deatails of each equipment:
1. Bottle infeed Air conveyor, star-wheel cooperate input the bottle, | 2.RinserCarbonated drinks filling machine is rotary washing machine |
3. Filler Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable. | 4. Capper The bottle into the click wheel through the transition card bottleneck Capping Machine. |
