Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE |
| Model Number: | SSW |
| Minimum Order Quantity: | 1 set |
| Price: | USD18,000~250,000/SET |
| Packaging Details: | Packaging Details: Seaworthy wooden cases plus wrapping film Carbonated Soft Drink Filling Equipment small manufacturing machines |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Product Name: | Linear Type Water Filling Machine | Function: | Water Rising Filling Capping |
|---|---|---|---|
| Capacity: | 500-2000BPH | Filling Range: | 5L 10L 15L |
| Type: | Linear Type | Model: | RFC |
| Control: | PLC Control | Bottle Type: | Plastic Bottle |
| Place Of Origin: | Jiangsu Province | Material: | SS304/316 |
| Highlight: | programmable water bottling plant equipment,2000BPH water bottling plant equipment,2000BPH drinking water filling machine |
||
The machine combines washing, filling and capping three function in a body,used to produce polyester bottled mineral water,purified water, alcoholic beverage machinery and other non-gas beverage machinery. The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient. The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. the photoelectric sensor detect all part running state, with high degree of automation ,easy operation.CGF series bottled water filling line includes:Pet bottle blowing machine,Water filling machine,Dryer,Inkject printer,Light inspector,Hot melt glue labeling machine,Carton wrapping around machine,Shrink film packing machine,Palletizer.

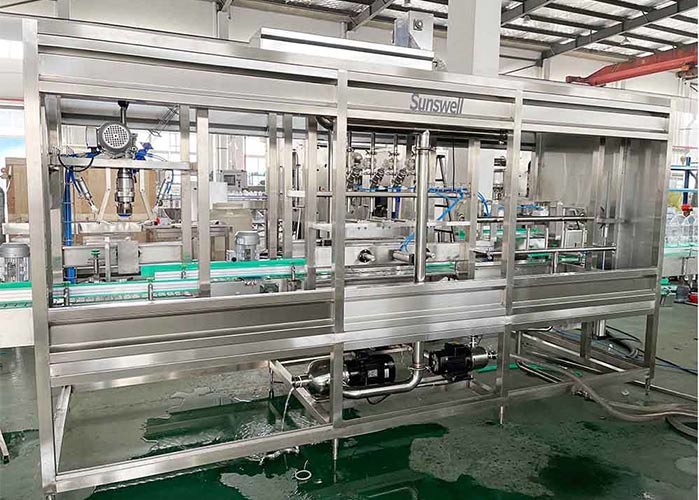

3L, 4L, 5L big bottle linear 3-in-1 Water Filling Machine Main features
Rinsing part
The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through
photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of
cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure
water to the bottle, after 30s, stop it, the oVERTUrn cylinders reset, input the conveyor system and go to filling machine.

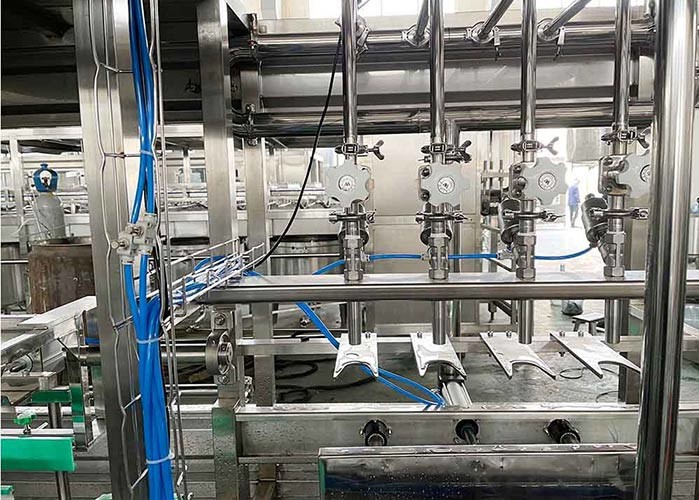

Filling machine
After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then
the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt.
Output to the capping part.
Screw capping machine
The screw capping machine is made of 4 screw capping heads frame, after the filled bottle convey to the screw capping machine
station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.
sealing pure water filling machine.water line for producing bottles water
water bottle filling machine.small bottle filling machine.small bottle filling and capping machine
Our company leads the market in the field of machinery with advanced technologies in terms of our beverage packaging.
We provide a wide range of beverage packaging products. Our machinery has the most comprehensive scope. We enjoy worldwide praise with
10 years of global marketing experience. We have a large number of customers worldwide and we have various end products.
Our product range covers all types of machinery for the packaging of liquid, including water, tea, juice, carbonated soft drink, energy drink, alcoholic drink, beer, edible oil, dairy products, etc.
We provide good quality and technology from raw material to bottled liquid. We are a good supplier, well known for developing innovative high-end products and new technologies.
Our company offers a complete portfolio of support and consulting services, from project engineering to customized solutions and after-sales services. We also provide production optimization, training and advisory services, even end product development. We are looking forward to establishing relationships with you in the near future.
