Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | DCGF60-60-15 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Product Name: | Carbonated Filling Line | Filling Material: | Carbonated Water/beverage/juice |
|---|---|---|---|
| Suitable Bottle: | 50-110 | Driven Type:: | Electric |
| After-sales Service Provided: | Engineers | ||
| Highlight: | PET Bottled carbonated bottle filler,Neck hanging carbonated bottle filler,Neck hanging carbonated bottling equipment |
||

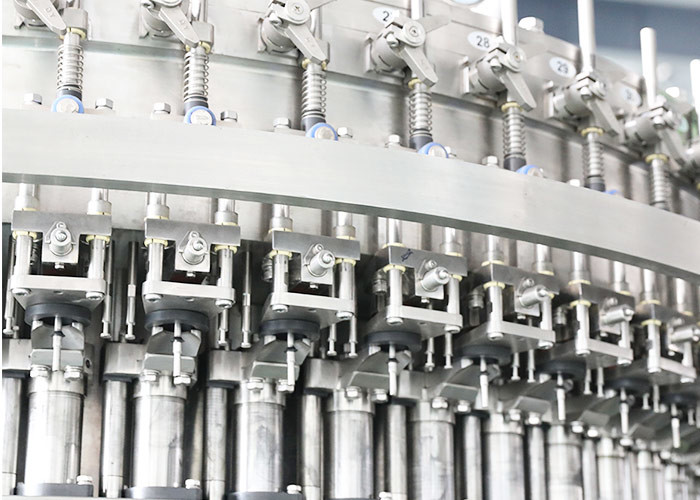

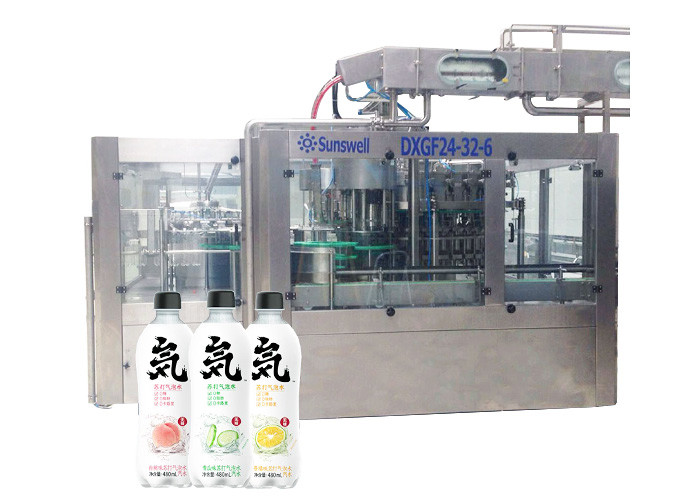

DXFG series is special for carbonated drink filling, combined with rinsing, filling and capping. It is innovated and designed in
the requirement of hot filling juice beverage technics, on the basis of introducing, digesting and absorbing advanced technology
abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.
the output can reach 30000bph for this machine
the output range is 2000-30000bph

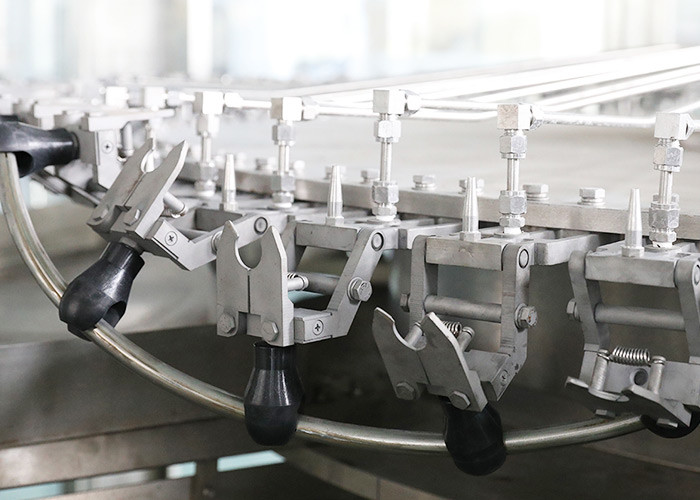

with gripper technology, very easy to change your bottle style.
| Technical Parameters: | |
| Number of Filling Valves | 24, 32, 40, 50, 60, 72, 84 |
| Filling Speed | 5, 000-40, 000BPH (500ml) |
| Type of Bottles | PET Bottles of various shapes |
| Bottle Height | 150-320(mm) |
| Bottle Diameter | φ 50-110(mm) |
| Filling Temperature | Ambient temperature |
| Filling Principle | Isobaric Filling |
| Filling Product | Carbonated soft drinks, Soda Water, Isotonic Drinks, etc. |
