Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | CGF32-32-8 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Product Name: | 3 In 1 Water Filling Machine | Application: | PET Bottles Water |
|---|---|---|---|
| Function: | 3 In 1 | Rated Capacity: | 500ml |
| Filling Method: | Gravity Filling | Dimensions: | L3380×W2580×H2700 |
| Dosing Device: | Surface Type | ||
| Highlight: | Mineral Water PET Bottle Filling Machine,500ml PET Bottle Filling Machine,5000BPH PET Bottle Filling equipment |
||
Technical parameters
| Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-6 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 |
washing, filling and | 14-12-5 | 16-16-5 | 24-24-6 | 32-32-8 | 40-40-10 | 50-50-15 |
Production capacity | 5000BPH | 7000BPH | 10000BPH | 15000BPH | 18000BPH | 21000BPH |
| Motor power(kw) | 2.2kw | 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 |

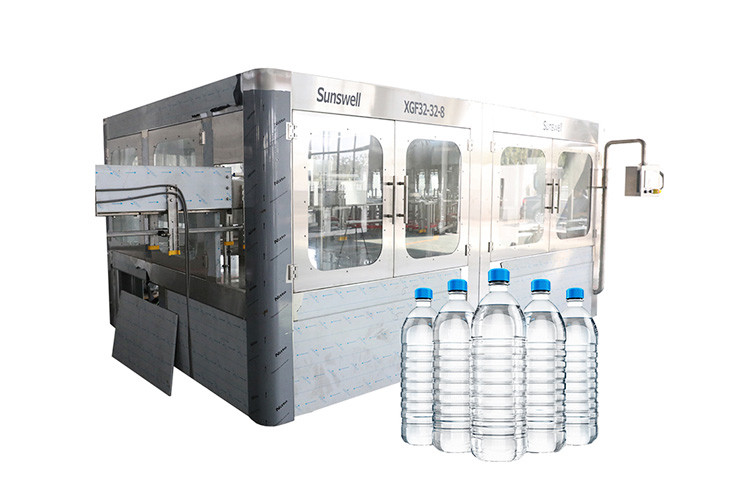

PET bottles, mineral water Gravity filling machine / line machinery, XGFH32-32-8
Model | XGFH32-32-8 |
Number of working positions | water rinser 32, filler 32, capper 8 |
Rated capacity | 15,000BPH (500ml) |

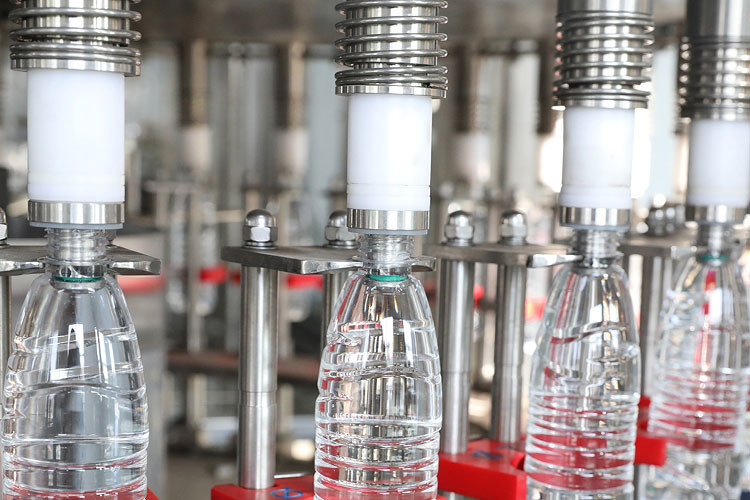

Filling method | Gravity filling |
Applicable bottle | diameter 50 – 96mm, height 165 – 310mm |
Air supply pressure | 0.7 MPa |
Air consumption | 0.8M3/min |
Rinsing water pressure | 0.2-0.25 MPa |
Rinsing water consumption | 2.4 tons/hour |
Main motor power | 4Kw |
Installed power | 5.5Kw |
Dimensions | 3380×2580×2700 (L×W×H) |
Machine weight | 6000Kg |

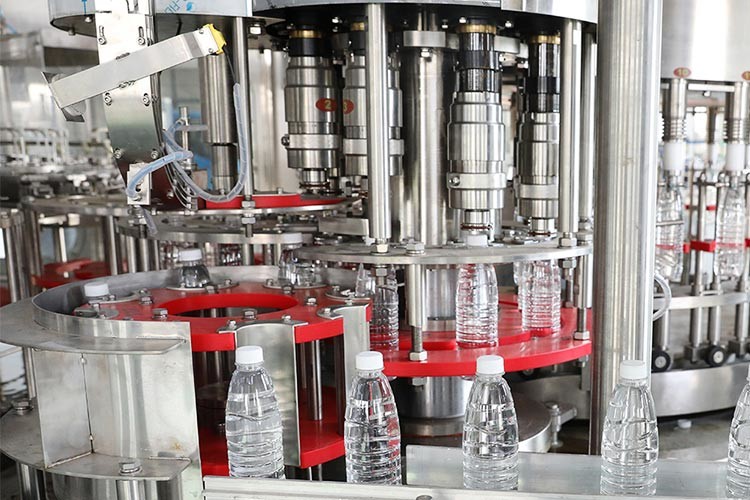

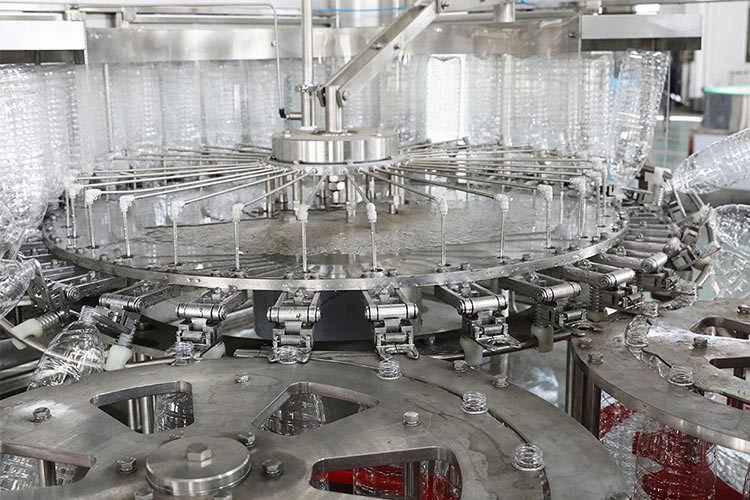

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.
