Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | CGF32-32-8 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Product Name: | 3 In 1 Water Filling Machine | Application: | PET Bottles Water |
|---|---|---|---|
| Function: | 3 In 1 | Rated Capacity: | 500ml |
| Filling Method: | Gravity Filling | Dimensions: | L3380×W2580×H2700 |
| Dosing Device: | Surface Type | ||
| Highlight: | Automatic Drink Water Bottling Machine,2000BPH Drink Water Bottling Machine,2000BPH drinking water filling equipment |
||
Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.
Suitable for: PET bottles
Filling system: gravity filling
Production capacity: 2,000BPH – 40,000BPH (500ml)
Equipment structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.

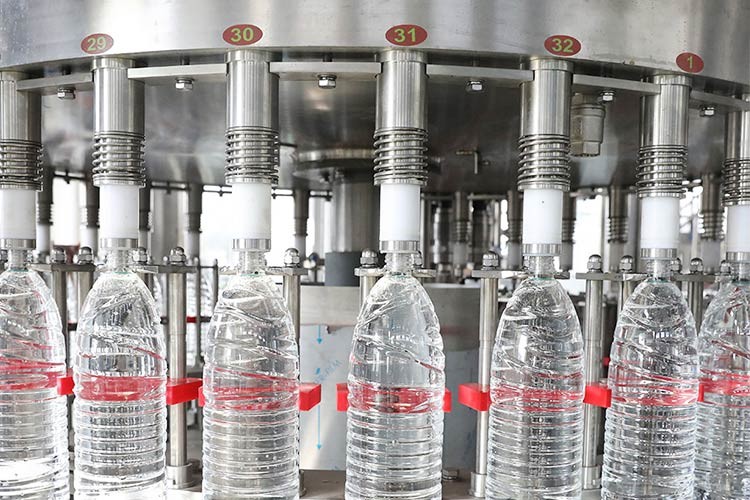

2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.

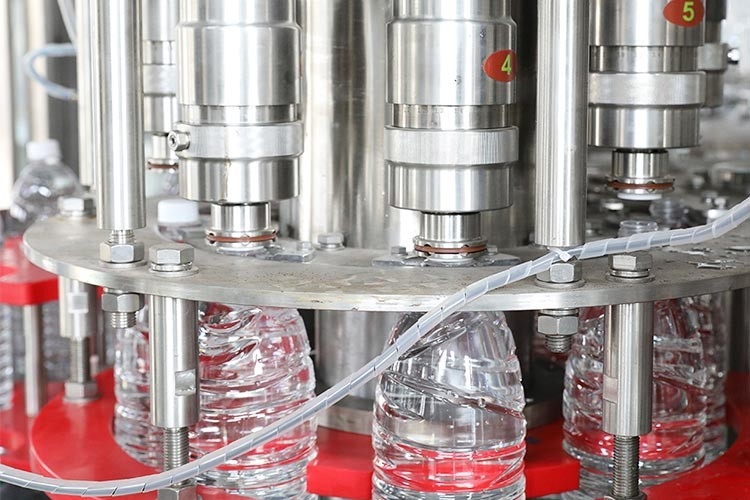

3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.

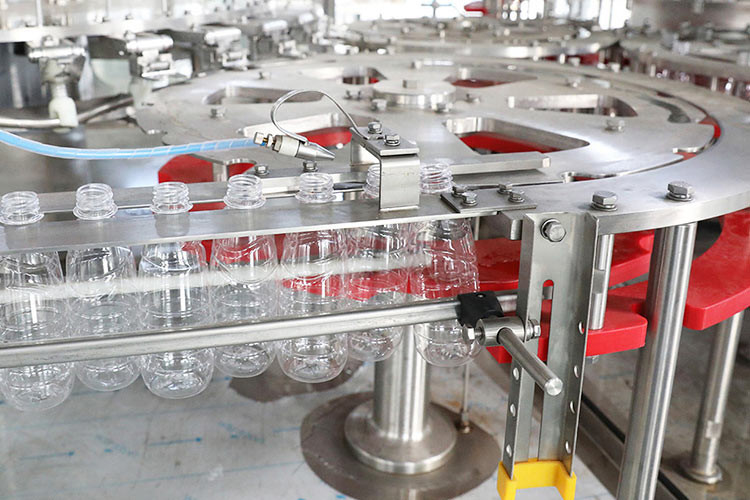

5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.

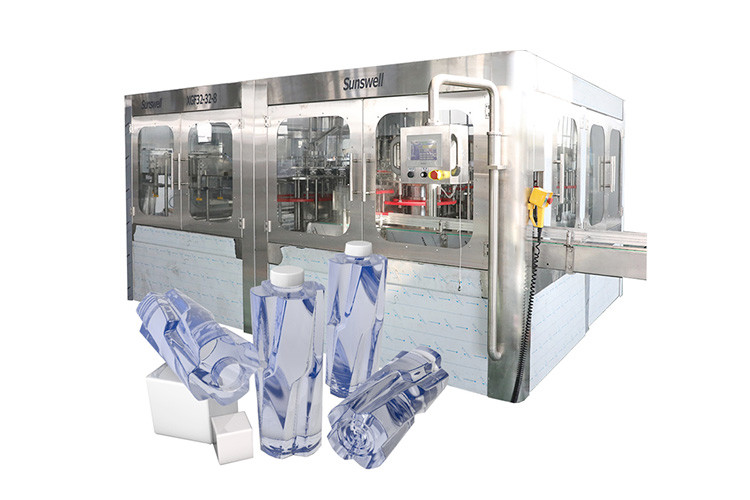

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement
of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from
Germany and Italy.
Technical parameters
| Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-6 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 |
washing, filling and | 14-12-5 | 16-16-5 | 24-24-6 | 32-32-8 | 40-40-10 | 50-50-15 |
Production capacity | 5000BPH | 7000BPH | 10000BPH | 15000BPH | 18000BPH | 21000BPH |
| Motor power(kw) | 2.2kw | 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 |
PET bottles, mineral water Gravity filling machine / line machinery, XGFH32-32-8
Model | XGFH32-32-8 |
Number of working positions | water rinser 32, filler 32, capper 8 |
Rated capacity | 15,000BPH (500ml) |
Filling method | Gravity filling |
Applicable bottle | diameter 50 – 96mm, height 165 – 310mm |
Air supply pressure | 0.7 MPa |
Air consumption | 0.8M3/min |
Rinsing water pressure | 0.2-0.25 MPa |
Rinsing water consumption | 2.4 tons/hour |
Main motor power | 4Kw |
Installed power | 5.5Kw |
Dimensions | 3380×2580×2700 (L×W×H) |
Machine weight | 6000Kg |
Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.
