Place of Origin: | China |
---|---|
Brand Name: | Sunswell |
Certification: | CE, ISO, SGS, UL |
Model Number: | CGF32-32-8 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Seaworthy Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets per year |
Product Name: | 3 In 1 Water Filling Machine | Application: | PET Bottles Water |
---|---|---|---|
Function: | 3 In 1 | Rated Capacity: | 500ml |
Filling Method: | Gravity Filling | Dimensions: | L3380×W2580×H2700 |
Dosing Device: | Surface Type | Voltage:: | 380v Customized |
Highlight: | 8 nozzles Water Filling Capping Machine,8 nozzles Mineral Water Filling Machines,UL Water Filling Capping Machine |

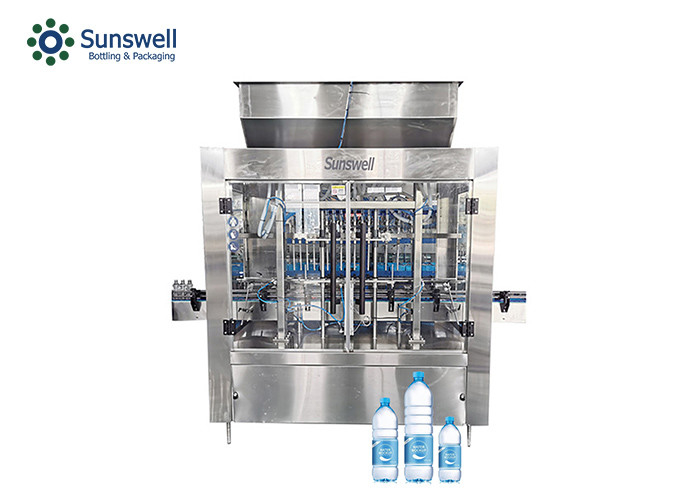

Automatic Linear Mineral Water Bottle Filling Capping Machine Production Line
We have been focusing on the researches and developments, since they are our key of enterprise innovation. They make us better doing in production, technical services and marketing sales.
We supply our machines Mainly to South East Asia, Middle East, Africa and South America and South East,more than 40 countries.
This Drink water Bottle Filling Machine / equipment / production line used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Specifications:
Nozzle number
|
8
|
Filling volume
|
500-4000ml
|
capacity
|
2000-2400 bottles/h (for 1000ml)
|
Filling precision
|
+-2-3g for 1000ml (200-1000ml )
|
Power
|
3kw |
Voltage
|
AC220V /380V 3Phase |
Gas supply
|
0.55-0.8Mpa
|
Air consumption
|
0.8m3/min |
labeling driven
|
servo motor driven
|
|||
direction
|
right/left
|
|||
labeling speed
|
80~200pcs/minute
|
|||
label size
|
width:15~220mm length:15~300mm
|
|||
precision
|
+ 1mm
|
|||
label roll
|
Max:Φ300mm
|
|||
label core
|
Stander:Φ75mm
|
|||
maching size
|
2500X1300X1500mm
|
|||
weight
|
280kg
|
