Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Seaworthy wooden cases plus wrapping film |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
|---|---|---|---|
| Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
| Filling Principle: | Gravity Filling | Filling Accuracy: | ±5% |
| Material: | SUS 304/316L | ||
| Highlight: | 5 Gallon drum filling equipment,20L drum filling equipment,2000BPH drum filling line |
||

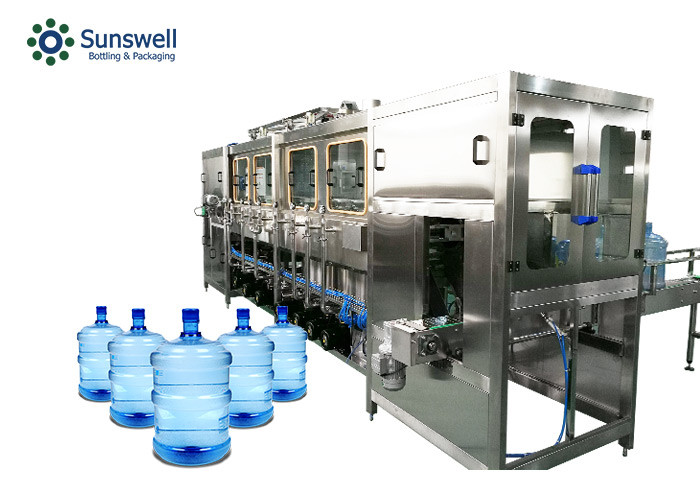

19L 20Liters Bottle Mineral Water 5 Gallon Drum Filling Machine
Washing-filling-capping machine is the core equipment especially for 5 gallon filling line, which is the ideal equipment for producing mineral water, pure water and still water. It is made of quality stainless steel, anti-corrosion and easy to clean.
The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.

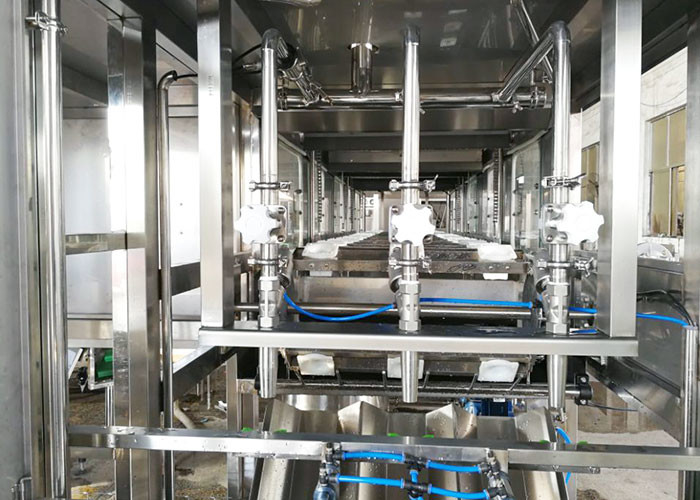

1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
CE/ISO new design 5 gallon bottled water machines/filling machine
| Main technical data | |||||||
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
