Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | SUNSWELL |
| Certification: | CE, ISO |
| Model Number: | XGF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Seaworthy wooden cases plus wrapping film |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, LC,WESTERN UNION |
| Supply Ability: | 100 sets per year |
| Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
|---|---|---|---|
| Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
| Filling Principle: | Gravity Filling | Material: | SUS 304/316L |
| Highlight: | PLC 5 Gallon Water Filling Machine,SUS304 5 Gallon Water Filling Machine,SUS304 Bucket Bottle Filling Line |
||

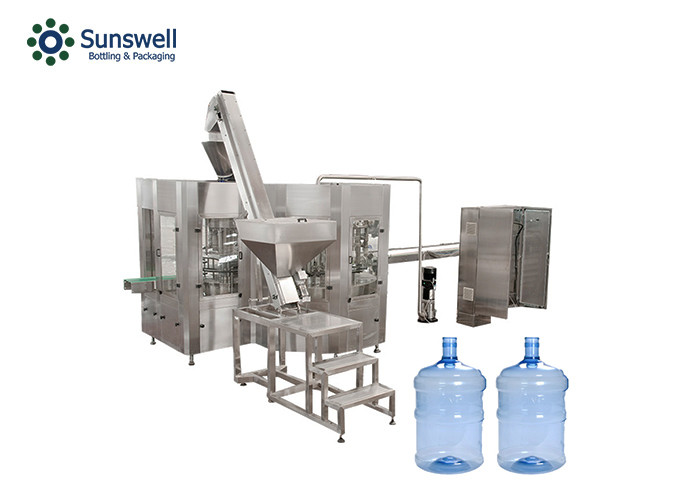

High Efficiency Automatic 5 Gallon Bucket Bottle Filling Line/System/Machine
This machine is the use for 5 gallon 20L bottle water washing-filling-capping. It's automatic 5 gallon bottle washing, filling and capping machine. The washing machine with high pressure water pump, it can wash the bottle clean.
1) It is ideal equipment for producing mineral water, super-pure water,space water and distilled water.
2) Advanced PLC control system
3) The key parts are imported and their quality is reliable.
4) Barreled water production line machine is made of stainless steel.
5) Its structure is reasonable and its operation is convenient.
6) Easy cleaning and corrosion.
Specifications:
| Main technical data | |||||||
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
