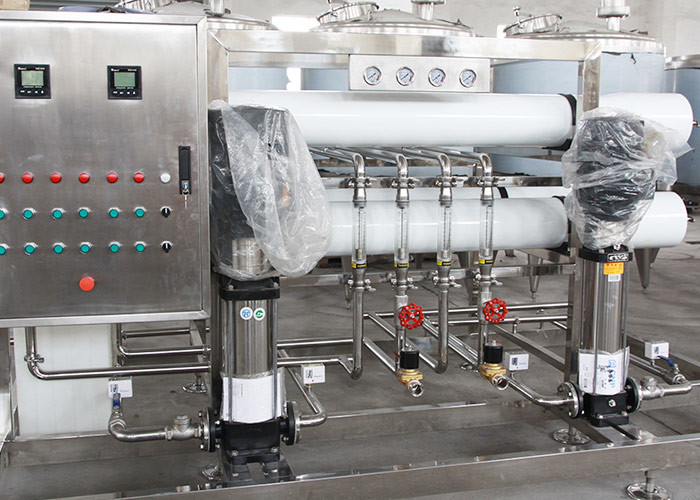

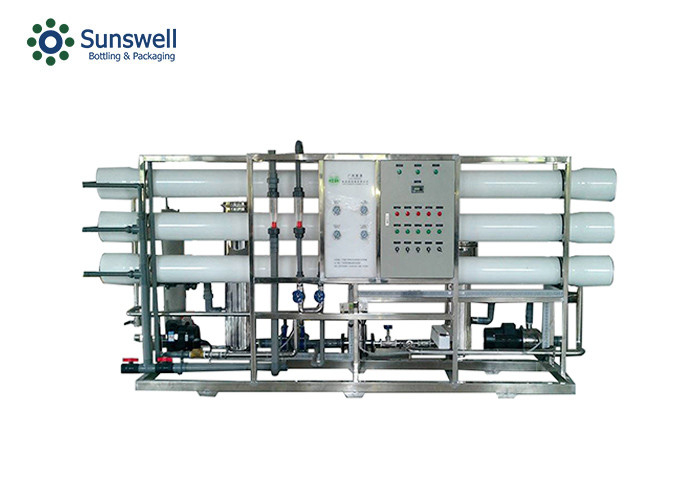

15t/h RO Water Treatment Systeam Hot Sale Pure Water Treatment
RO system is widely used in preparation of water for beverage industry, which features adaptable of different
salt content of water, easy operation, less labor force and low running cost.
Main Equipments Description
Raw Water Pump 1 set
Model: 4-50
Brand: Nanfang Pump
Quartz sand filter 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Active carbon filter 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Sodium ion exchanger 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Precision filter 1 set
The filter medium of the precise filter is made of micro-hole film, it is the modern advanced equipment for the
filter and widely used in medicine, electrical, food industries.
Working pressure: ≤0.3Mpa
Production capacity: 4T/h
Overall dimensions: D400×H1000 (mm)
Material: SUS304
Reverse osmosis 1 set
Capacity: 2T/H, 8 sets 4040 (Hydranautics)
One stage reverse osmosis
Pump: CDLF4-16 (Nanfang)
Ultraviolet radiation sterilizer 1 set
Working pressure≤0.2 Mpa
Treatment Capacity 2T/H
Overall dimensions: 116×75×65mm
Ozone generator 1 set
Capacity: 7g
Overall dimensions: 400×320×600mm
Material: Carbon Steel
Gas-liquid mixing pump 1 set
Model: 25QY-2
Brand: Nanfang Pump
Pure water tank
Raw Water Tank
Material: SUS304
Volume: 2m3
Specifications
| MODEL | DBC10000 |
| (L/hr) RATED CAPACITY | 10000 |
| (20℃)GAS MULTIPLES | ≥2.5V/V |
| ADJUSTMENT RATIO | 1:3--1:6 |
| MIXED PRECISION | ≤2% |
| (Mpa) INLET PRESSURE OF CARBON DIOXIDE | 0.6-1.0 |
| (Nm3/hr) Theoretical consumption of carbon dioxide | 8(1.0Mpa 0℃) |
| Inlet diameter of carbon dioxide | 1/2” |
| (Mpa) inlet pressure of compressed air | 0.5-0.8 |
| (Nm3/hr) Compressed air consumption | 0.5(0.5-0.8Mpa) |
| Compressed air inlet diameter | 1/2” |
| (L/hr) Treatment water supply | ≥12000 |
| (℃) Processing water temperature | ≤20 |
| (Mpa) inlet pressure of treated water | 0.15-0.25 |
| inlet diameter of treated water | DN50 |
| (L/hr) Processing syrup supply | ≥3000 |
| (℃) Processing syrup temperature | ≤20 |
| (Mpa) Processing syrup inlet pressure | 0.15-0.25 |
| inlet diameter of Processing syrup | DN32 |
| (Mpa) Material outlet pressure | ≤0.65 |
| (℃) Material outlet temperature | ≤5-6 |
| Material outlet diameter | DN50 |
| (L/hr) Refrigerant circulation | 60000 |
| (℃) Refrigerant inlet pressure | -3 |
| (Mpa) Refrigerant inlet pressure | 0.2-0.25 |
| Refrigerant inlet outlet diameter | DN100 |
| (KW)Heat transfer | 350 |
| (380V 50Hz)power | 16 |
| Dimension | 3265X2100X3500 |
| (Kg) weight | 4500 |
