Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE,ISO,SGS |
| Model Number: | MB-150 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 9000 per unit |
| Packaging Details: | Standard export wooden case with film arround |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 units per year |
| Condition: | New | Automatic Grade: | Fully-Automatic |
|---|---|---|---|
| Certification: | ISO,CE | Usage: | Pack The Product With Shrinking Film |
| Packing Speed: | 30-40packs/min | Packing Material: | PVC POF PP PE |
| Type: | Wrapping Machine | Application: | Food,Beverage,Commodity,Chemical,Medical |
| Warranty: | 2 Year | Dimension(l*w*h): | (L)2400x(W)1200x(H)1800mm |
| Highlight: | POF heat shrink packing machine,POF thermal shrink packaging machine,Wrapping heat shrink packaging equipment |
||

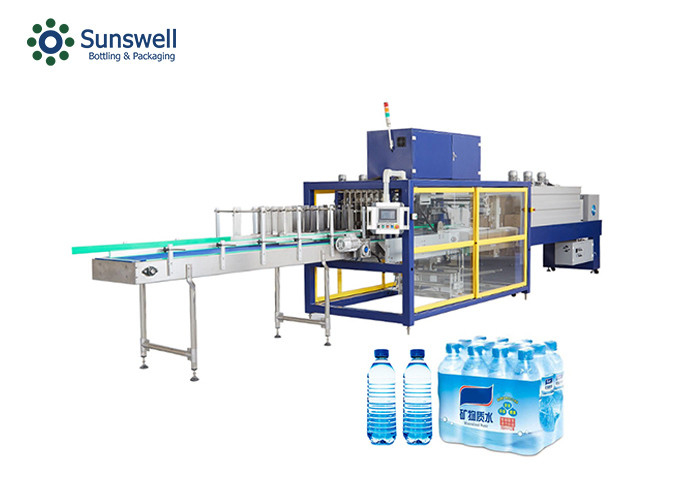

High Performance shrinking wrapping packing machine plastic bottle heat shrink packing machine

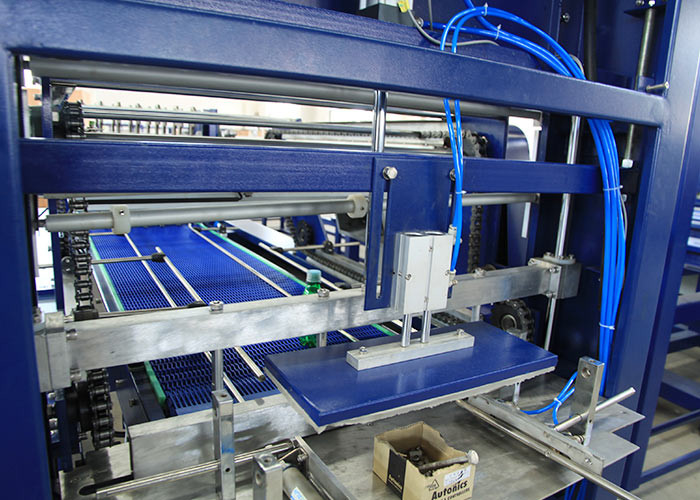

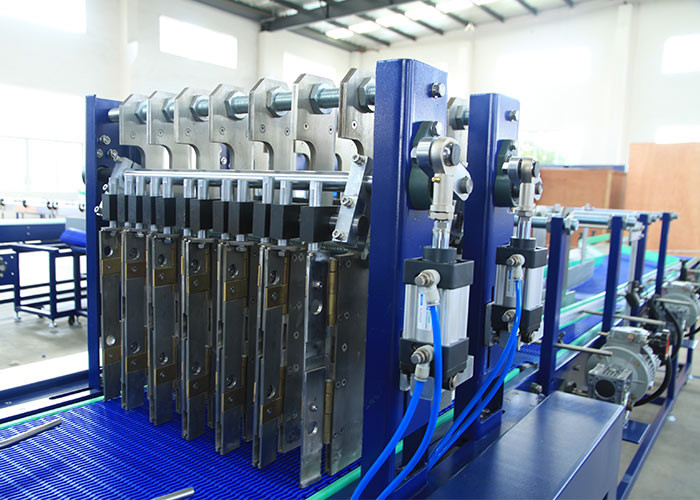

Equipped servo motor control system, bottle-feeding, film feeding, film cutting and film wrapping are accurate, synchronous, stable and reliable.
LCD touch-screen panel has a user-friendly interface and it is rapid for parameter setting and convenient for human-machine communication, operation and control.
Shrink tunnel uses unique air circulation system,smooth conveyor belts,providing long lasting service.
Designed for bulk packaging of beer, fruit juice, mineral water, dairy,condiment; all sorts of drinks and beverages with or without bottom support.
| Model | SSW |
| Machine Dimension | L16390mm*W1800mm*H2500mm |
| Shrinkage Tunnel Dimension | L2500mm*W700mm*H450mm |
| Max Package Dimension | L460mm*W280mm*H345mm |
| Packing Speed | 30pcs/min |
| Transfer Belt Width | 686mm |
| Work Voltage/Power | 3Phase5Line 380V 60Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 80NL/min-100NL/min |
| Total Weight | 5200KG |
