Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE,ISO,SGS |
| Model Number: | MB-150 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 9000 per unit |
| Packaging Details: | Standard export wooden case with film arround |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 units per year |
| Condition: | New | Automatic Grade: | Fully-Automatic |
|---|---|---|---|
| Certification: | ISO,CE | Usage: | Pack The Product With Shrinking Film |
| Packing Speed: | 30-40packs/min | Packing Material: | PVC POF PP PE |
| Type: | Wrapping Machine | Application: | Food,Beverage,Commodity,Chemical,Medical |
| Warranty: | 2 Year | Dimension(l*w*h): | (L)2400x(W)1200x(H)1800mm |
| Highlight: | PE film water bottle wrapping machine,Half Tray plastic bottle wrapping machine,Half Tray water bottle wrapping machine |
||

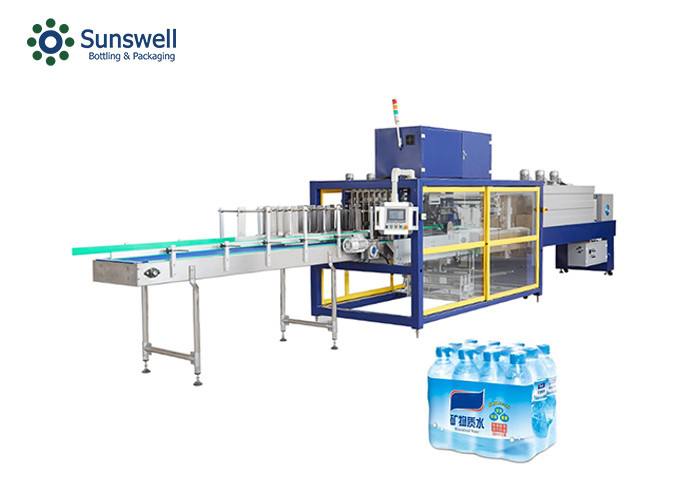

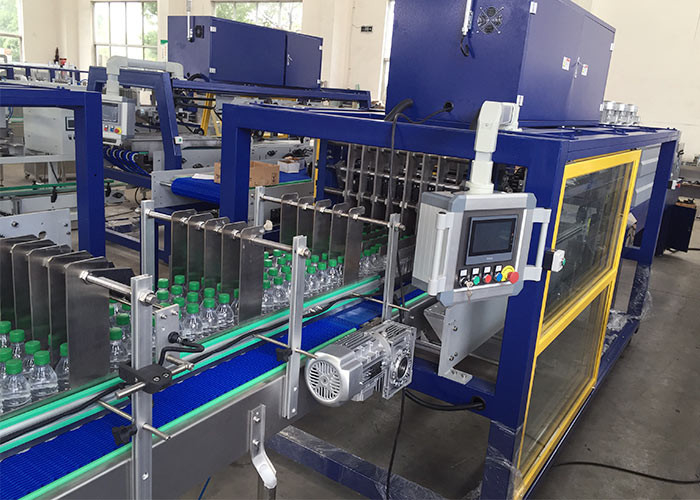

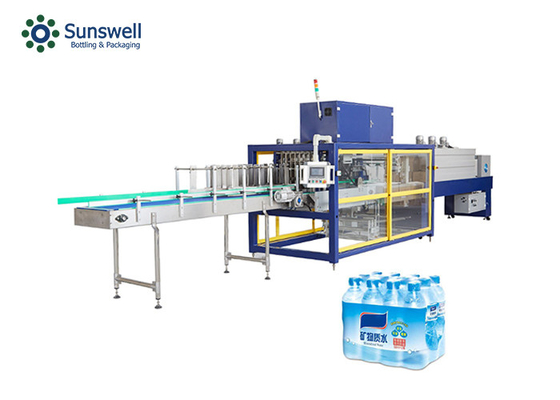

Automatic Half Tray Shrink PE film Wrapping Machine For liquid Beverage Bottle/can packaging Machine
Pet bottle PE film heat tunnel shrink packing wrapping machine
adopts top brand cylinder in order to work stably when it pushing and sealing

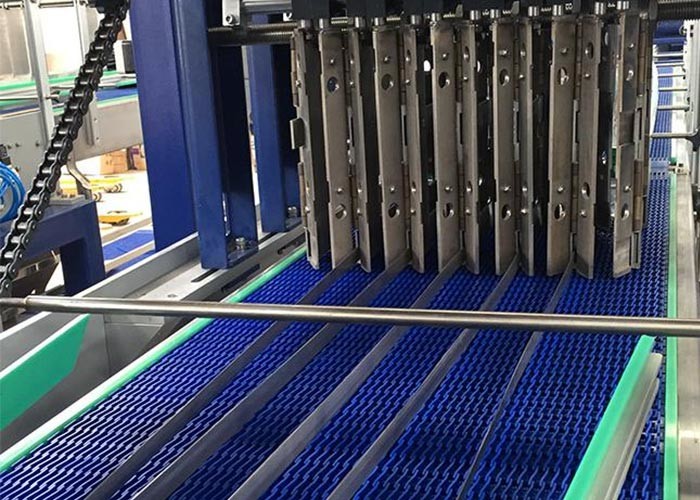

Special design of the sealing blade makes sealing line deep-set, and avoids the film sticking the cutter
Covert cylinder enhances the convenience for the operator; pressuring device ensures the product without dithering, even the light ones
Adjustable front feeding frame ensure packing different shape products perfectly
Adopts solid steel roller with durable silicone pipe, chain conveying
The speed of the conveyor is controlled by frequency inverter
It uses PE film, easy to operate, just push a button by hand to make the sealing automatic
| Model | SSW |
| Machine Dimension | L16390mm*W1800mm*H2500mm |
| Shrinkage Tunnel Dimension | L2500mm*W700mm*H450mm |
| Max Package Dimension | L460mm*W280mm*H345mm |
| Packing Speed | 30pcs/min |
| Transfer Belt Width | 686mm |
| Work Voltage/Power | 3Phase5Line 380V 60Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 80NL/min-100NL/min |
| Total Weight | 5200KG |
