Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE,ISO,SGS |
| Model Number: | MB-150 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 9000 per unit |
| Packaging Details: | Standard export wooden case with film arround |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 units per year |
| Condition: | New | Automatic Grade: | Fully-Automatic |
|---|---|---|---|
| Certification: | ISO,CE | Usage: | Pack The Product With Shrinking Film |
| Packing Speed: | 30-40packs/min | Packing Material: | PVC POF PP PE |
| Type: | Wrapping Machine | Application: | Food,Beverage,Commodity,Chemical,Medical |
| Warranty: | 2 Year | Dimension(l*w*h): | (L)2400x(W)1200x(H)1800mm |
| Highlight: | PP bottles automatic shrink wrapper,POF Film automatic shrink wrapper,Beverage bottle auto shrink wrapper |
||
Automatic shrink wrapper with sticker application for PP baby bottles of our production

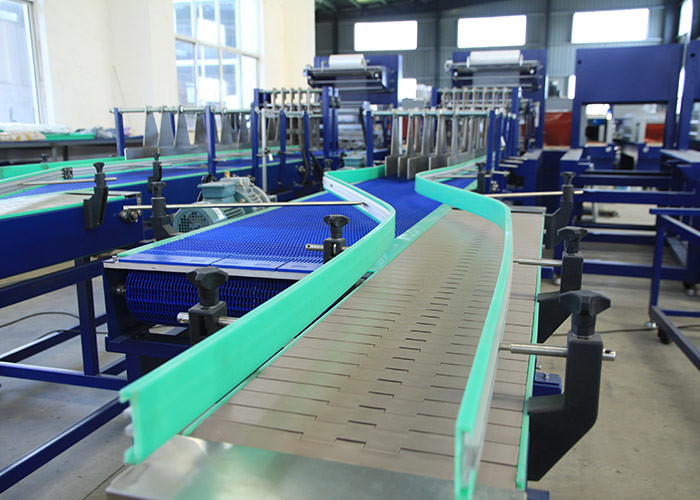

Beverage bottle from the bottle conveying with input and shunt in the bottle into a plurality of rows of travel, through the door opening and closing mechanism will bottle group, catch the bottle rod will be a good group of bottle to wrap film belt, and film feeding servo began to send film, film feeding after the completion of the hob film cutting, by around the membrane device will film according to the certain way around the bottle. Then the bottle into the oven, shrink packaging material softening after heating, and close to the bottle, the bottle will complete the cooling fan group wrapped, so the packaging process
| Model | SSW |
| Machine Dimension | L16390mm*W1800mm*H2500mm |
| Shrinkage Tunnel Dimension | L2500mm*W700mm*H450mm |
| Max Package Dimension | L460mm*W280mm*H345mm |
| Packing Speed | 30pcs/min |
| Transfer Belt Width | 686mm |
| Work Voltage/Power | 3Phase5Line 380V 60Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 80NL/min-100NL/min |
| Total Weight | 5200KG |
