Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE,ISO,SGS |
| Model Number: | MB-150 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 9000 per unit |
| Packaging Details: | Standard export wooden case with film arround |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 units per year |
| Condition: | New | Automatic Grade: | Fully-Automatic |
|---|---|---|---|
| Certification: | ISO,CE | Usage: | Pack The Product With Shrinking Film |
| Packing Speed: | 30-40packs/min | Packing Material: | PVC POF PP PE |
| Type: | Wrapping Machine | Application: | Food,Beverage,Commodity,Chemical,Medical |
| Warranty: | 2 Year | Dimension(l*w*h): | (L)2400x(W)1200x(H)1800mm |
| Highlight: | drop down carton case packer,30packs/min carton case packer,Wrapping Machine case packers cartoners |
||

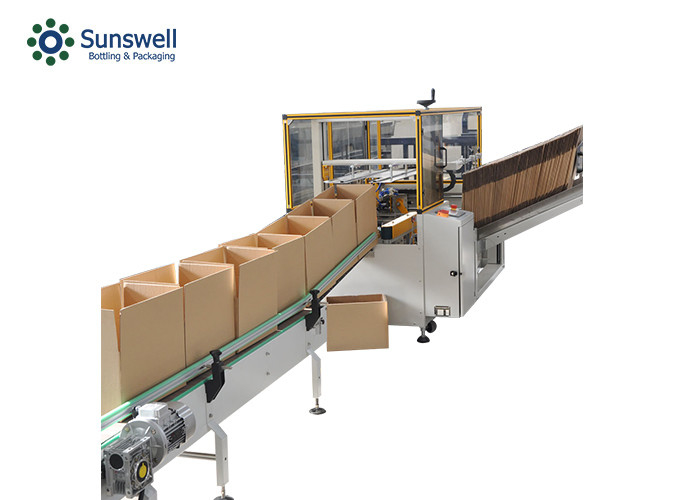

Automatic drop down Carton Box Packer for beverage water bottles
Automatic Case Packer / Case Erector / Carton box Packing machine with factory pricebasic description
1) Using painted steel and lexan ® plastic safety shield,Meet CE criteria .
2) Mechanical parts chrome steel, stainless steel, aluminum and corrosion.
3) Main drive adopts adjustable speed reducer, variable speed, auto correct feature.
4) Bottle feeding feeding conveyor chain plate made of a ploymer material consisting of a low coefficient of friction ,continous feed bottles, lane guide.
5) For Product location for automatic speed adjustment and all the bottle detection.
6) The detection of inverted bottle and lack of bottle in the enter bottle place ,alarm for shortage of box .
7) main electric cabinet on the machine.
8) Schneider low voltage control system
9) AIRTAC pneumatic components
10) Autonics photoelectric control system
11) Siemens PLC process controller with the console, and a color LCD touch screen ,directly modify the machine parameters
| oversize(L/W/H) | 4500/800/2050(mm) |
| total installed capacity | 3KW |
| Main Power | AC3-380V/50HZ+G+E |
| optimal working temperature | -10℃~40℃ |
| Auxiliary power supply | 24VDC |
| pressure of compressed air | 0.4~0.6Mpa |
| Consumption of compressed air | 1500L/Min |
| weight | 1000KG |
